Transponder

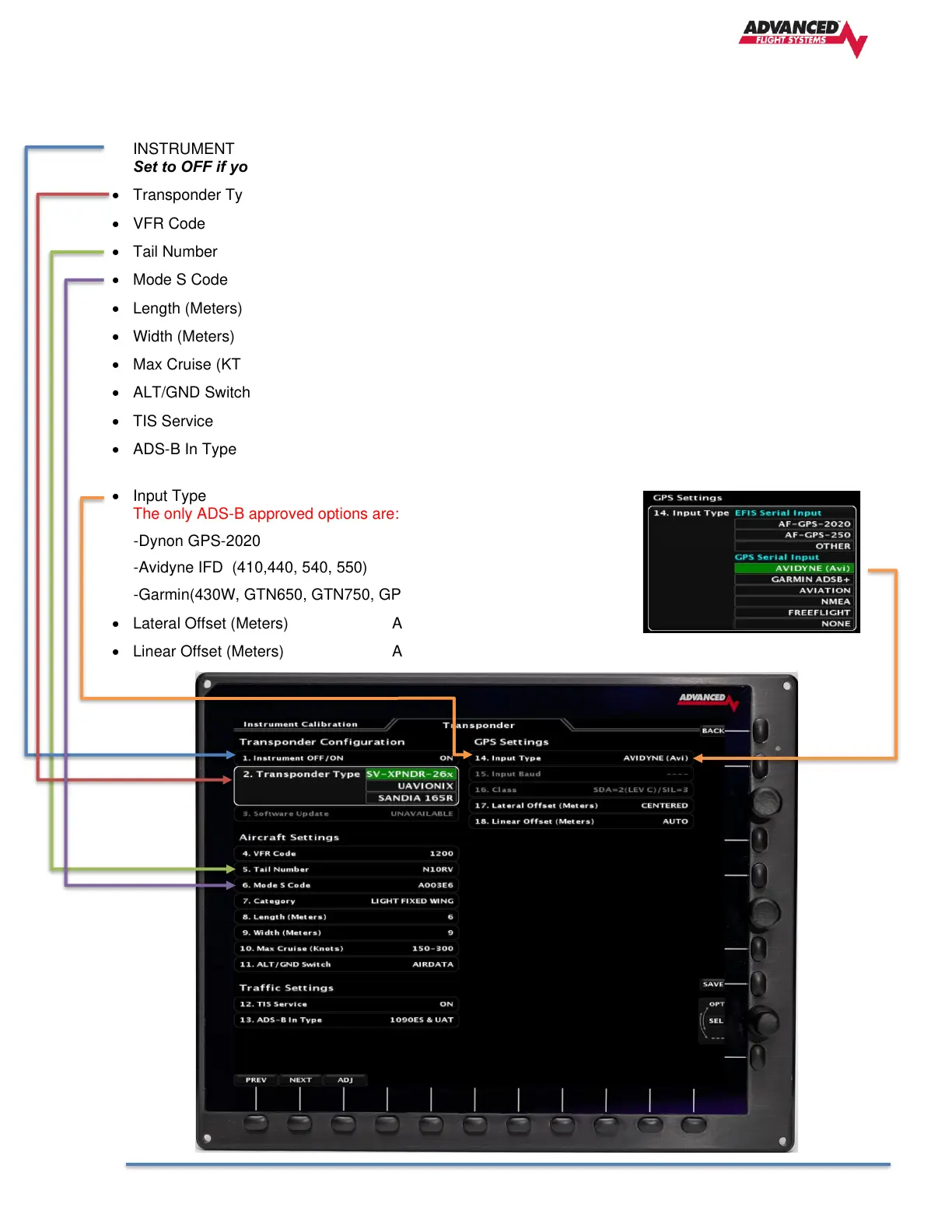

The EFIS can display and control a remote Transponder. The following Transponders are supported from
the EFIS: Dynon/Trig SV-XPNDR-261, UAVIONIX TailbeaconX, Sandia 165R.
• INSTRUMENT OFF/ON Turns ON or OFF the EFIS Transponder display tab
Set to OFF if you don’t have a supported Transponder
• Transponder Type Select the Transponder to Control
• VFR Code North America 1200
• Tail Number Aircraft N Number in the USA
• Mode S Code Automatically set for N Number registered aircraft
• Length (Meters) Aircraft Length for ADS-b
• Width (Meters) Aircraft Width for ADS-b
• Max Cruise (KTS) Max ADS-B cruise speed range
• ALT/GND Switch Controls ground / flight mode - set to AIRDATA
• TIS Service Controls Transponder TIS Traffic - set to ON
• ADS-B In Type Type of ADS-B receiver – set to 1090ES & UAT for Dynon 472
• Input Type Transponder ADS-B GPS source
The only ADS-B approved options are:
-Dynon GPS-2020 AF-GPS-2020
-Avidyne IFD (410,440, 540, 550) AVIDYNE (AVI)
-Garmin(430W, GTN650, GTN750, GPS175) GARMIN ADSB+
• Lateral Offset (Meters) Antenna Lateral Offset
• Linear Offset (Meters) Antenna Linear Offset
