Advanced AF-6600 - Coolant Temp

Version 16.10 AF-6600 AF-5000 Series Install Manual 215
Coolant Temp

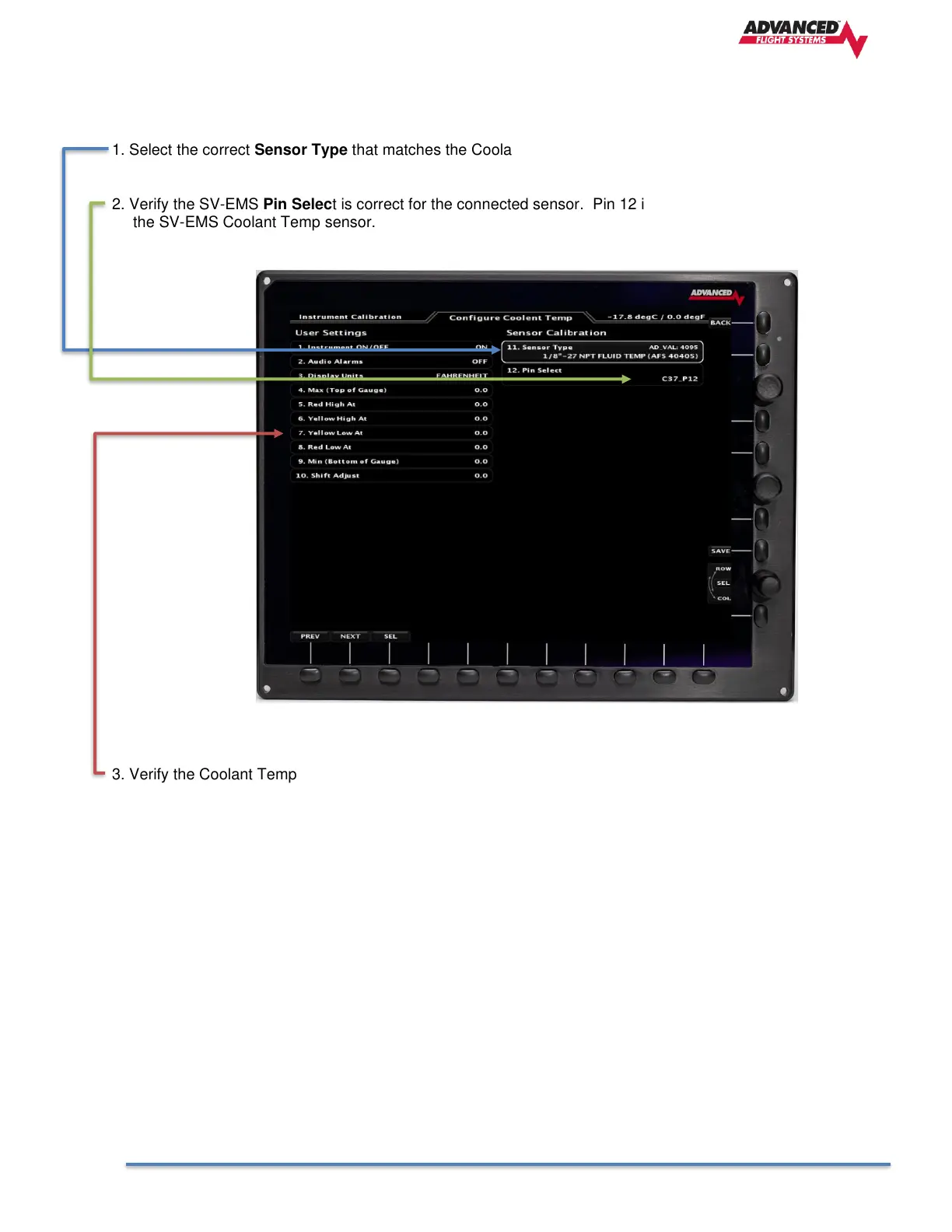

1. Select the correct Sensor Type that matches the Coolant Temp sensor installed on the engine.
2. Verify the SV-EMS Pin Select is correct for the connected sensor. Pin 12 is the standard connection for
the SV-EMS Coolant Temp sensor.
3. Verify the Coolant Temperature gauge display ranges match your engine manufacturers
recommendations.
