Engine Sensors
Manifold Air Pressure
The current Dynon SV-EMS sensor kit comes with the MANIFOLD 45 TURBO (AFS 41401) sensor. This
sensor is designed to work with normally aspirated Lycoming or Continental engines. This sensor can also
be used on Turbo Charged engine with boost to 45 in-mg.

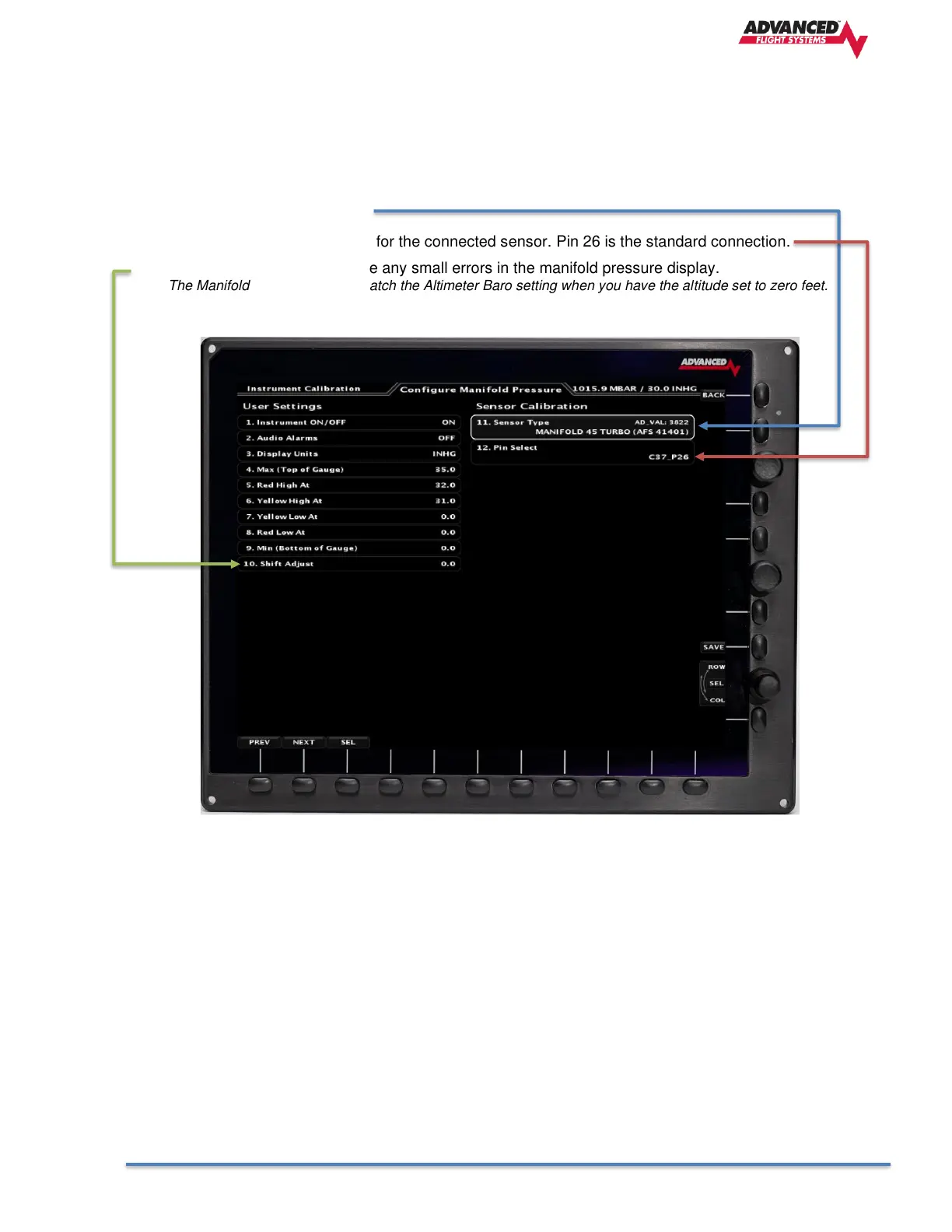

• Select Installed Sensor Type
• Verify the SV-EMS Pin Select for the connected sensor. Pin 26 is the standard connection.
• Use the Shift Adjust to remove any small errors in the manifold pressure display.
The Manifold Pressure should match the Altimeter Baro setting when you have the altitude set to zero feet.
