Version 16.10 AF-6600 AF-5000 Series Install Manual 182
Airspeed

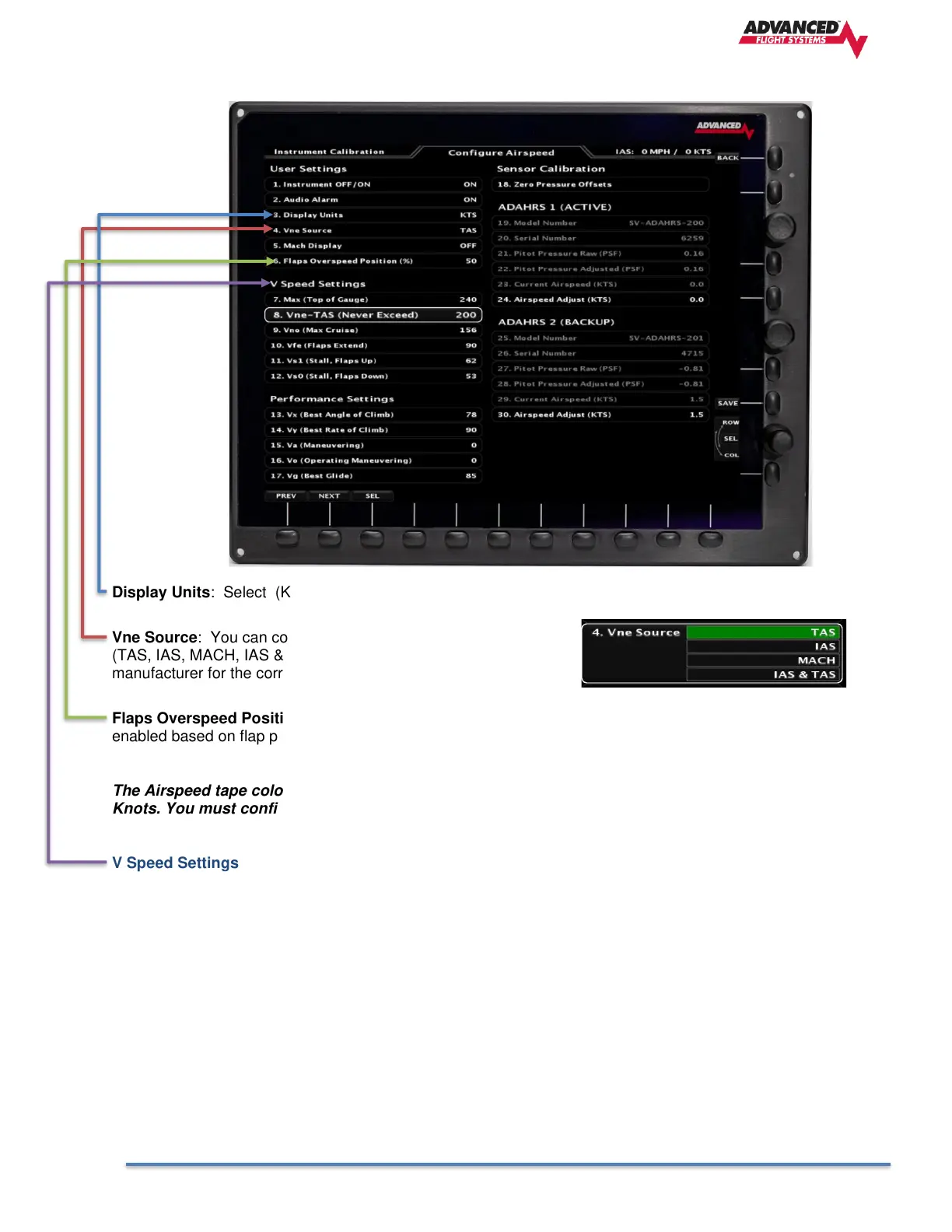

Display Units: Select (KTS, MPH, KPH)
Vne Source: You can configure the Vne warning to be based on
(TAS, IAS, MACH, IAS & TAS) Check with your airframe
manufacturer for the correct setting.
Flaps Overspeed Position (%): Lets you select when the audio “Flaps Overspeed” warning airspeed is
enabled based on flap position.
The Airspeed tape color range settings should be adjusted for your aircraft. All the speeds are in
Knots. You must configure these settings on each EFIS Screen in the aircraft.
V Speed Settings
Max: Top of the gauge Should be set to 240 KTS unless you have the special order high speed sensors.
Vne: Never Exceed Speed This is where the Red arc starts.
Vno: Normal Operation, This is the top of the green arc, bottom of the yellow.
Vfe: Flap Extend Speed, Top of the white arc.
Vs1: Stall Speed with the Flaps up.
Vs0: Stall Speed with the Flaps Down.
