Cylinder Head Temp (CHT)

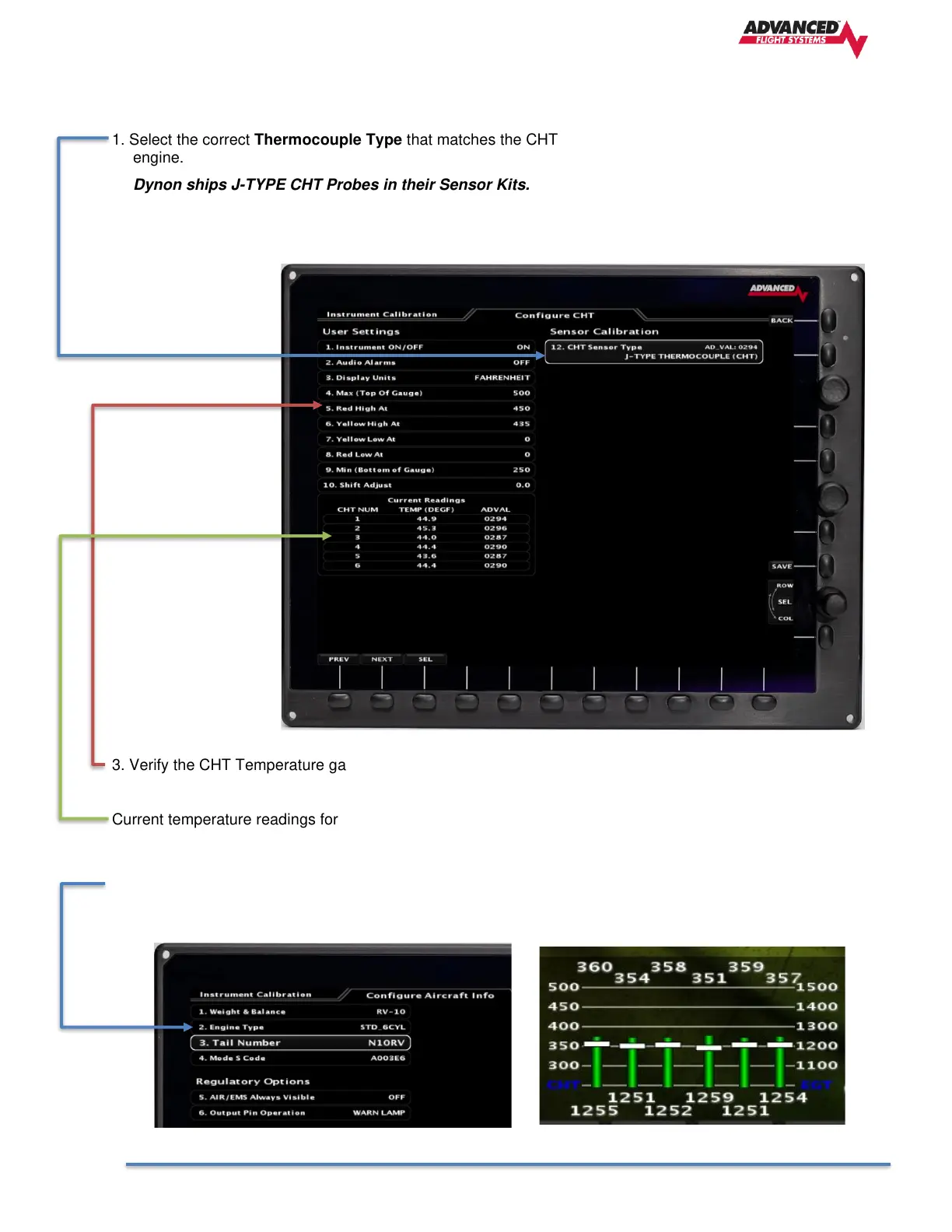

1. Select the correct Thermocouple Type that matches the CHT temperature transducer installed on the
engine.
Dynon ships J-TYPE CHT Probes in their Sensor Kits.
3. Verify the CHT Temperature gauge display ranges match your engine manufacturers recommendations.
Current temperature readings for each connected CHT probe.
The number of cylinders displayed is controlled by the Engine Type setting in the Configure Aircraft Info.
