Version 16.10 AF-6600 AF-5000 Series Install Manual 141
Rotax Oil Pressure
In late 2012, Rotax further switched to a new oil pressure sensor (Rotax P/N 456180). It is functionally
identical to the previous Honeywell (Rotax P/N 956413) sensor, and connects in the same fashion as it.
However, the connector and wiring for the sensor that Rotax includes with the engine may require some

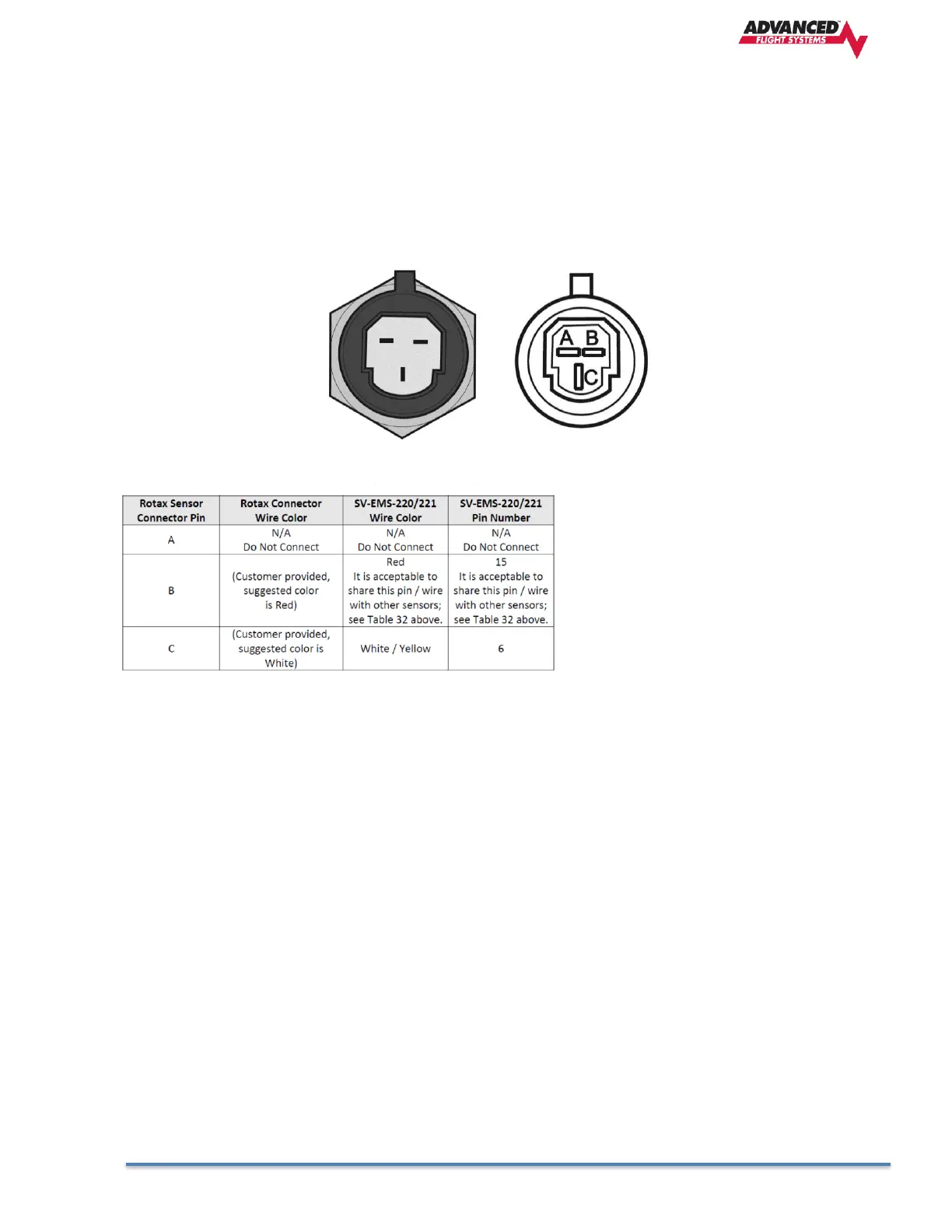

assembly. See the diagram below for the pinout of the connector. Connect the wire connected to
sensor pin B of the sensor to SV-EMS-220/221 D37 pin 15 (+12 Volts Auxiliary), the wire connected to sensor
pin C to SV-EMS-220/221 D37 pin 6. Sensor pin A need not be connected at all. Select the correct sensor
type as described in the EMS Sensor Definitions, Mapping, and Settings Section.
