Advanced AF-6600 - Advanced SV Network Wiring

Version 16.10 AF-6600 AF-5000 Series Install Manual 227
EFIS EXPANSION CONNECTOR
Advanced SV Network (SV-NET)
Pin
Pin Name
I/O
Color
Advanced Network
DB-9 Male Pin
1
+8V DC (350mA max)
OUT
ORN
2
SERIAL #4 - TX
OUT
3
Network Ground 1
OUT
BLK
2
4
Network Data 2A
IN/OUT
GRN/WHT
8
5
Network Ground 2
OUT
WHT/BLK
3
6
BACKUP/KEEPALIVE
IN
7
Network Data 1A
OUT
GRN
1
8
Network Power #1
OUT
RED
7
9
Ground
OUT
10
SERIAL #4 - RX
IN
11
Network Data 2B
IN/OUT
BLU/WHT
4
12
Network Power #2
OUT
RED/WHT
9
13
VOLTS #2 MONITOR
IN
14
Network Data 1B
IN/OUT
BLU
6
15
BACKUP GROUND
IN

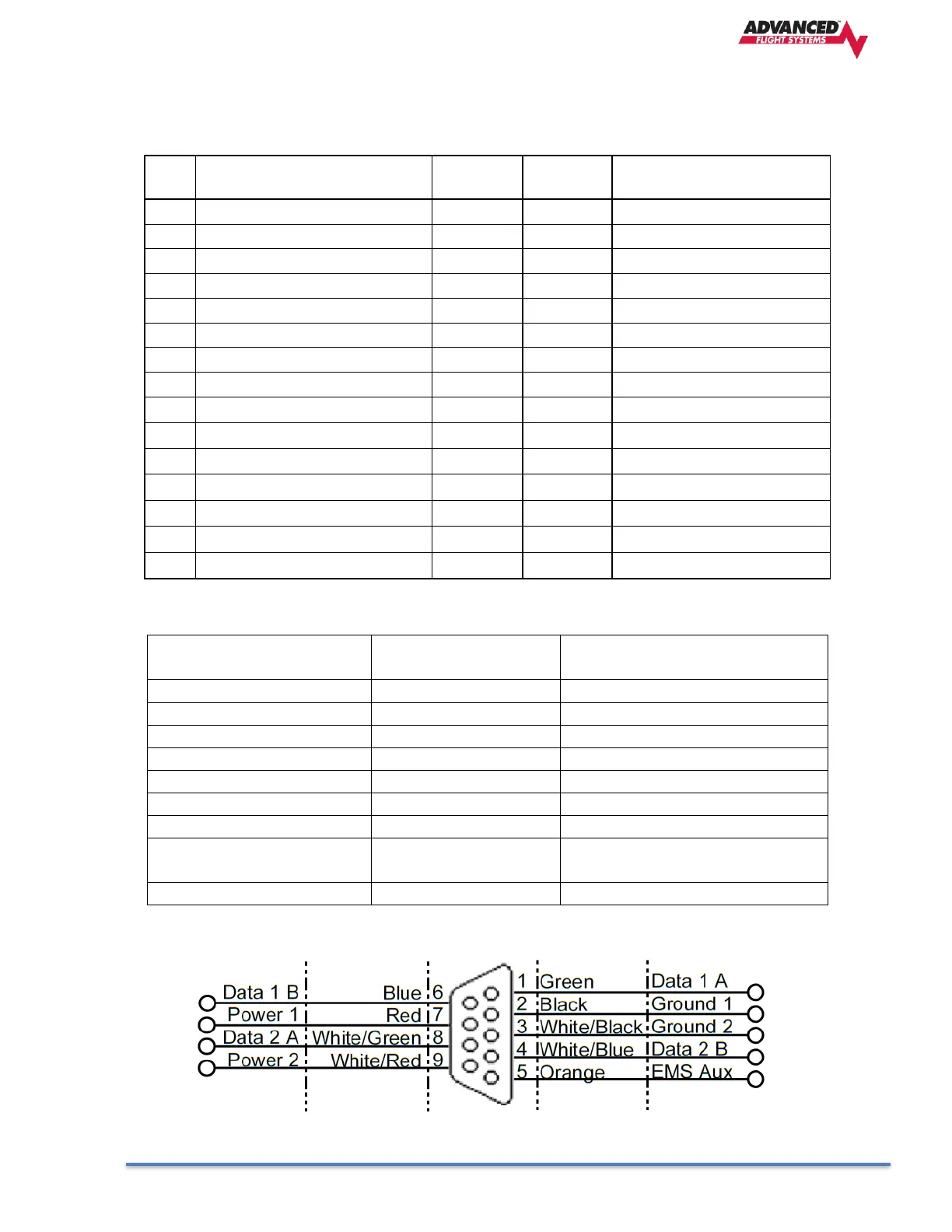

Advanced SV Network Wiring
Advanced-SV Network
Female D9 Pin
Advanced-SV Network
Cable Wire Color
Description
1
Green
Network Data 1 A
2
Black
Network Ground 1
3
White with Black Stripe
Network Ground 2
4
White with Blue Stripe
Network Data 2 B
5
Orange
EMS Auxiliary Voltage
6
Blue
Network Data 1 B
7
Red
Network Power 1
8
White with Green
stripe
Network Data 2 A
9
White with Red stripe
Network Power 2
Network Female D9 Pin Insertion View (Rear)
