Fuel Pressure

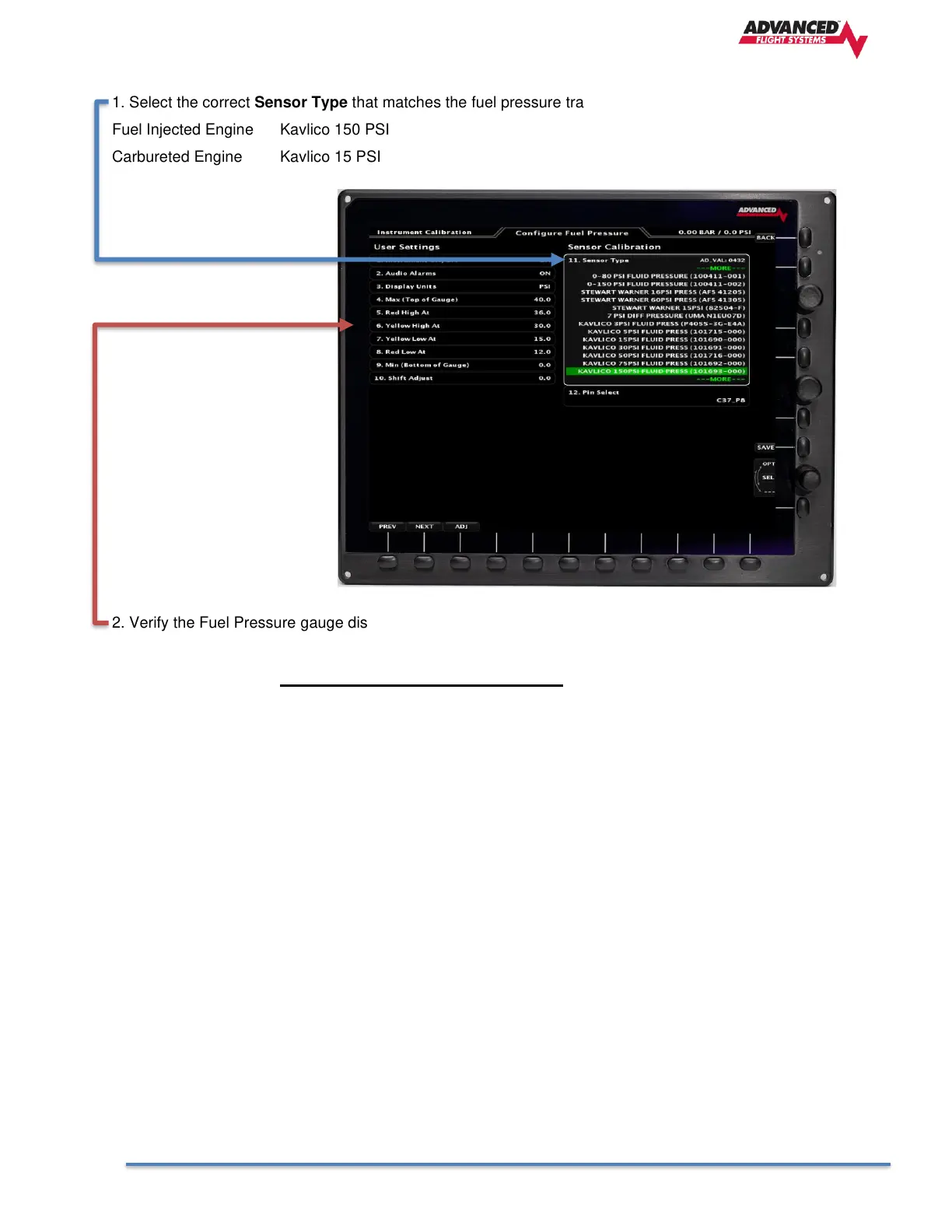

1. Select the correct Sensor Type that matches the fuel pressure transducer installed on the engine.
Fuel Injected Engine Kavlico 150 PSI
Carbureted Engine Kavlico 15 PSI
2. Verify the Fuel Pressure gauge display ranges match your engine manufacturers recommendations.
Example Settings
Carbureted Injected
Sensor 41015 (0-15PSI) Kavlico 41150 (0-150PSI) Kavlico150
Max 15 40
Red High 10 35
Yellow High 8 30
Yellow Low 3 15
Red Low 2 12
Min 0 0
To Next Page
