Version 16.10 AF-6600 AF-5000 Series Install Manual 40

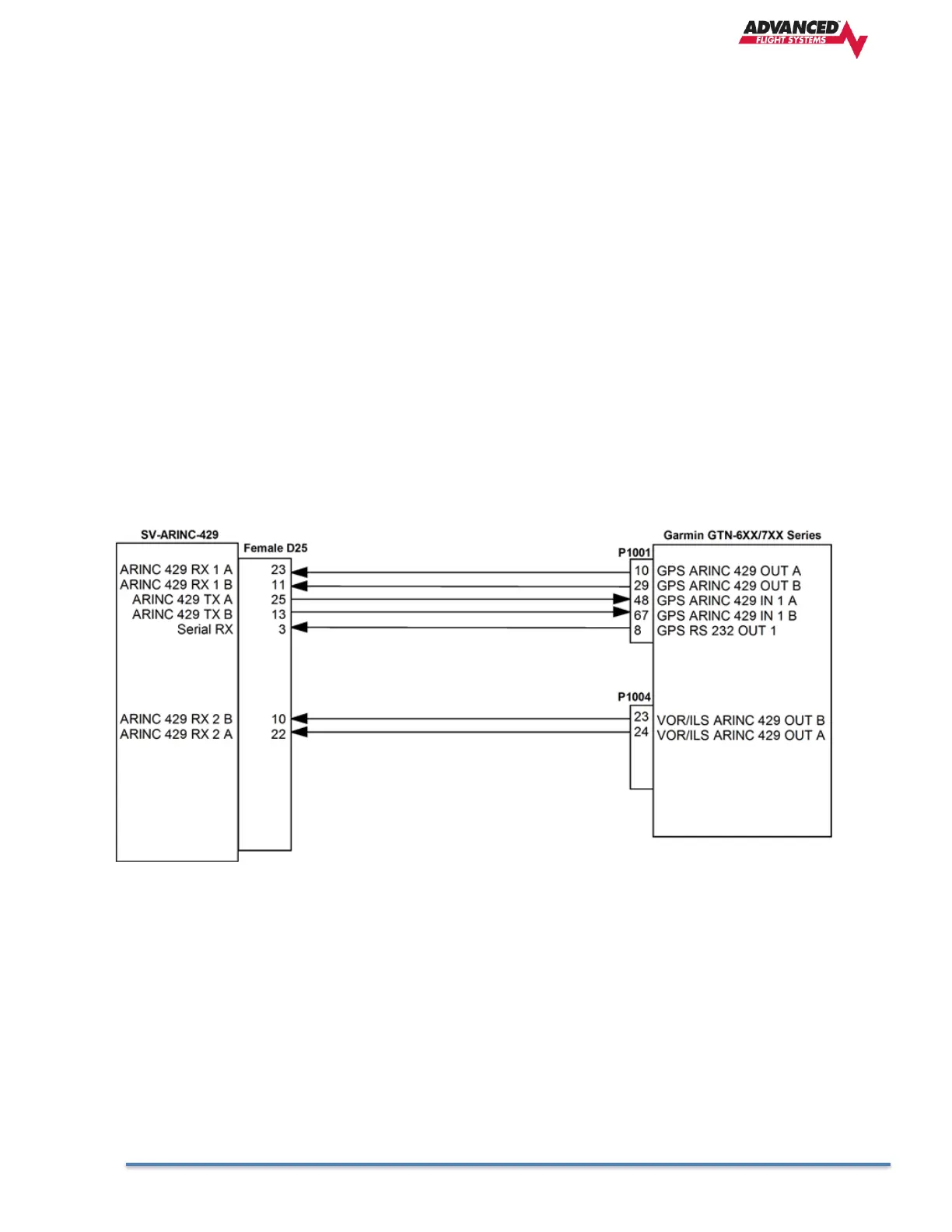

Garmin GTN-650/750 Series Configuration Information
The following are the typical Garmin and AF-5000 configuration settings when this combination of products is used:
Garmin Settings
"ARINC 429 Configuration" page
In 1: Low | EFIS Format 3
In 2: Unused by SkyView, configure as needed for other equipment
Out: Low | GAMA Format 1
SDI: Common
"VOR/LOC/GS Configuration Page
Nav Radio: Enabled ARINC 429 Configuration: Tx Speed: Low SDI: Common Other Settings: Unused by AF-5000
“RS-232 Configuration” Page
RS232 1 Output: Aviation Output 1
Optional (ADS-B)
If Dynon/AFS SV-XPNDR-261 is being used for ADS-B Out capability: Another GTN serial output should be set to
“Garmin ADS-B” format. That serial port should be connected to the SV-XPNDR-261’s pin 3 through a 1.21k resistor as
described in the transponder installation section of this manual.
