Version 16.10 AF-6600 AF-5000 Series Install Manual 39

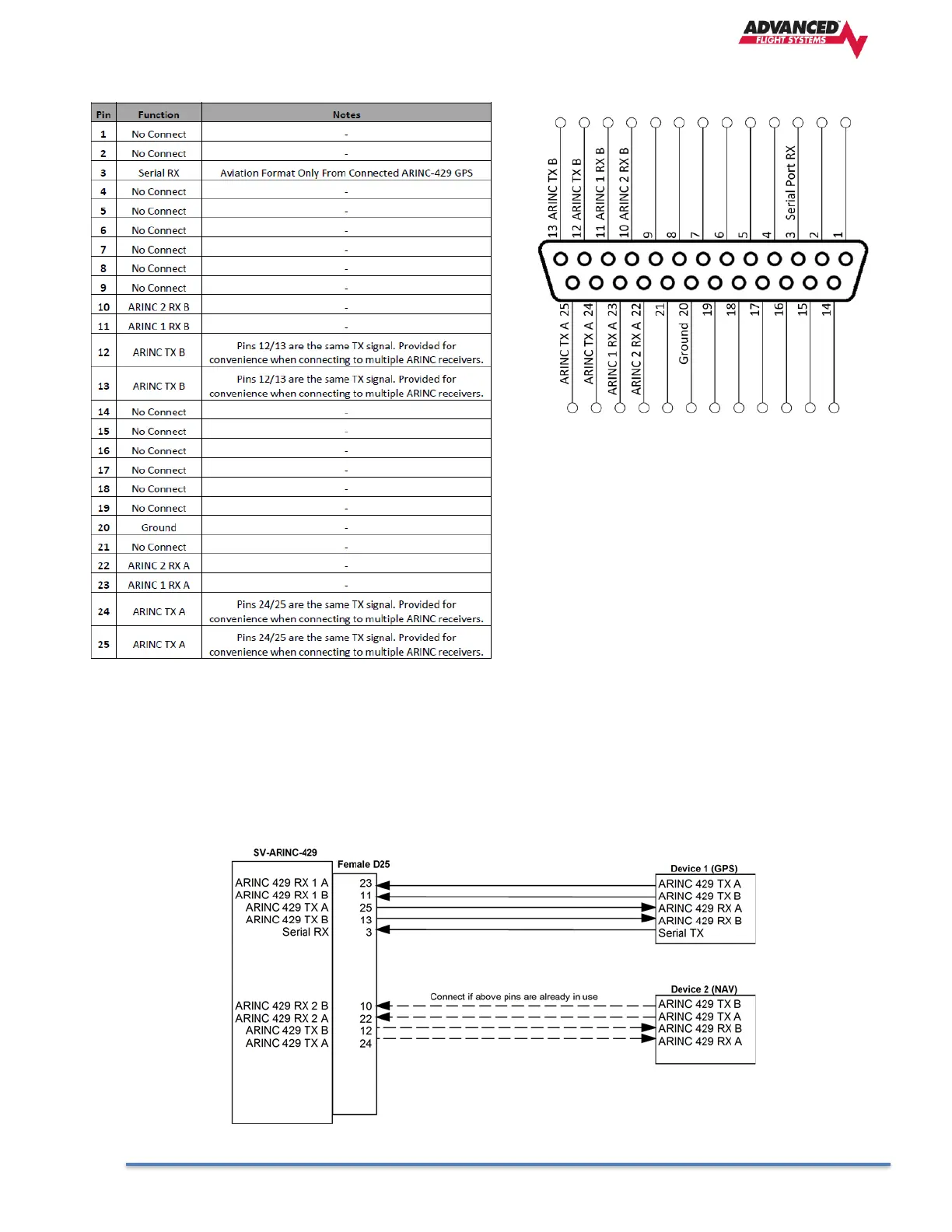

SV-ARINC-429 Pinout
SV-ARINC-429 Male D25 Pin Insertion View
(Rear)
ARINC Device Connections
The SV-ARINC-429 has two ARINC-429 receivers and one transmitter. The single transmitter may be connected to
multiple devices that can accept the ARINC-429 information that the EFIS transmits.
The SV-ARINC-429 also has a serial input that is designed to provide auxiliary information that ARINC-429 GPS outputs
do not provide (such as altitude). The EFIS needs this data to consider the input a valid and complete GPS position
source. This input is not a general purpose serial port, and cannot be configured for other uses. Input coming into this
serial port is assumed to be in Aviation format, which most ARINC-429 capable panel mount GPS units can output.
The following several diagrams show some common radios and GPSs, and the preferred connection schemes between
them and the SV-ARINC-429.
