Yaw Servo Calibration Procedure
• With the EFIS screens shut down center the Rudder control surfaces.
• Make sure the panel mounted AUTO PILOT power switch is in the ON position.
• Turn on the aircraft Master Switch and Avionics Switch.

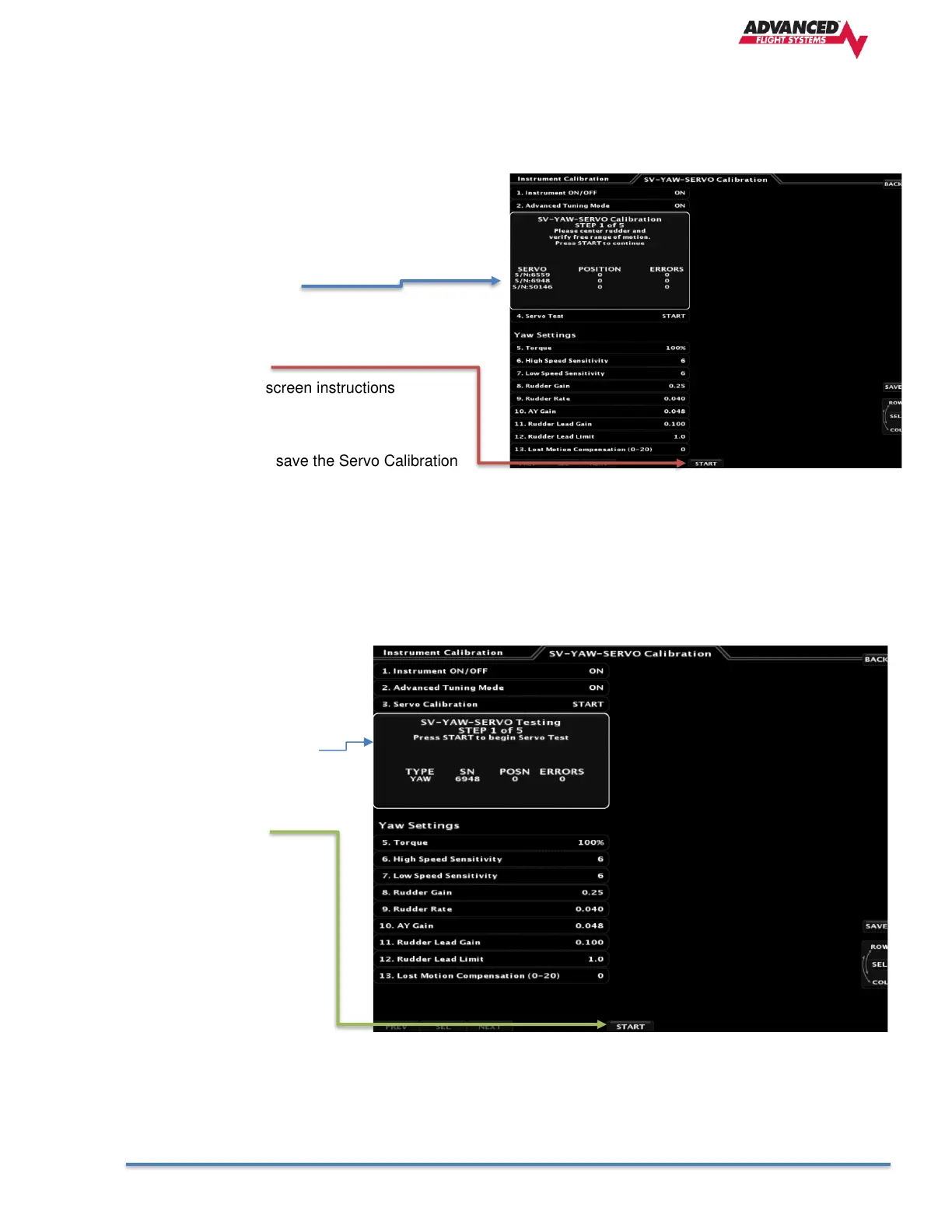

• Select SET > CAL > 12. Yaw Damper
STEP 1 of 5
• Select 3. Servo Calibration and verify that the
SERVO POSITION values change when you
move the Rudder.
• Press START
Follow the on-screen instructions
• Press SAVE to save the Servo Calibration
Yaw Servo Test Procedure
• Make sure the Rudder is
free to move in the full
range of motion.
• Select 4. Servo Test
• Press START
• Press DONE
When test is complete
To Next Page
