1 Getting Started
18 Operation Manual
Touchscreen
The touchscreen shows GC status and activity information, and allows you to start, stop, and
prepare the GC to run a sample. The touchscreen also provides access to GC setpoints,
real-time signals, diagnostics, maintenance information, logs, and instrument configuration
settings. More information about the touchscreen can be found in the Touchscreen Help. For
more information on accessing the Touchscreen Help, see “Help from the Touchscreen”.
To save energy and increase display life, the touchscreen darkens after an operator specified
period of inactivity. Touching the screen brightens it again.

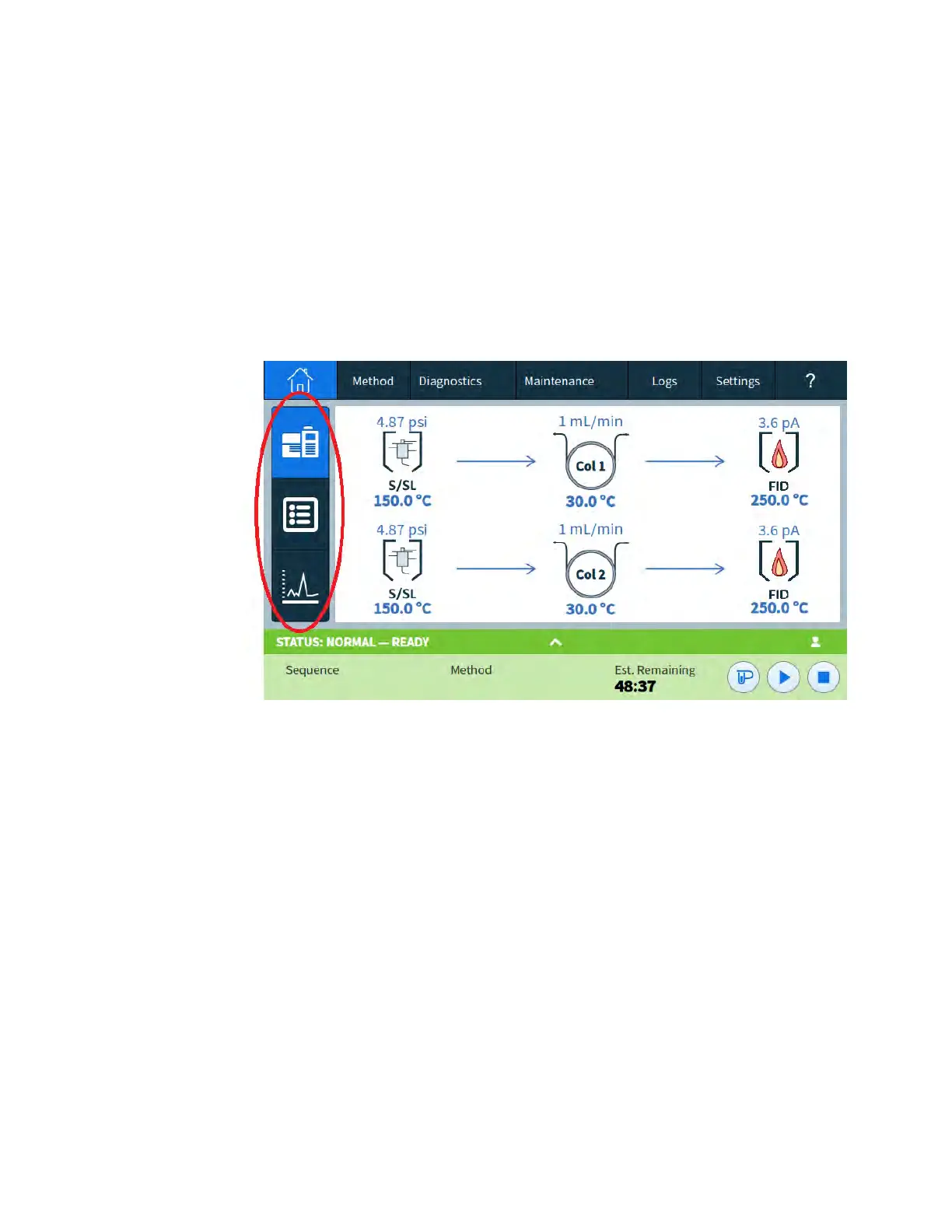

Figure 3. View status, status listing, and live plots.
