Lesson 5 – Waveform Generation with the Mixed-Signal Tool
243
a set of random phase offsets is found, that produces a PRR within
the given limits.

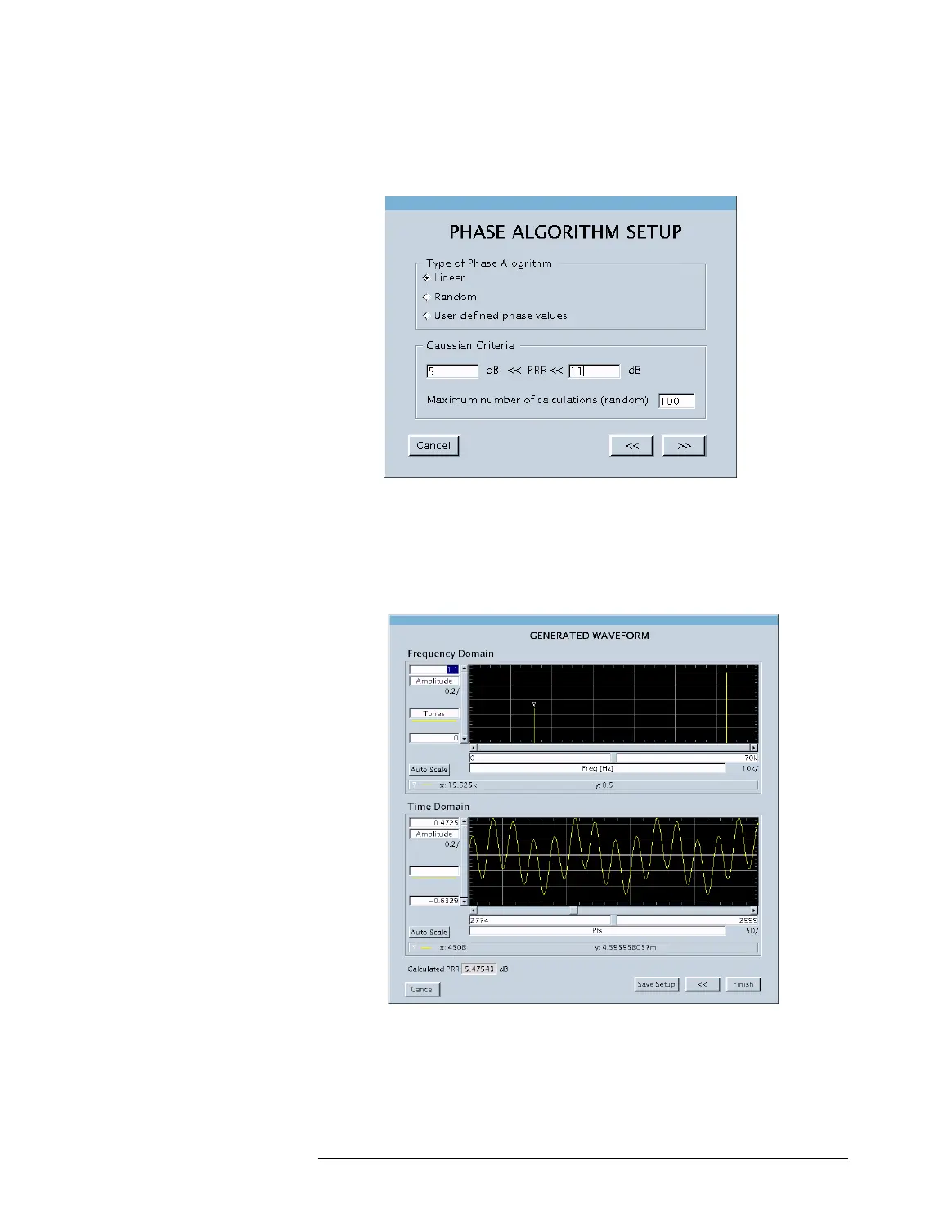

Phase Algorithm Setup Window
3
Click the >> button to perform the calculation of the multitone
waveform in the time domain.
After the calculation, the final waveform will be displayed in the
frequency and in the time domain.
Viewing the Multitone Waveform in the Frequency and in the Time Domain
4
If you are satisfied with the waveform, you can transfer it to the
Generated Waveform display of the Mixed-Signal Tool. Otherwise,
you can modify you settings by clicking the << button.
Tone 1
Tone 0
Tone 1
Tone 0
