Agilent Technologies 93000 SOC Series User Manual

Lesson 5 – Waveform Generation with the Mixed-Signal Tool
246

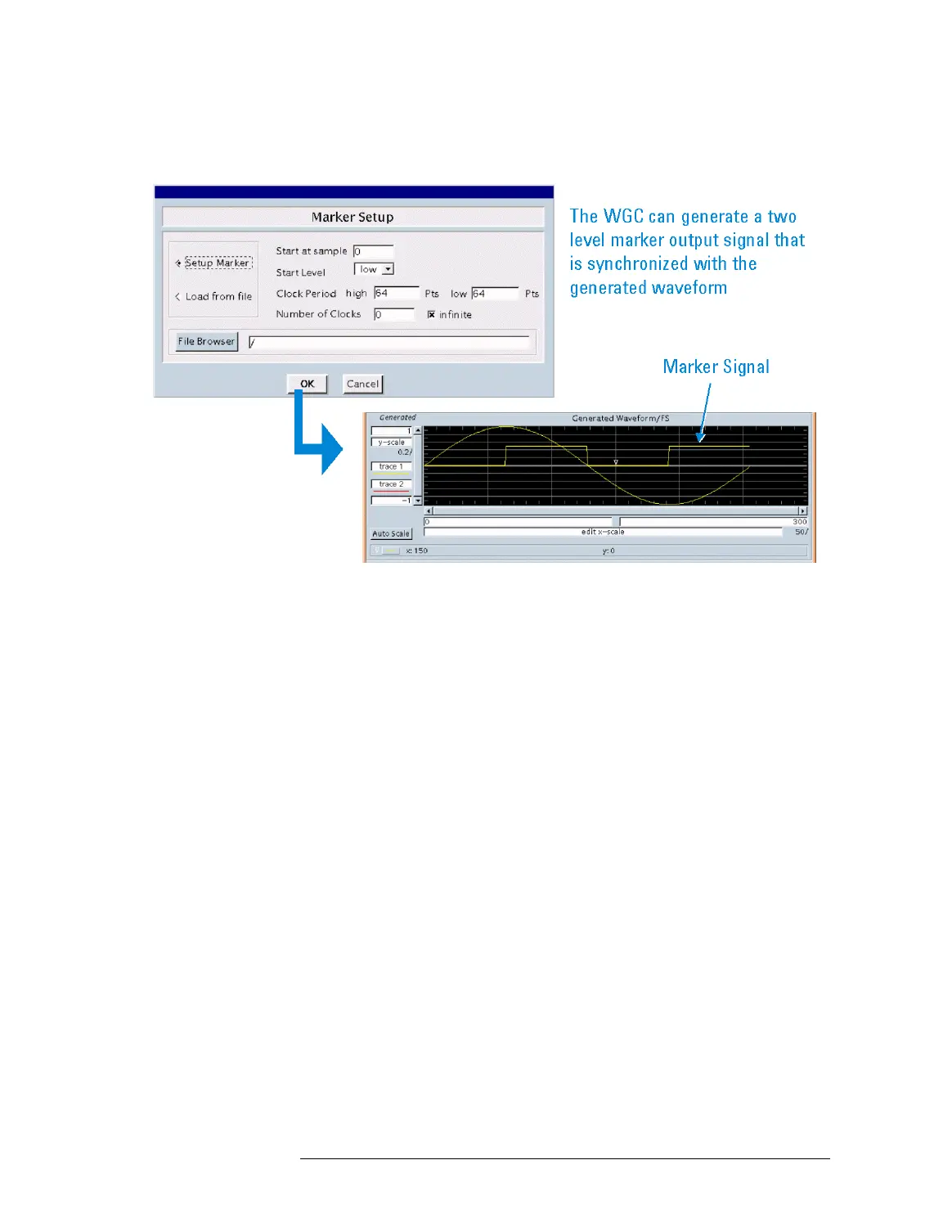

Marker Signal Setup
To set up the marker signal:
1 Fill in the sample at which the signal shall start.
2 Enter the level (low or high) the signal shall start with
3 Define the period (in number of samples of the waveform) the
marker signal shall remain at high and a low level.
4 Enter the number of marker signal periods (a period consists of
one low level and one high level section). Alternatively, you can
select infinite to maintain the marker signal as long as the output
waveform is generated.
5 Click OK
You can also load a marker signal you saved before. A marker
signal can be saved with the File I/O menu, using the Enhanced
ASCII format.
