Lesson 6 – Executing the DAC Linearity Test

260

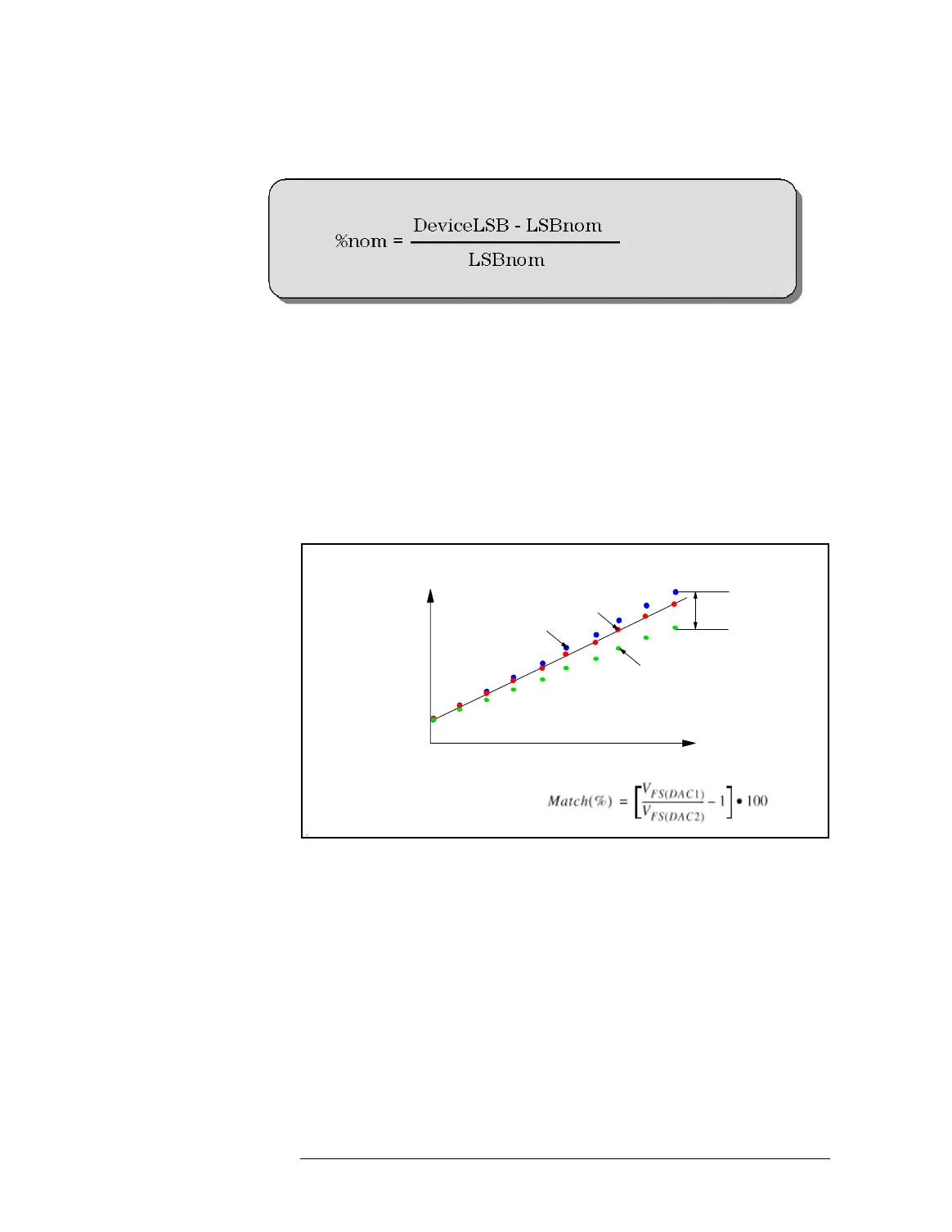

DAC LSB Gain Error in % of LSBnom

For more information about the calculation of the LSB gain error,

see the Appendix “Definition of DAC and ADC Characteristics” on

page 567.

DAC Gain Mismatch

Gain mismatch measures the difference in full scale output values

) between two DACs. It is expressed in %.

Definition and Calculation of Gain Mismatch

Mismatch

Blue

Green

Red

Digital Input code

Discrete Analog

Output Voltage

Mismatch is calculated as:
