Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Introduction to the Test System
30
For widest application coverage with regard to speed and
precision, the test system supports several analog modules of each
type.

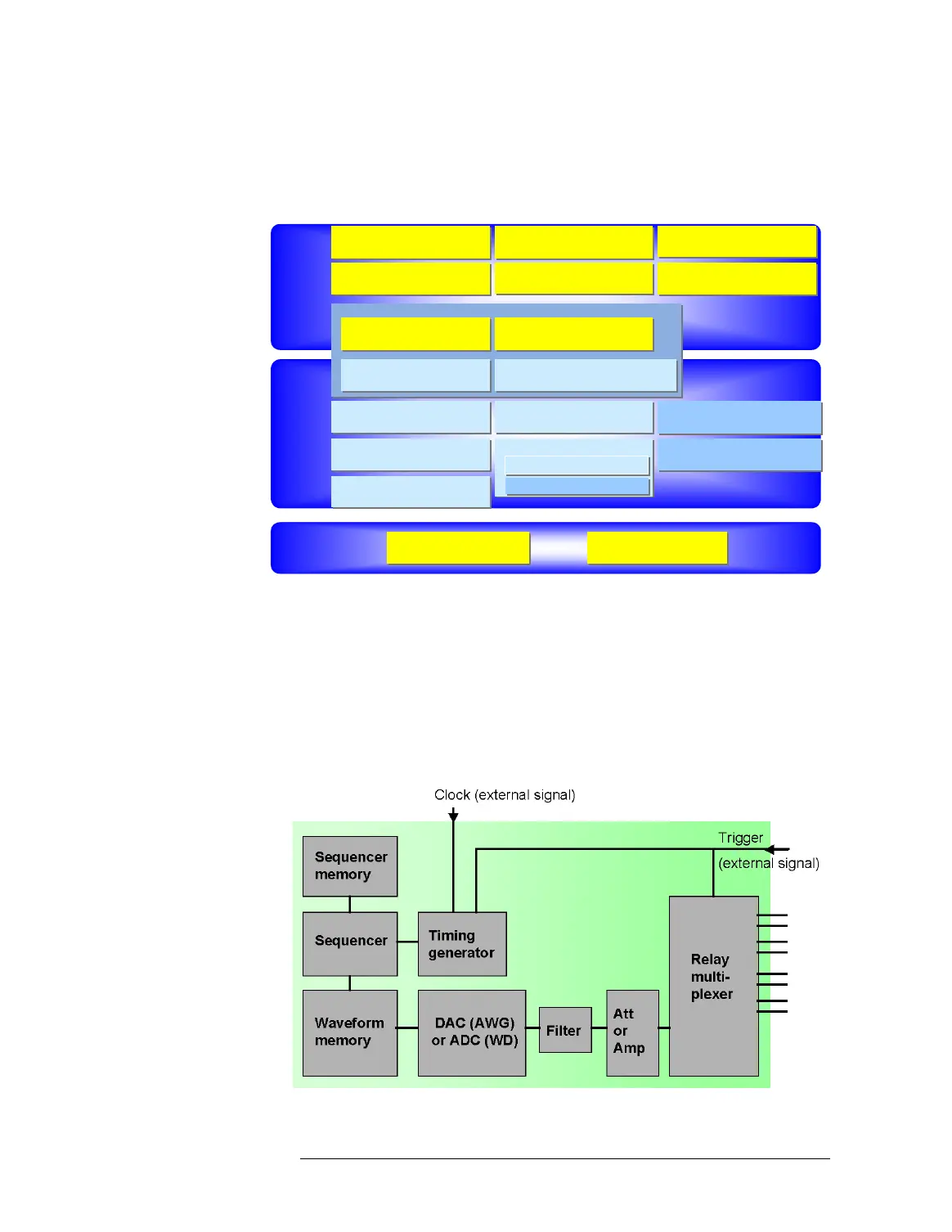

Summary of Analog Modules for the SOC Series
All analog modules will be discussed in detail in Unit 2 of this
training.
Here is an overview of the main components of analog modules
(except for the TIA, which is different in function and design):
Main Building Blocks of Analog Modules (except TIA)
Agilent 93000 SOC Series
Mixed Signal Training
Page 19
Arbitrary
Waveform
Generators
High Resolution AWG
1Msps, 18-bit, Max sine 250kHz
High Resolution AWG
1Msps, 18-bit, Max sine 250kHz
High Speed AWG
128Msps, 12-bit, Max sine 32MHz
High Speed AWG
128Msps, 12-bit, Max sine 32MHz
Ultra High Speed AWG
2.6Gsps, 8-bit, Max sine 800MHz
Ultra High Speed AWG
2.6Gsps, 8-bit, Max sine 800MHz
Digitizer/
High Resolution Digitizer
2Msps, 16-bit, 3MHz BW
High Resolution Digitizer
2Msps, 16-bit, 3MHz BW
High Speed Digitizer
41Msps, 12-bit, 100MHz BW
High Speed Digitizer
41Msps, 12-bit, 100MHz BW
Sampler
Dual High Speed Sampler
Max input freq 1GHz, 12-bit, 1Msps
Dual High Speed Sampler
Max input freq 1GHz, 12-bit, 1Msps
High Performance TIA
Max input frequency 960MHz
High Performance TIA
Max input frequency 960MHz
General Purpose TIA
Max input frequency 400 MHz
General Purpose TIA
Max input frequency 400 MHz
Time
Interval
Analyzers
500M AWG
500Msps, 12-bit, Max sine 125MHz
500M AWG
500Msps, 12-bit, Max sine 125MHz
30M AWG
30Msps, 16-bit, Max sine 7.5MHz
30M AWG
30Msps, 16-bit, Max sine 7.5MHz
4.1G AWG
4.1Gsps, 8-bit, Max sine 1.2GHz
4.1G AWG
4.1Gsps, 8-bit, Max sine 1.2GHz
20MHz Digitizer
5Msps, 16-bit , 20MHz BW
20MHz Digitizer
5Msps, 16-bit , 20MHz BW
1GHz Digitizer
1GHz Digitizer
3GHz Sampler
Max input freq 3GHz, 12-bit, 10Msps
3GHz Sampler
Max input freq 3GHz, 12-bit, 10Msps
1GHz BW, 12-bit, 50Msps
1GHz BW, 12-bit, 50Msps
320Msps, 12-bit, 160MHz BW
320Msps, 12-bit, 160MHz BW
Audio AWG
1Msps, 24-bit, Max sine 125kHz
Audio AWG
1Msps, 24-bit, Max sine 125kHz
Video AWG
100Msps, 14-bit, Max sine 25MHz
Video AWG
100Msps, 14-bit, Max sine 25MHz
Audio Digitizer
200ksps, 24-bit, 50kHz BW
Audio Digitizer
200ksps, 24-bit, 50kHz BW
Video Digitizer
65Msps, 14-bit, 15MHz BW/100MHz BW
Video Digitizer
65Msps, 14-bit, 15MHz BW/100MHz BW
100MHz Digitizer
105Msps, 14-bit , 100MHz BW
100MHz Digitizer
105Msps, 14-bit , 100MHz BW
Multi-site Baseband Analog Source & Measure
Besides, the Multi-site Baseband Analog Measure is available,
which contains the Audio Digitizer and Video Digitizer.
