Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Introduction to the Test System
32
Where to See Which Analog Modules are Installed in
the Test System
When starting up the SmarTest software, the Report Window
displays a list of all analog modules that are installed in the test
system.
The modules are listed with the number of the slot they are
installed in, and the three-letter software identifier of each module
(WDA, WDB, WGA, etc.).

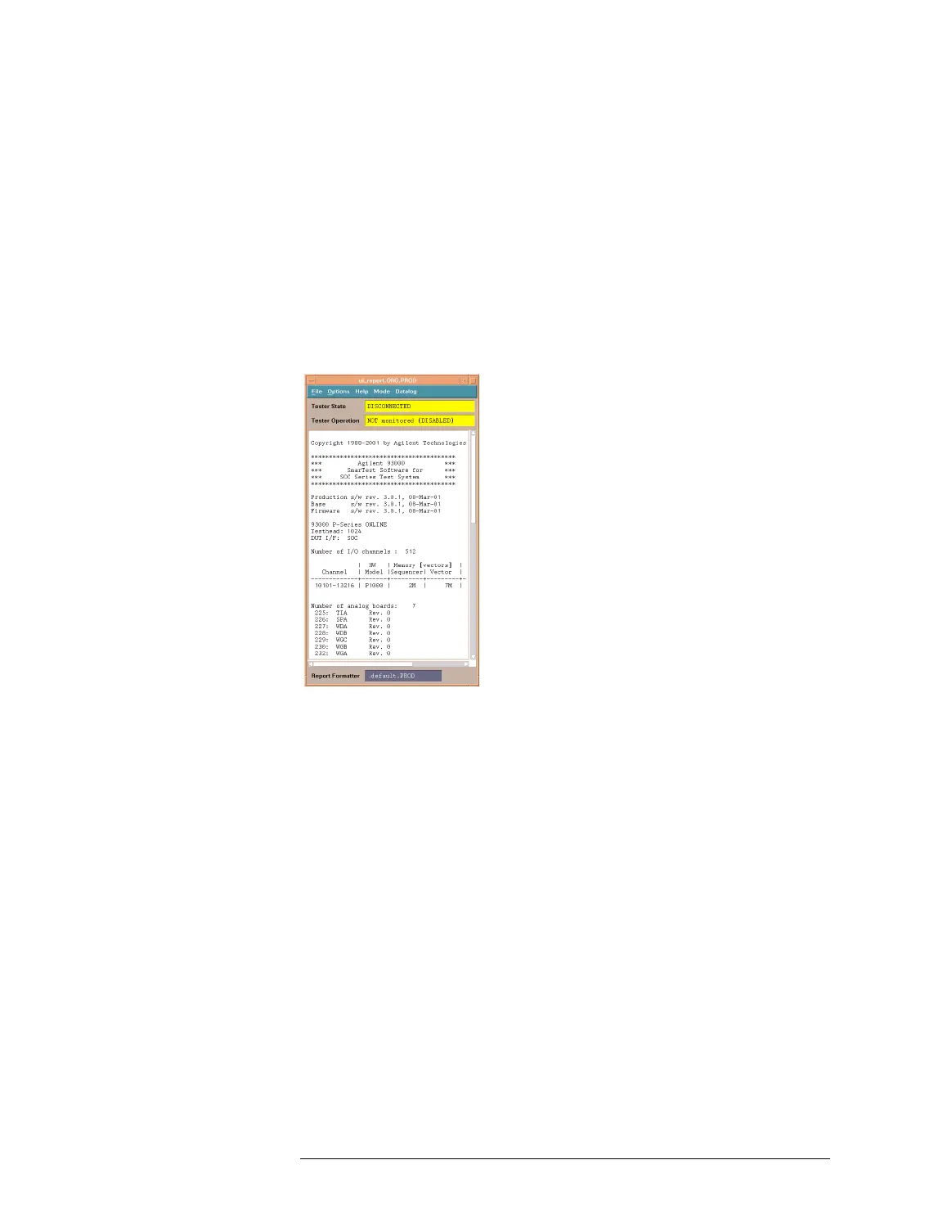

Viewing the Test System’s Analog Module Installation
The figure above shows the configuration for analog modules.
Details about this configuration, will be discussed in the next Unit.
The Report Window lists the installed Analog Modules
SLOT Module
225 TIA (Time Interval Analyzer)
226 SPA (High Speed Sampler)
227 WDA (High Speed Digitizer)
228 WDB (High Resolution Digitizer)
229 WGC (Ultra High Speed AWG)
230 WGB (High Speed AWG)
232 WGA (High Resolution AWG)
(Other Examples)
210 SPB (3GHz Sampler)
211 WDD (1GHz Digitizer)
212 WDE (20MHz Digitizer)
215 WDG (100MHz Digitizer)
222 WGD (500M AWG)
231 WGE (30M AWG)
221 WGF (4.1G AWG)
224 MCA (Multi-site Baseband Analog Source&Measure)
216 MCA (Multi-site Baseband Analog Measure)
