Lesson 3 – Introduction to the Software

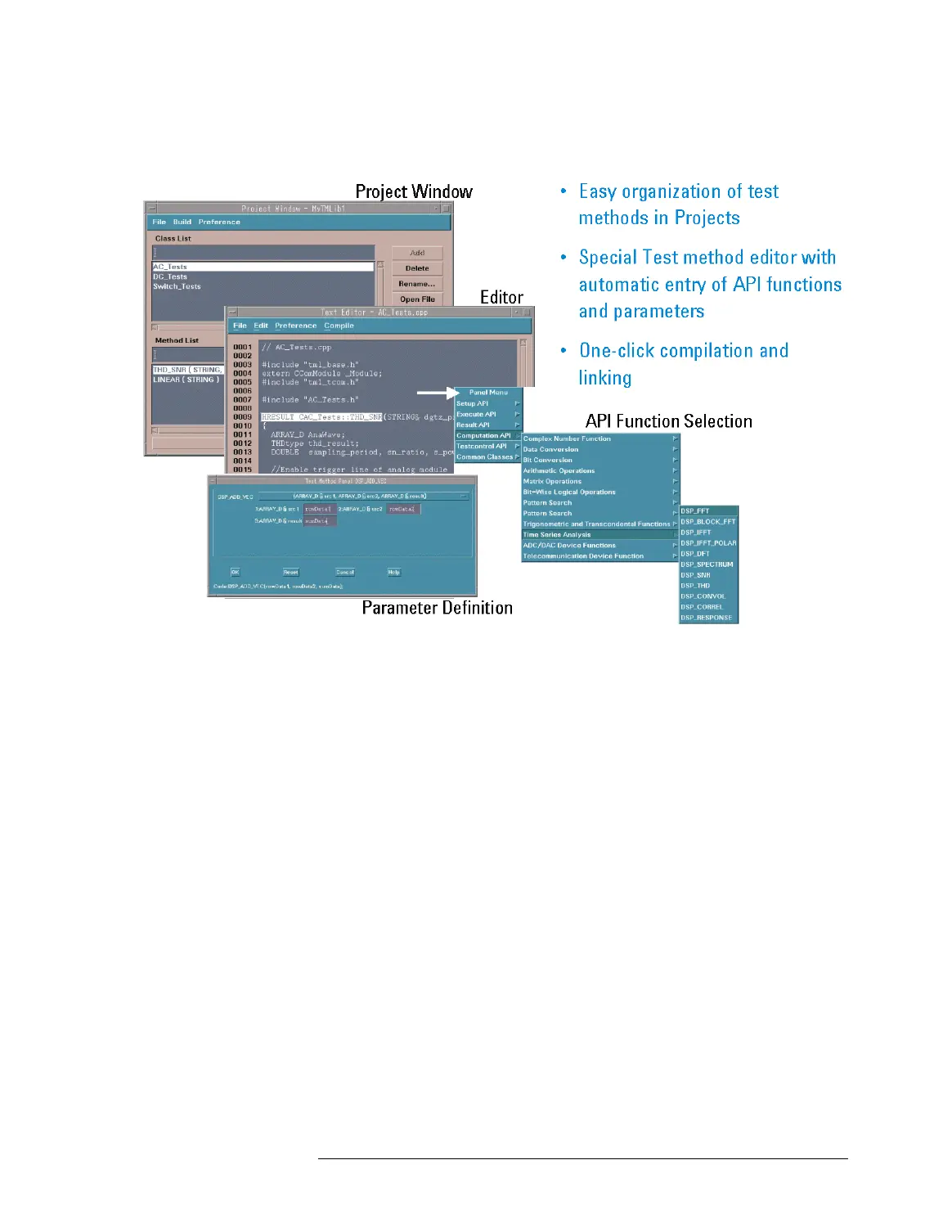

Test Method Tool - Test Method Creation

Also compiling and debugging of test methods are made easy with

the Test Method Tool.

• One-click compilation and linking of test methods.

• Test method debugging with integrated debugger.
