Lesson 3 – TIA Test Method Programming and Test Execution

505

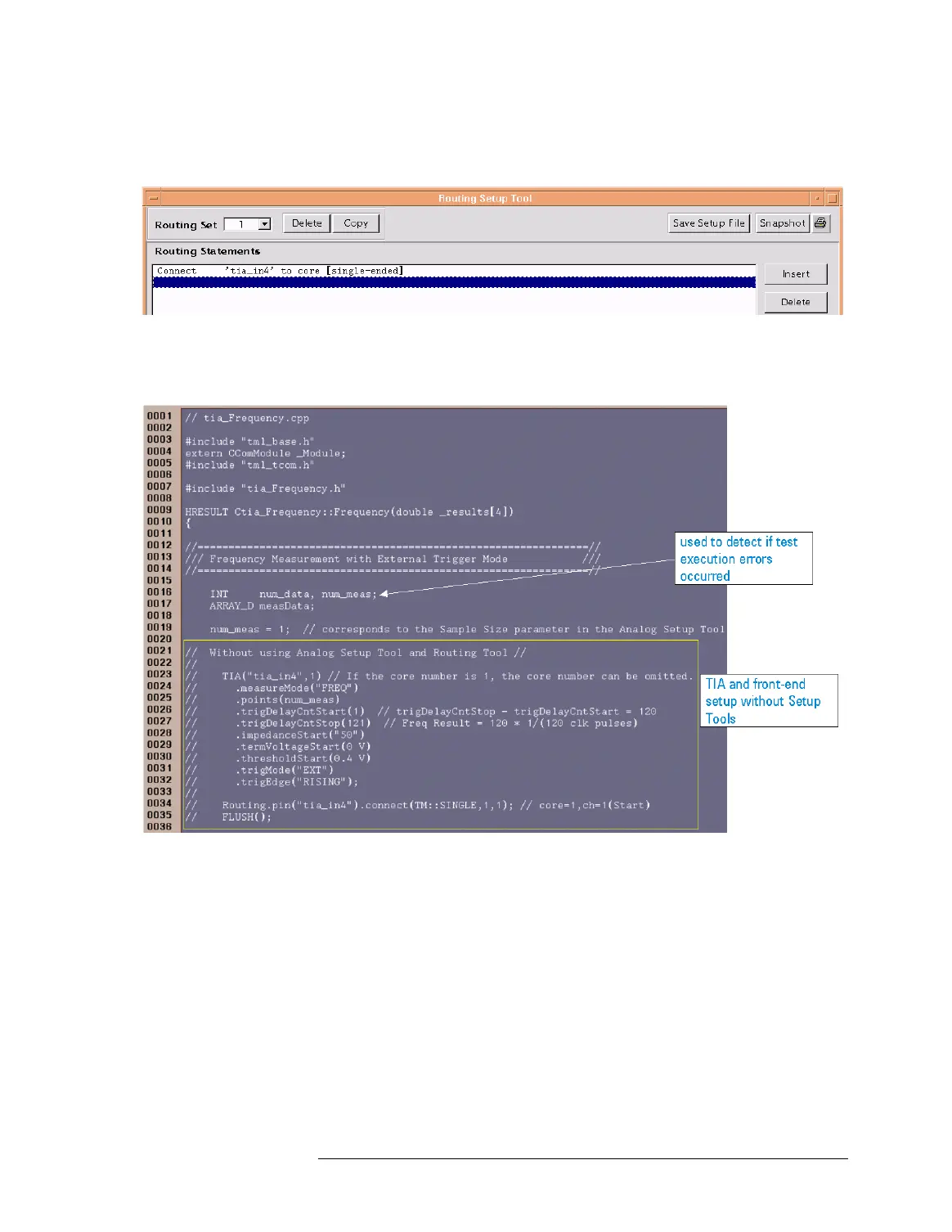

The routing for the test is defined in routing set 1.

Routing for Example Test Method

Test method code:

TIA Example Test Method (1)
