2. In the Header Settings dialog box, press the text field to be edited
and use the touchscreen keyboard to enter the information.
3. If you want the report to show your company logo, select the
Include Logo checkbox and browse to the location of the desired
logo image. This image must be in PNG format, and will be
resized automatically.
4. Press Save to save the header information, which is retained until
modified.
5. Press the Generate Report submenu key to open the dialog box in
Figure 12-10.
6. Enter the report name and select the destination folder as needed.
7. Optionally, press the Clear VIPI Files List button to remove saved
files from the list included in the report.
8. Select or deselect the checkboxes as appropriate:
Analysis Results – Overall Pass/Fail result
Analysis Details – Detailed results by analysis area
Current Results – Image and analysis results of currently
displayed VIP measurement
Additional VIPI Files – Previously saved measurement data
9. Press Save to generate the report.

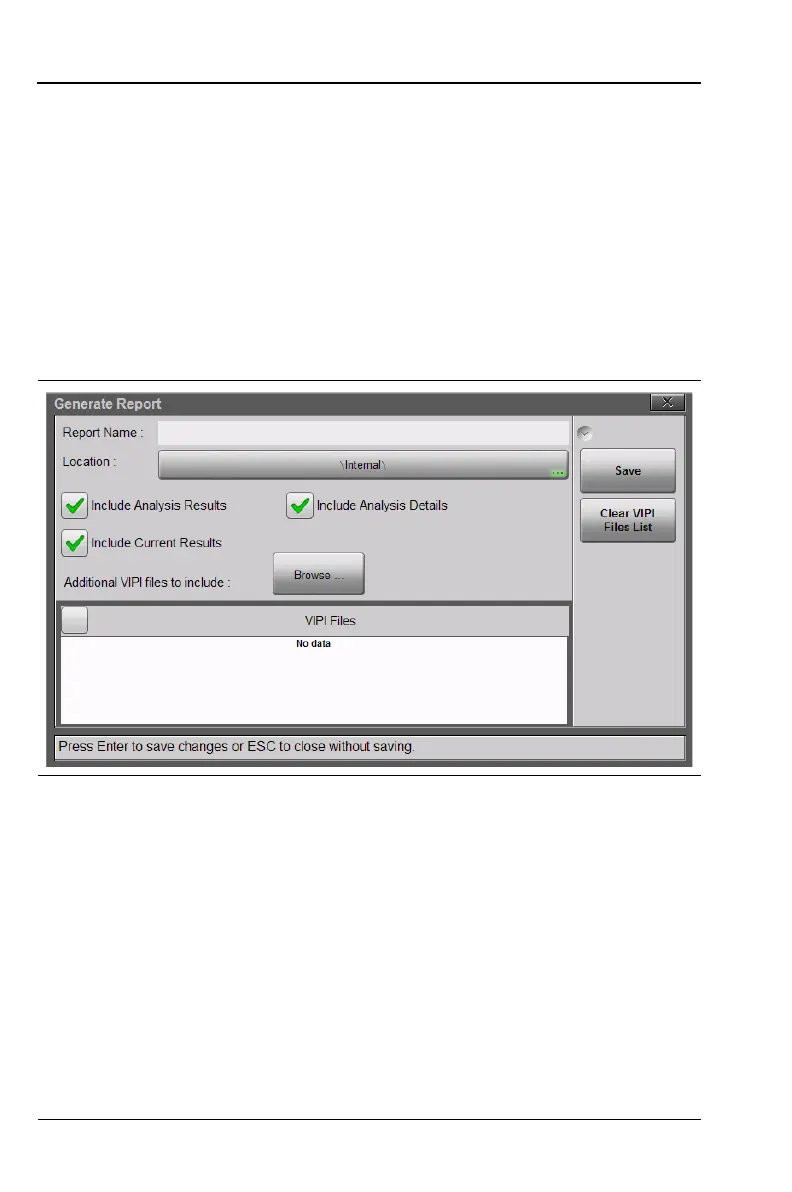

Figure 12-10.Generate Report Dialog
