4. Tap on a limit line segment, then choose to Add, Edit, or Delete the
segment. For editing purposes, consider a single, full-span limit
line as a single segment. Press the Close submenu key or the ESC
key to close the Segments submenu and return to the Limit menu.
Upper limit lines and segments are labeled with a “U”, and Lower lines
and segments are labeled with an “L”. Limit lines are displayed in green
so long as the limits are not reached or exceeded. When a limit is
exceeded (upper or lower), the limit line or segment turns red
(Figure 3-23). Any portion of the measurement trace touching or
exceeding a limit also turns red, while portions of the trace within limits
remain in the default yellow color. When Segmented Limits are used,
the trace color does not change if the limits are exceeded.

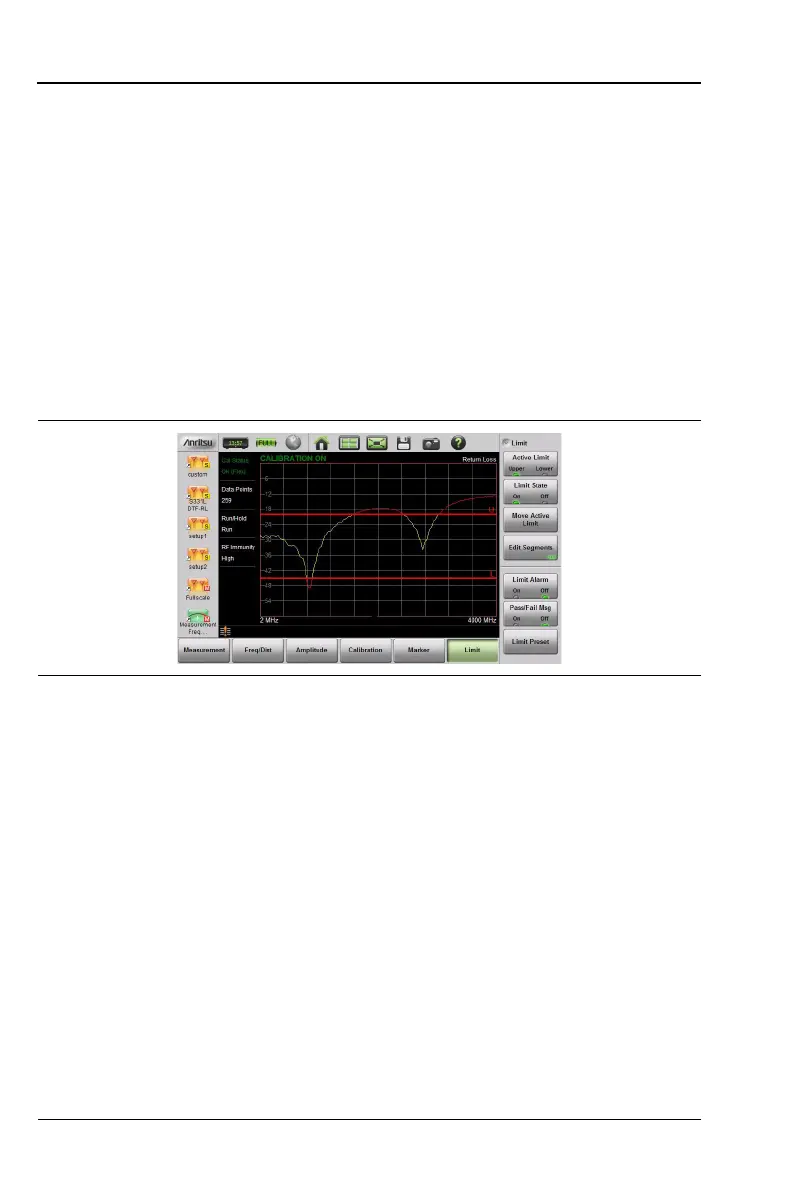

Figure 3-23. Limit Lines and Trace Showing Fail Colors
