Cable and Antenna Measurements 3-6 Measurement Setup
Marker Table
The Marker Table displays below the sweep window. The table is
automatically sized to display all markers that are turned on. The table
displays marker frequency/distance, amplitude and delta information
for delta markers. To display the marker table:
1. Press the Marker main menu key, then Display. Select Mkr + Table.
Marker Search
All the cable & antenna measurements include markers that will find
trace peak and or trace valley automatically.
1. Press the Marker main menu key then Marker Setup. Select the
marker to use for peak or valley.
2. Press Marker Search.
3. Press Marker To Peak to set the marker to the peak of the
measurement or Marker To Valley to set the marker to valley of the
measurement.

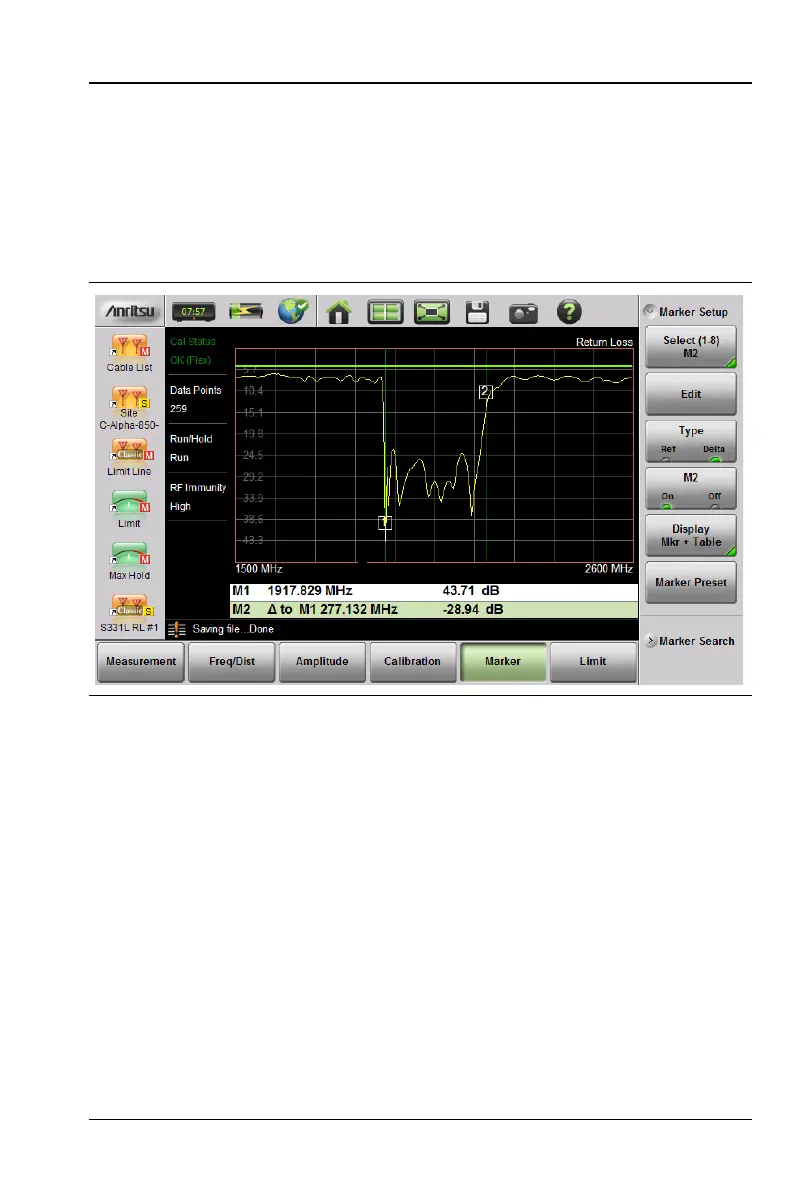

Figure 3-30. Delta Marker 2 and Marker Table
