Memory Management Unit

3.2.2 First-level fetch

Bits [31:14] of the TTBR are concatenated with bits [31:20] of the MVA to produce a

30-bit address as shown in Figure 3-3.

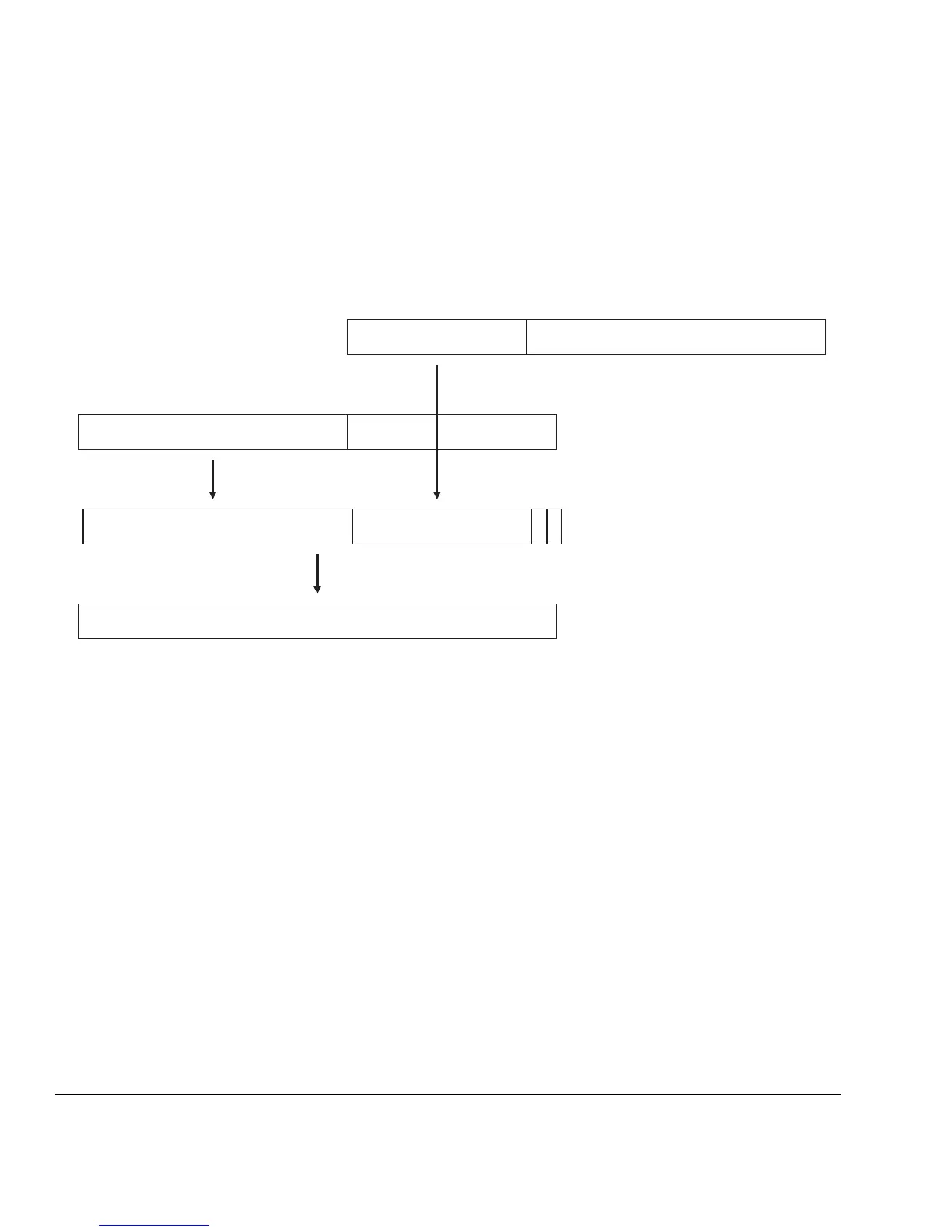

Figure 3-3 Accessing translation table first-level descriptors

This address selects a 4-byte translation table entry. This is a first-level descriptor for

either a section or a page table.

3.2.3 First-level descriptor

The first-level descriptor returned is a section descriptor, a coarse page table descriptor,

or a fine page table descriptor, or is invalid. Figure 3-4 on page 3-9 shows the format of

a first-level descriptor.

Table index

31 20 19 0

Translation base

31 14 13 0

Translation base

31 14 13 2 1 0

Table index 0 0

First-level descriptor

31 0

Modified virtual address

Translation table base
