Sheet #651u – Dump Level
Version 1.04a User guide ATEQ 6th series Page 1/1
DUMP LEVEL
The function DUMP LEVEL monitors the pressure inside the part and warns the user with the
message "PART UNDER PRESSURE”. The end of cycle signal after the dump time doesn’t
goes high until the pressure of the tested is below the level entered into the function
configuration.

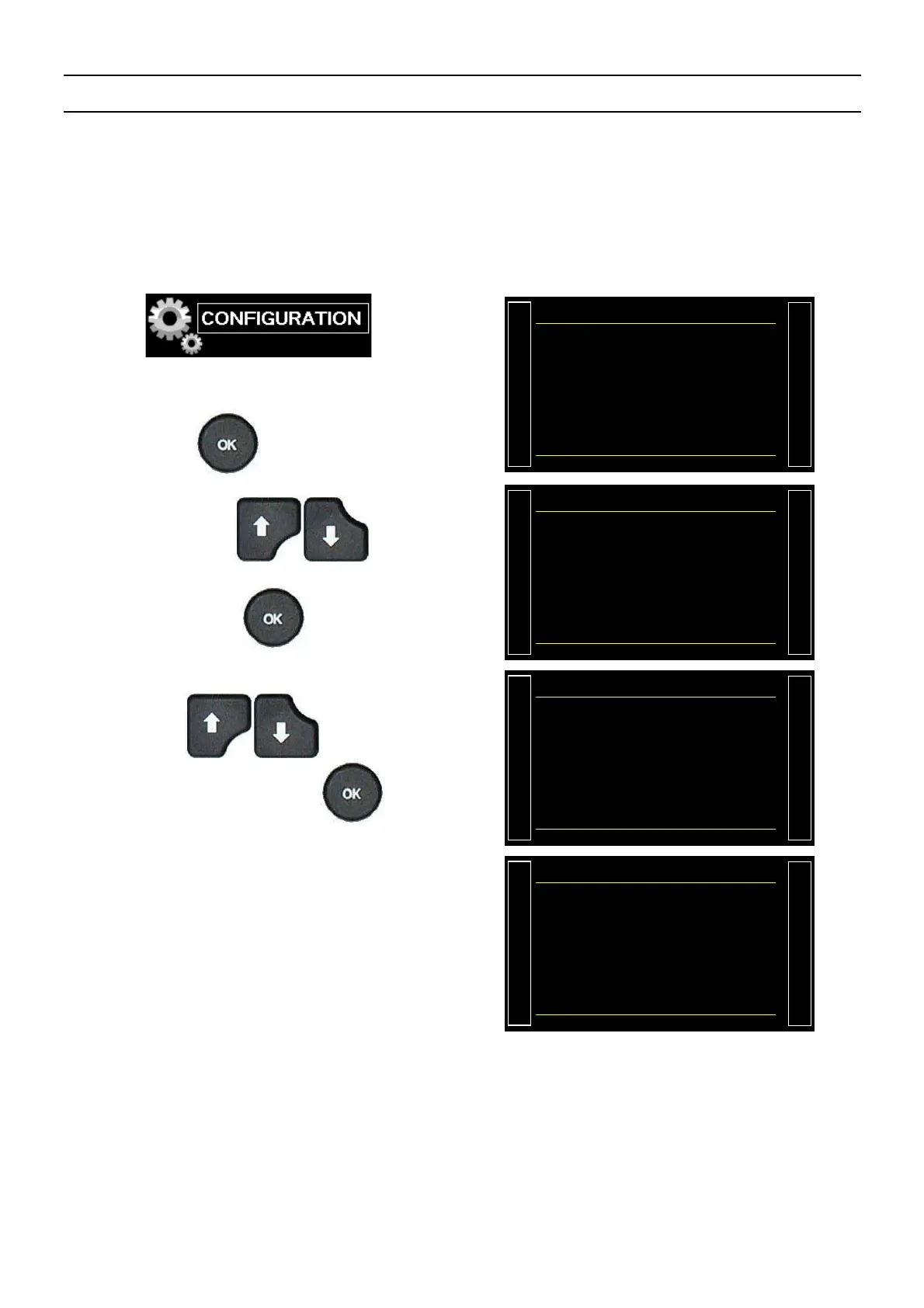

1. PROCEDURE
From the "CONFIGURATION" menu, select
the "PNEUMATIC" menu and then press the
button.
/#+0%10(+)74#6+10
LANGUAGE : English
Ź PNEUMATIC
AUTOMATISM
SECURITY
MISCELLANEOUS
Then by using the arrows,
select the "DUMP LEVEL" menu and validate
with the
key.
/#+0%10(+
20'7/#6+
ELEC. REG: 10000 hPa
REGUL. CTRL. : AUTO
PERM. REG. : No
PIEZO AUTO AZ : No
AZ SHORT : No
Press UNIT : bar
BLOW MODE : No
Ź DUMP LEVEL : No
By using the arrows, select
"Yes" and validate with the
key.
/#+0%10(+
20'7/#6+
ELEC. REG: 10000 hPa
REGUL. CTRL. : AUTO
PERM. REG. : No
PIEZO AUTO AZ : No
AZ SHORT : No
Press UNIT : bar
BLOW MODE : No
DUMP LEVEL : Yes Ż
Then configure the minimum dump level
pressure.
10(+
20'7/
&7/2.'8'
Ź PRESSURE : 0.000
