3.2. BLOCKAGE TEST (OPTION)
The blockage mode is used for rough measurement of a flow. The standard pressure limits are
used to classify the result as good or bad.
If the pressure measured is below the minimum limit,
then the flow is too large.
If the pressure measured is in excess of the maximum
limit, then the flow is too small.

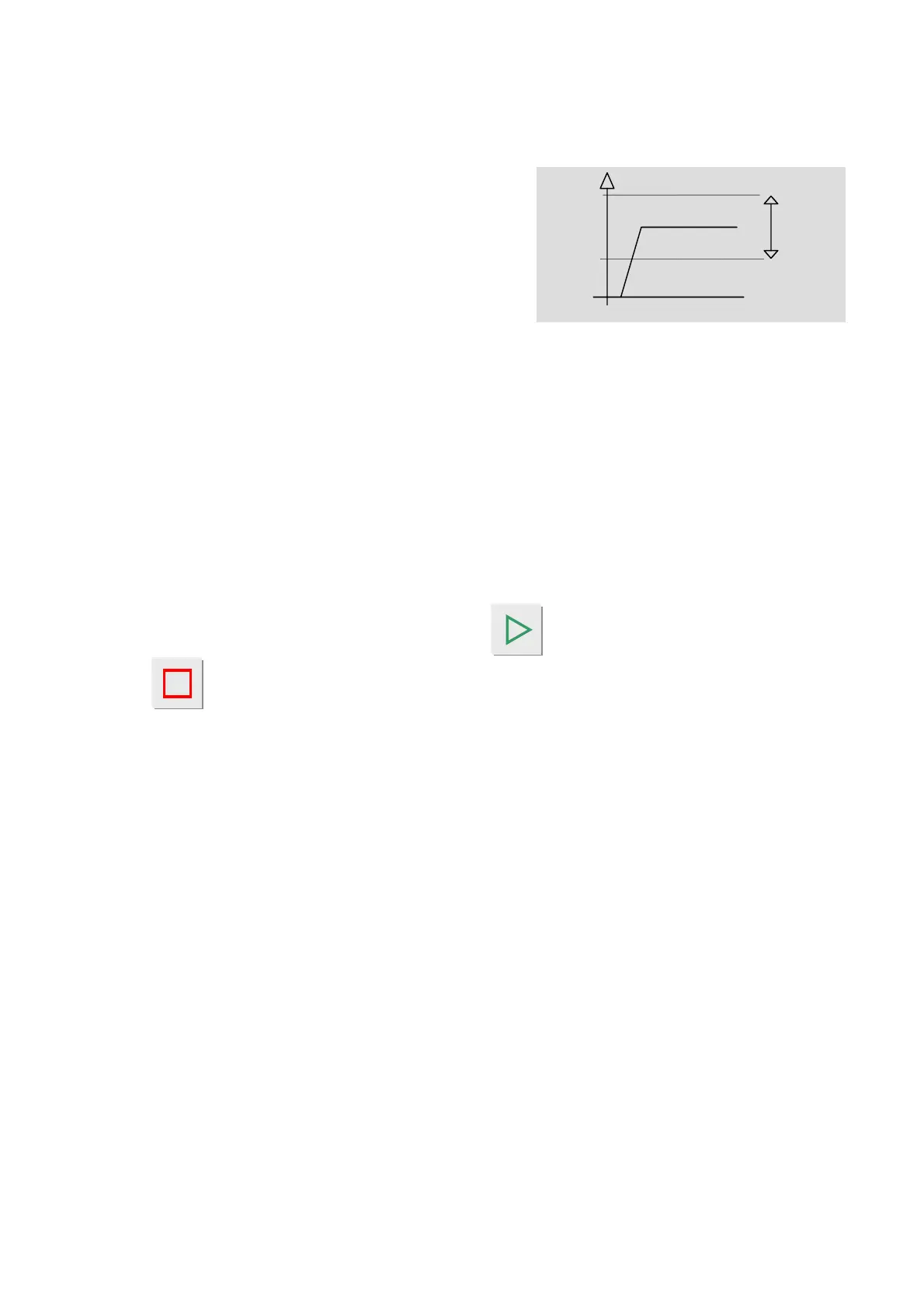

The cycle only contains the fill phase and the reading
is carried out during this phase.
LOW LIMIT
PASS PARTS
HIGH LIMIT
3.3. DESENSITIZED TEST (OPTION)
This mode is used for the measurement of large leaks, when the reject level required is above
the full scale of the differential sensor.
The measurement is performed by the pressure sensor.
Note: the calibration mode cannot be used during this mode (CAL/customer mode).
3.4. OPERATOR TEST
This type of test means that the operator can carry out operations on the part while under test,
then to confirm this operation using a "START"
key if the operator test is good, or
"RESET"
key if the test is fail.
