Sheet #609u – Valves codes / Auxiliary outputs
Version 1.04a User guide ATEQ 6th series Page 3/4

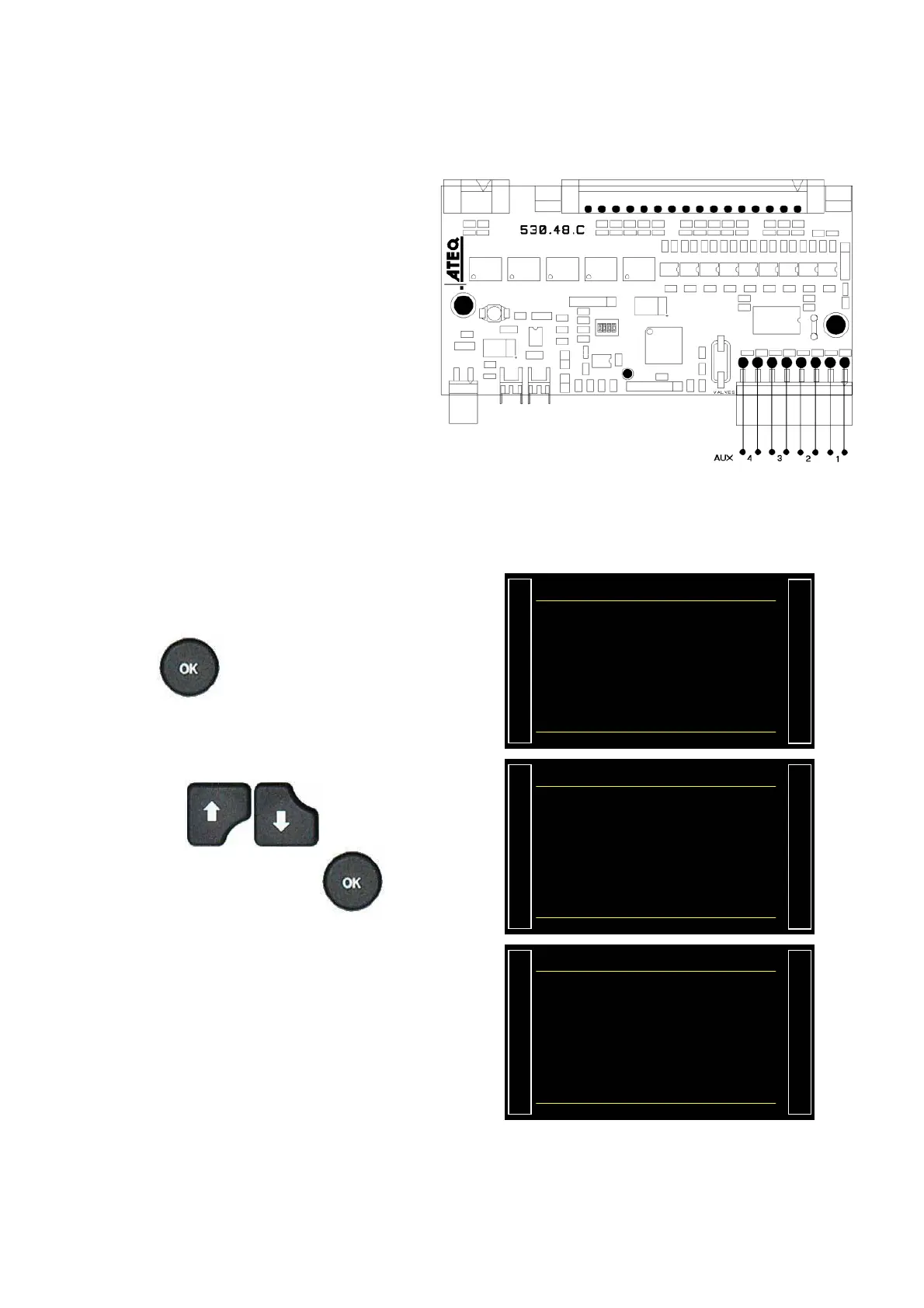

2. 24V AUXILIARY OUTPUTS
On the instrument main board there are four programmable electrical outputs (24V DC / 100 mA
maximum / output).
Unlike the valve code outputs, the
auxiliary outputs reserved for a
pneumatic function are identified by the
name of the function: stamping,
automatic connector, etc.
They are not associated to a function but
are available to the operator.
They are labeled Aux N (N = position
number).
Associated parameters to be adjusted:
Auxiliary 1, Auxiliary 2, Auxiliary 3,
Auxiliary 4.
2.1. PROCEDURE
Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T
(70%6+10
Ź24V OUTPUTS : No
More functions…
By using the arrows, select
"Yes" and validate with the
key.
2#4#/2T(70%6+10
Ź24V OUTPUTS : Yes Ż
More functions…
The validation menu of each output, external
and internal is displayed.
Activate one or both auxiliary output by
validate with "Yes".
(70%6
8176276
Ź AUX 1 : Yes
AUX 2 : No
AUX 3 : No
AUX 4 : No
To Next Page
