Sheet #610u – End of cycle
Version 1.04a User guide ATEQ 6th series Page 4/7

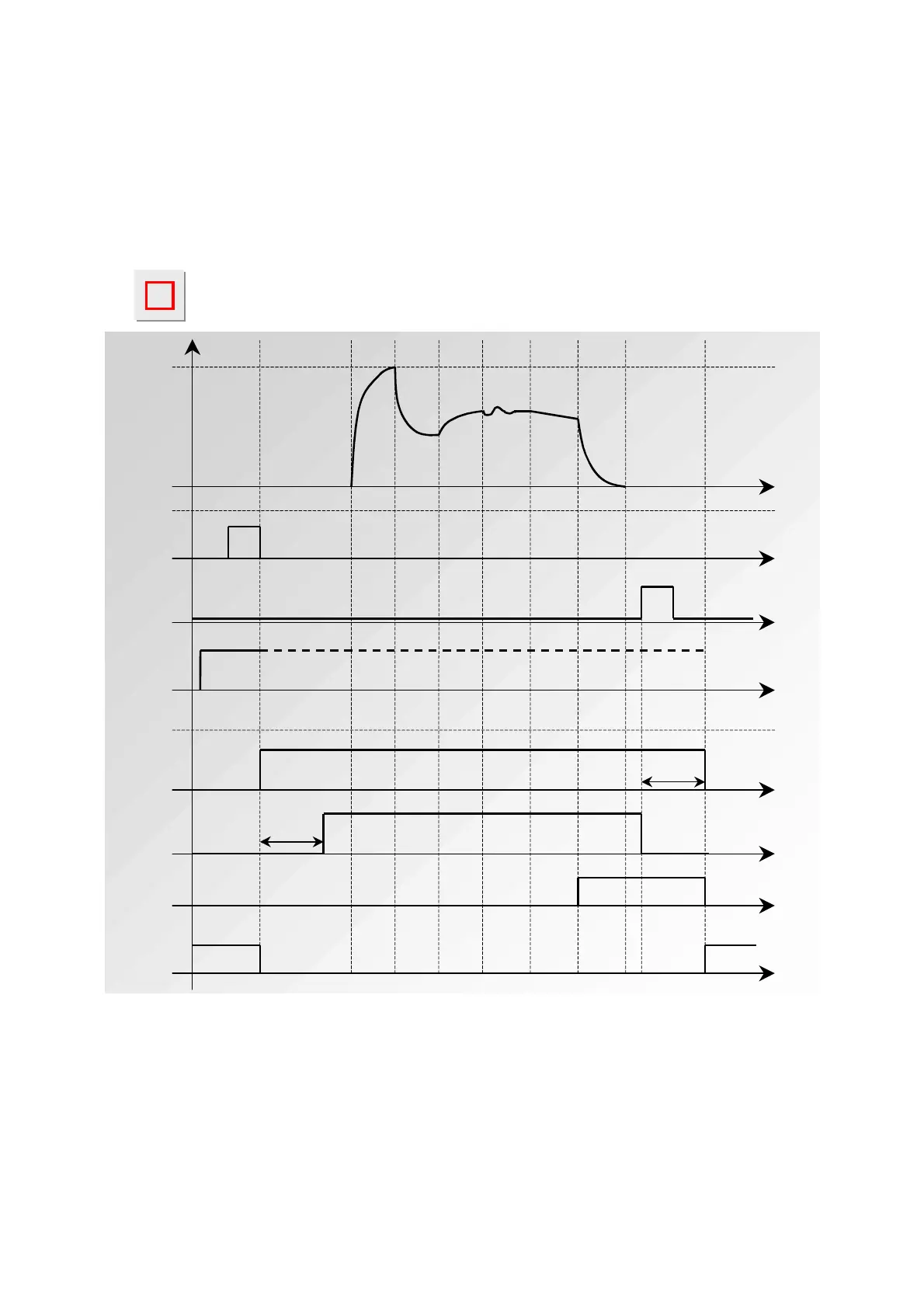

1.3. "RESET + DUMP" CYCLE END (AUTOMATIC DUMP)
If the part is OK, the Pass part relay is activated as soon as the test time is finished, and
remains so (only in position 2) until the next cycle is started.
At the end of the dump time, the end of cycle relay is activated.
If the part is Fail, as soon as the test time is over, the Fail part relay is activated and remains so
until the end of the cycle. The dump is then carried out. The cycle can be ended by pressing the
RESET key.
PRESSURE
START
Reset
AP-FP-DFSTD
t
t
t
t
t
t
t
Program
number
automatic
connector A
t
Fail part
B time
B time
Automatic
Connector B
End of cycle
Test cycle
Orders actions
t mini
t mini
t mini
Active
Inactive
Active
Inactive
The active program is the one selected before starting up. It remains active even if the program
inputs on the connector are no longer activated. This selection can only be modified during the
inter cycle period.
To return to program 1, when a cycle is not in progress, press any program selection inputs.
