Sheet #613u – Sealed components
Version 1.04a User guide ATEQ 6th series Page 4/8
2. LE 3 TYPES OF SEALED COMPONENTS
Because of the device hard configuration is different following the sealed components type, the
type must be choose at the device order.

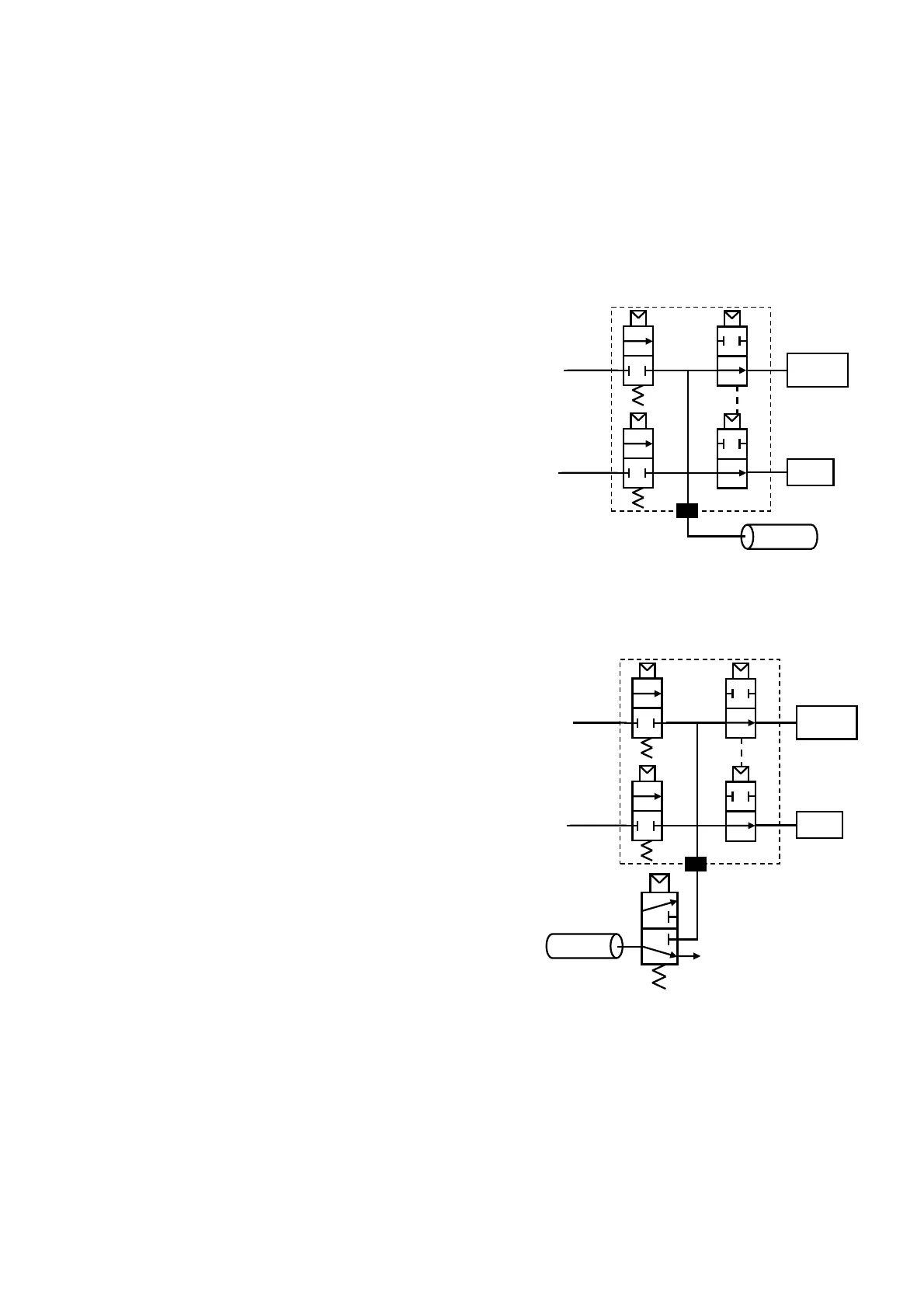

2.1. SEALED COMPONENTS 1
Standard version with the bell under pressure. See the presentation above.
Steps:
1) Insulation of the test part.
2) Volume fill.
3) Volume transfer to the test part.
Volume
Pressurization
FILL
V2
F5 valve
DUMP
TEST
REF
V2
V1
V3
2.2. SEALED COMPONENTS 2
Reverses quick sealed components.
1) Filling of the test part.
2) Transfer of the test part to the volume.
Volume
Pressurization
FILL
V2
F5 valve
DUMP
TEST
REF
V2
V1
V3
ATM
V4
AUX1
