Sheet #613u – Sealed components
Version 1.04a User guide ATEQ 6th series Page 5/8
2.3. SEALED COMPONENTS 3

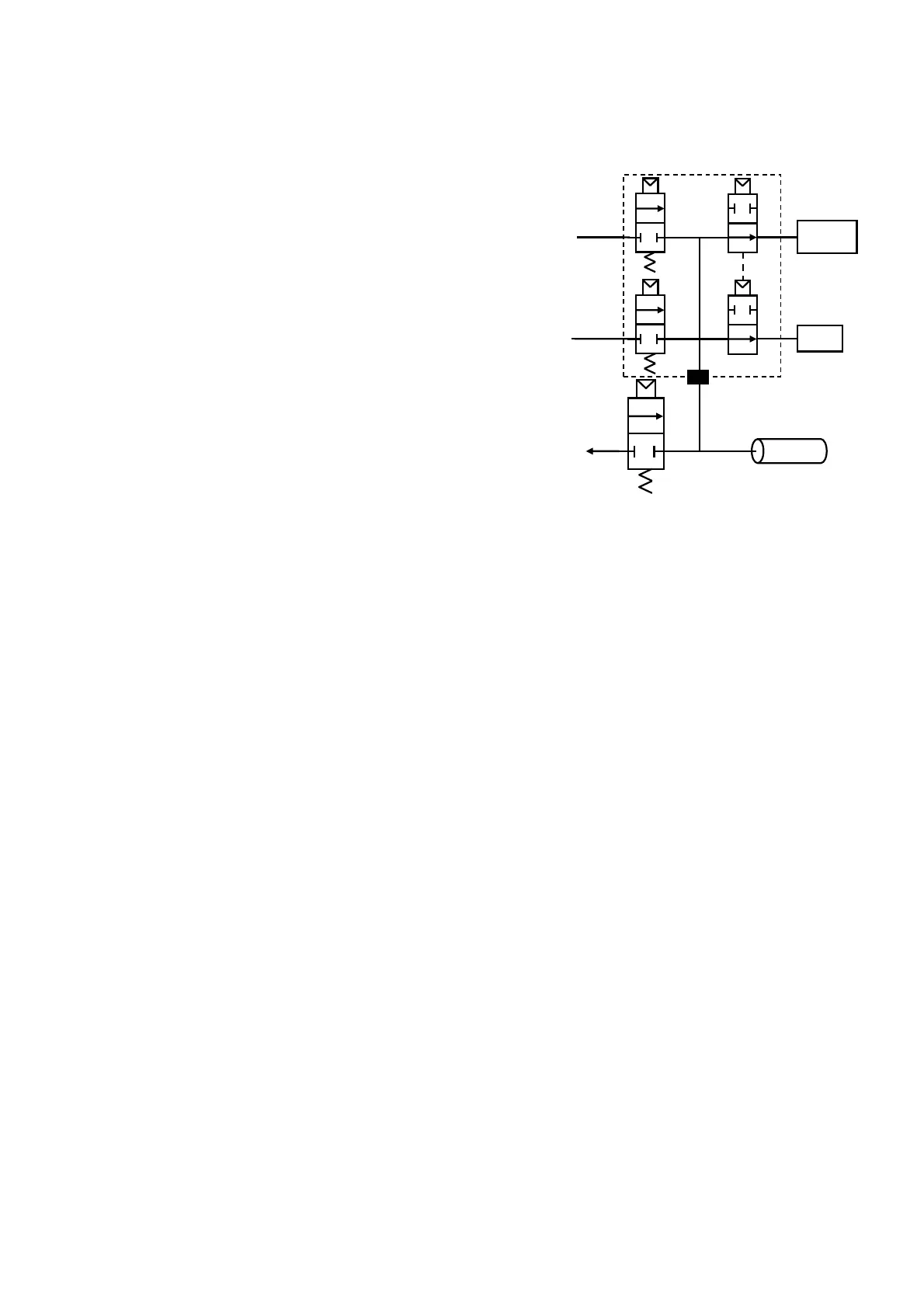

Reverses quick sealed components high accuracy.
1) Filling of the test part, of the volume and pressurization
volume.
2) Insulation of the test part.
3) Dumping of the volume and the pressurization volume.
4) Stop dump (volumes).
5) Transfer from the test part to the volumes.
Volume
Pressurization
FILL
V2
F5 valve
DUMP
TEST
REF
V2
V1
V3
ATM
V4AUX1
