Fiche # 691f – By Pass (option)
Version 1.04a User guide ATEQ 6th series Page 1/1

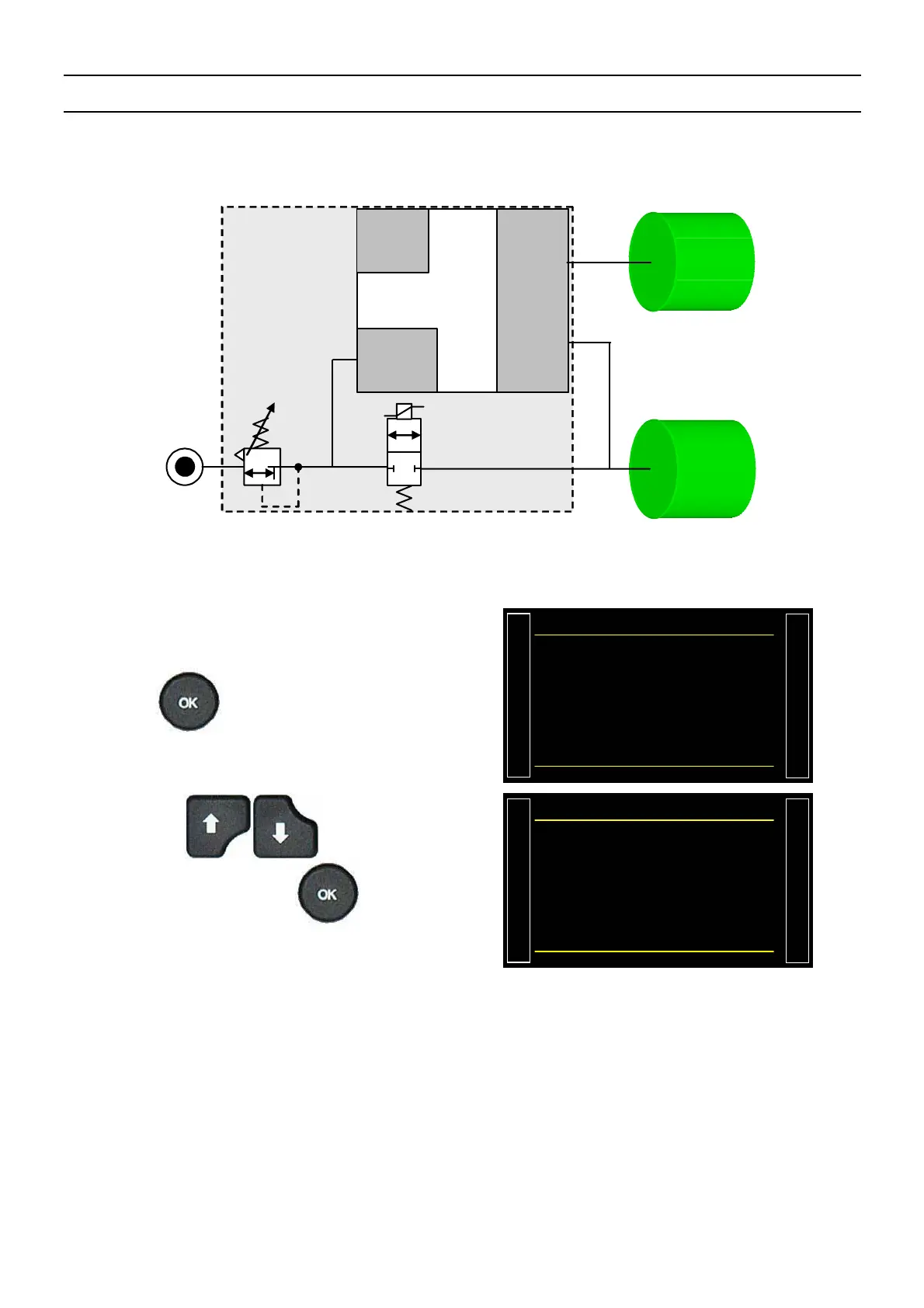

BY PASS (OPTION)
The option By-pass allows filling the test part quickly by increase the flow. This flow is passing
thruw an additional valve (option) in parallel of the standard valve of the device.
This valve is activated during the pre-fill, the fill or both and not activated during an auto-zero.
NETWORK
PRESSURE
TEST
OUTPUT
ELECTRONIC
PRESSURE
REGULATOR
FILL VALVE
(F1)
DUMP
VALVE (D)
EGALIZATION
VALVE (E1)
PIEZZO
SENSOR
By-pass
REF
OUTPUT
TEST
PART
REF
PART
ATEQ
F620
1. PROCEDURE
Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T(70%6+10
Ź BYPASS : No
More functions…
By using the arrows, select
"Yes" and validate with the
key. Then
adjust the pre-fill and fill values in the program
parameters.
2#4#/2T(70%6+10
Ź BYPASS : Yes Ż
More functions…
Note: adjust the pre-dump time parameter to 0 seconds for not dumping the part between the
pre-fill and the fill.
