Sheet #604u – Units function
Version 1.04a User guide ATEQ 6th series Page 1/4
UNITS FUNCTION
This function allows the operator to choose the pressure and leak measurement units.
The different unit systems are: SI (International metric system, mm
3
/s, cm
3
/s, cm
3
/min, cm
3
/h,
ml/s, ml/min and ml/h) USA/SAE (Anglo-Saxon unit system, inch
3
/s, inch
3
/min, inch
3
/h, ft
3
/s,
ft
3
/min and ft3/h) and CUSTOM measurement units.
If a custom measurement unit is used, it is possible to name it. This name will appear instead of
the unit.
Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
By using the
arrows, select
the units system.

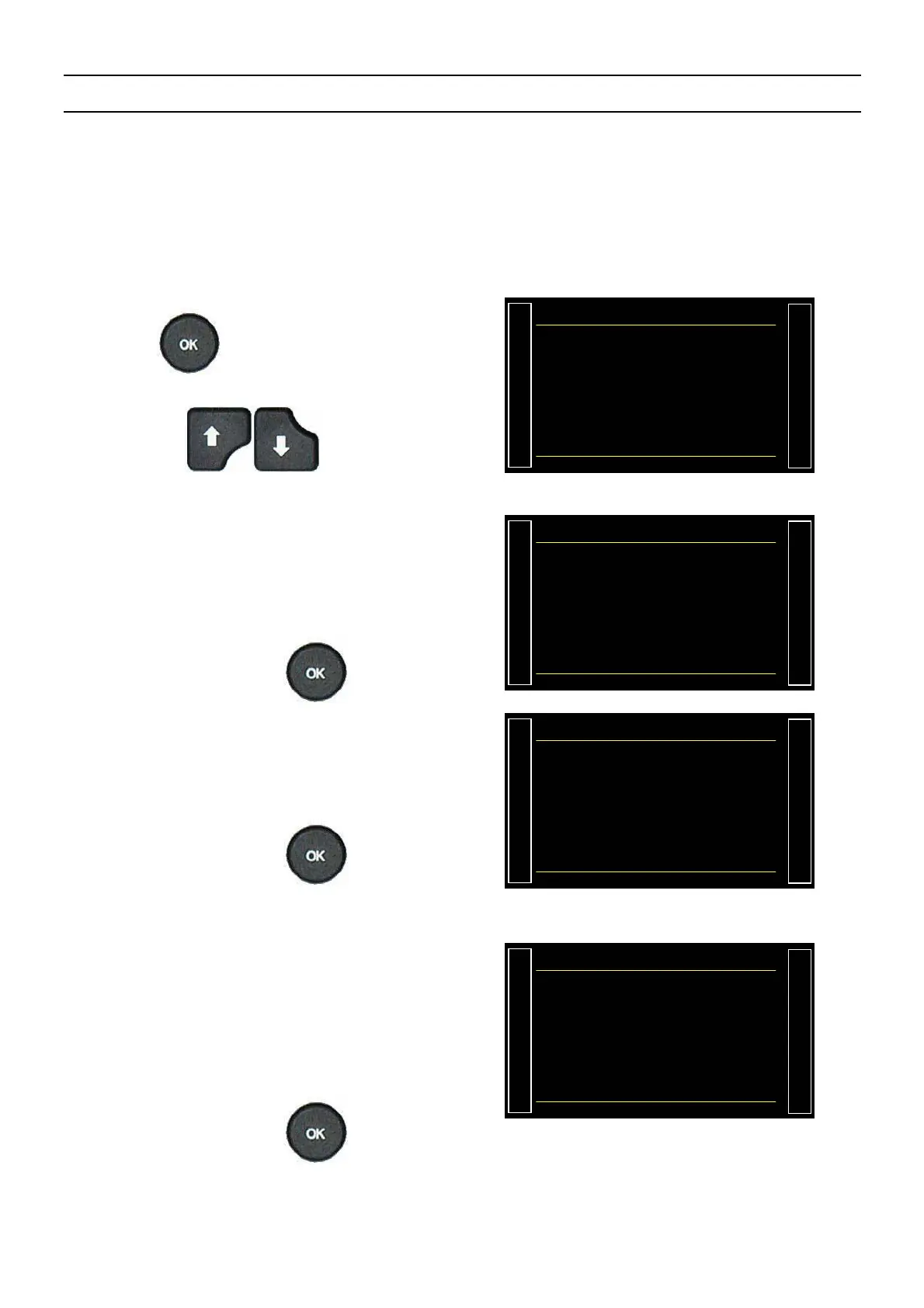

2#4#/2T
(70%6+10
Ź UNITS : SI
More functions…
SI:
SI Units System (Metric International System,
mm
3
/s, cm
3
/s, cm
3
/min, cm
3
/h, ml/s, ml/min
and ml/h).
Select the leak unit.
Then validate by pressing
.
2#4#/2T(70%6+10
Ź UNITS : SI Ż
More functions…
SAE:
SAE Units System (Anglo-Saxons Units,
inch
3
/s, inch
3
/min, inch
3
/h, ft
3
/s, ft
3
/min and
ft
3
/h).
Then validate by pressing
.
2#4#/2T(70%6+10
Ź UNITS : SAE Ż
More functions…
CUSTOM:
CUSTOM personalized measurement units.
The CUSTOM unit option allows calibrating
the device using a master leak. A learning
special cycle is necessary for this operation
(see the special cycle’s sheet). The activation
of this unit gives access to another special
cycle for checking.
Then validate by pressing
.
2#4#/2T(70%6+10
Ź UNITS : CUSTOM Ż
More functions…
To Next Page
