Sheet #612u – Rework limits
Version 1.04a User guide ATEQ 6th series Page 1/2

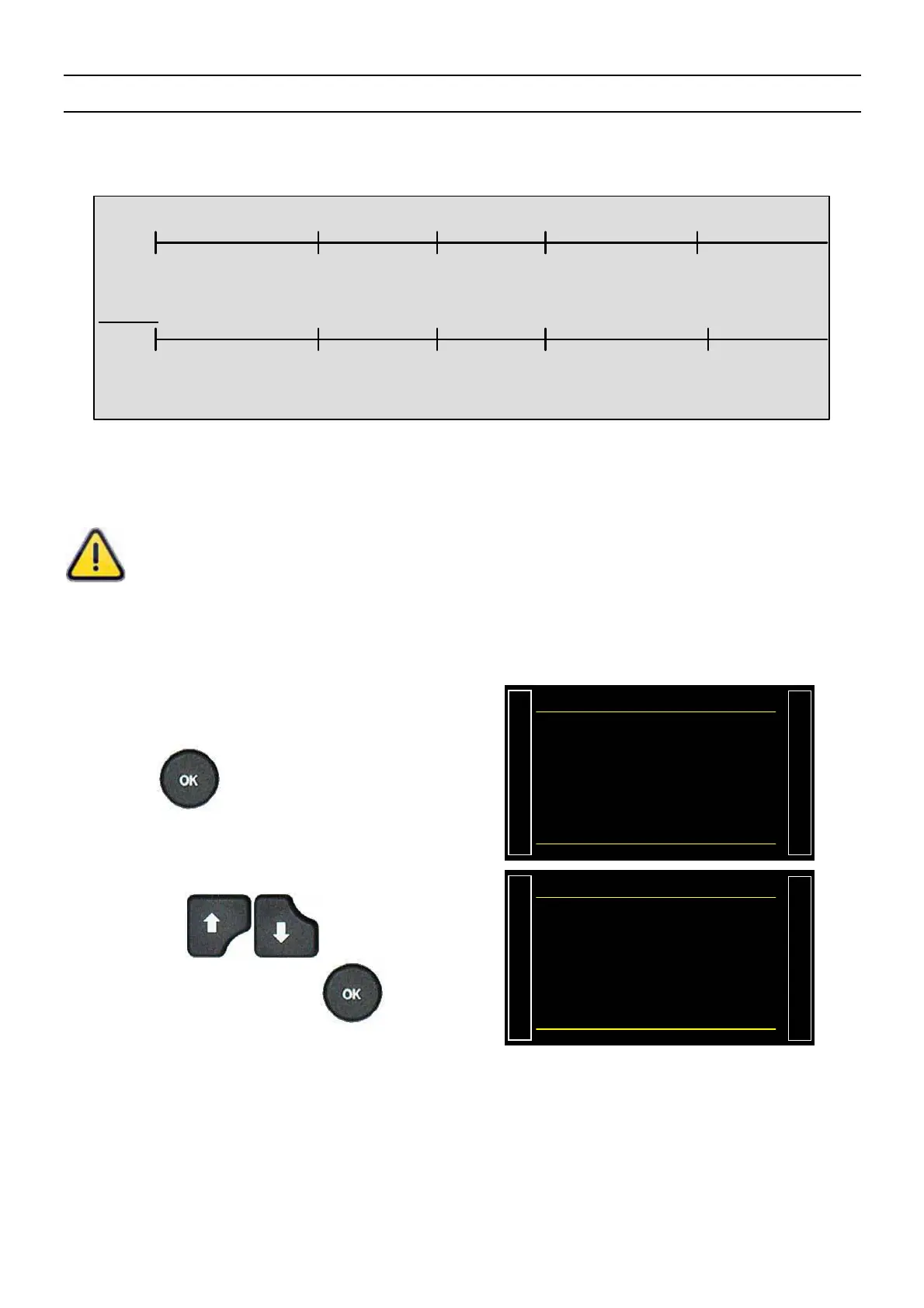

REWORK LIMITS
This option offers the option of two reject levels: normal reject level (the fail part cannot be repaired)
and a re-workable reject level (the part is fail but may be reworked to become acceptable). This
option is often used in casting processes, when parts may be treated via impregnation.
REFERENCE
FAIL LEVEL
REFERENCE FAIL
REWORK LEVEL
0
TEST FAIL
REWORK LEVEL
TEST FAIL LEVEL
PARTS
PASS
PARTS
RE-WORKABLE
PARTS
FAIL
0 10 20
Ex
ample
0 TO 10 OF THE PARTS ARE GOOD
10 TO 20 OF THE PARTS ARE RE-WORKABLE
ABOVE 20 THE PARTS ARE NOT RE-WORKABLE
The associated parameters to be set are: Test REWORK and Ref. REWORK.
For re-workable parts, with multi-head configuration on the central unit or on the heads
themselves, the Pass (OK) and Fail (NOK) outputs are both activated simultaneously.
When the recoverable reference reject value is zero, the program uses the
symmetrical opposite sign value of the recoverable test reject (example: if the
recoverable test reject is 10 Pa, then with the recoverable reference reject value set
at zero, the program assumes the recoverable reference reject to be -10 Pa).
1. PROCEDURE
Activate the function or check if i
t checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T
(70%6+10
ŹREWORK LIMIT : No
More functions…
By using the arrows, select
"Yes" and validate with the
key.
2#4#/2T(70%6+10
Ź REWORK LIMIT : Yes Ż
More functions…
