ATEQ PRIMUS F Series User Manual

Sheet #624u – Flow level function
Version 1.04a User guide ATEQ 6th series Page 1/1

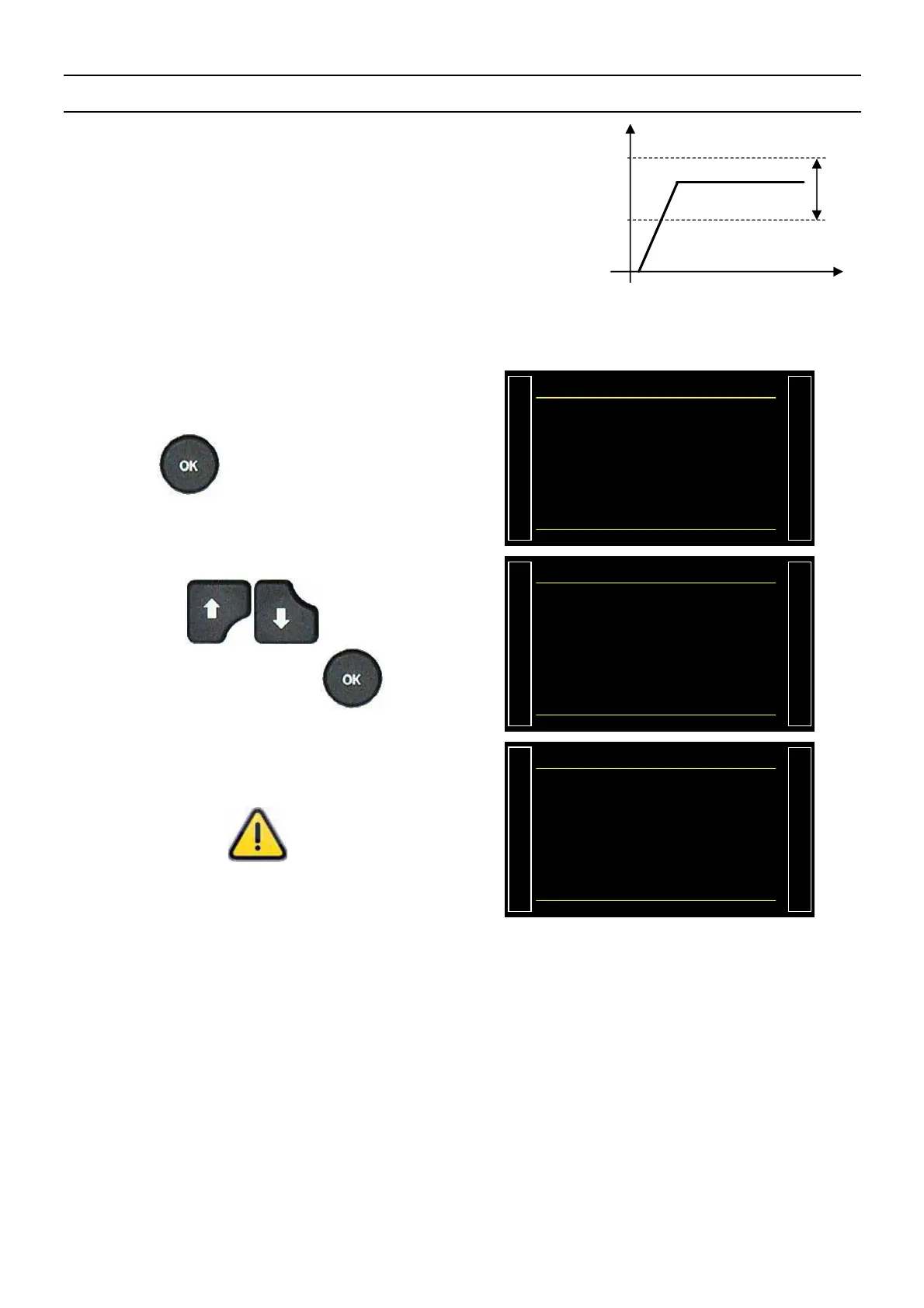

FLOW LEVEL FUNCTION
The flow level function adds in the parameters a minimum fail
parameter.
If the measurement result is below this level the part is
declared fail.
Min
Fail
Pass
parts
Max
Fail
LEAK
1. CONFIGURATION
Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T

(70%6+10
ŹFLOW LEVEL : No
More functions…
By using the arrows, select
"Yes" and validate with the
key.
2#4#/2T(70%6+10
Ź FLOW LEVEL : Yes Ż
More functions…
Back to the test program parameters.
Then the "Min Fail" parameter appears.
As the "Flow Level" function is activated, the
"Reference Fail" parameter disappears.
2#4#/2T
Press. UNIT : mbar
Max FIL : 750
Min FILL : 450
Set FILL : 600
LeakUnit : Pa
Max FAIL 50
Ź Min FAIL : 0
FUNCTIONS
