Sheet #610u – End of cycle
Version 1.04a User guide ATEQ 6th series Page 6/7
1.5. "DOUBLE RESET + DUMP" CYCLE END (AUTOMATIC DUMP)
If the part is OK, the Pass part relay is activated as soon as the test time is finished, and
remains so until the next cycle is launched. At the end of the dump time, the end of cycle relay
is activated (or after coupling time B if a value has been set for it).
If the part is Fail, as soon as the test time is over, the dump phase is carried out and the Fail
part relay is activated
A first press on the RESET
key or activation of the RESET input cancels the result relay.
The End of Cycle is obtained by pressing a second time on the RESET
key or by
activating the RESET input again.

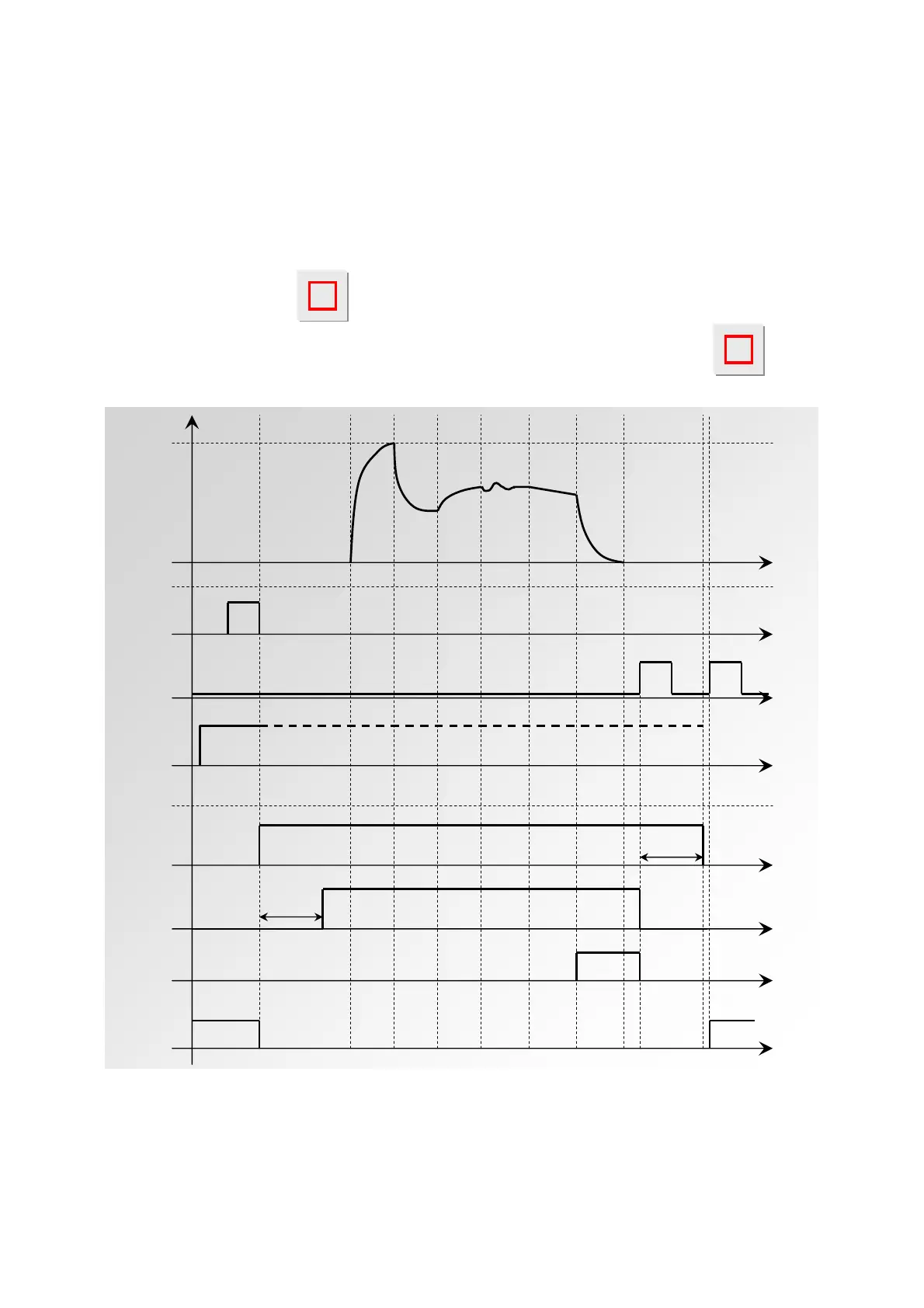

PRESSURE
START
RESET
A P-F P-D F S T D
t
t
t
t
t
t
t
Program
n°
Auto
connector A
t
FAIL part
Time B
Time B
Auto
connector B
End of Cycle
Test cycle
Control actions
t mini
t mini
t mini
Active
Inactive
Active
Inactive
The active program is the one selected before starting up. It remains active even if the program
inputs on the connector are no longer activated. This selection can only be modified during the
inter cycle period.
