ATEQ PRIMUS F Series - Reference Volume; Presentation; Parametring

Sheet #615u – Reference Volume
Version 1.04a User guide ATEQ 6th series Page 1/1
REFERENCE VOLUME
1. PRESENTATION
The program uses the programmed test volume to measure the normal flow at the test port.
When the reference port volume is different the test port volume, it is possible to set parameters
for the exact value of the reference volume to obtain correct measurements in the event of
results displaying negative values.
This function may only be used with flow measurement units: cm
3
/min, cm
3
/s, cm
3
/h, mm
3
/s,
ml/s, ml/min or ml/h.
2. PARAMETRING
Ensure that the reject unit is a flow unit (see
above).
Activate the function or check if it checked.

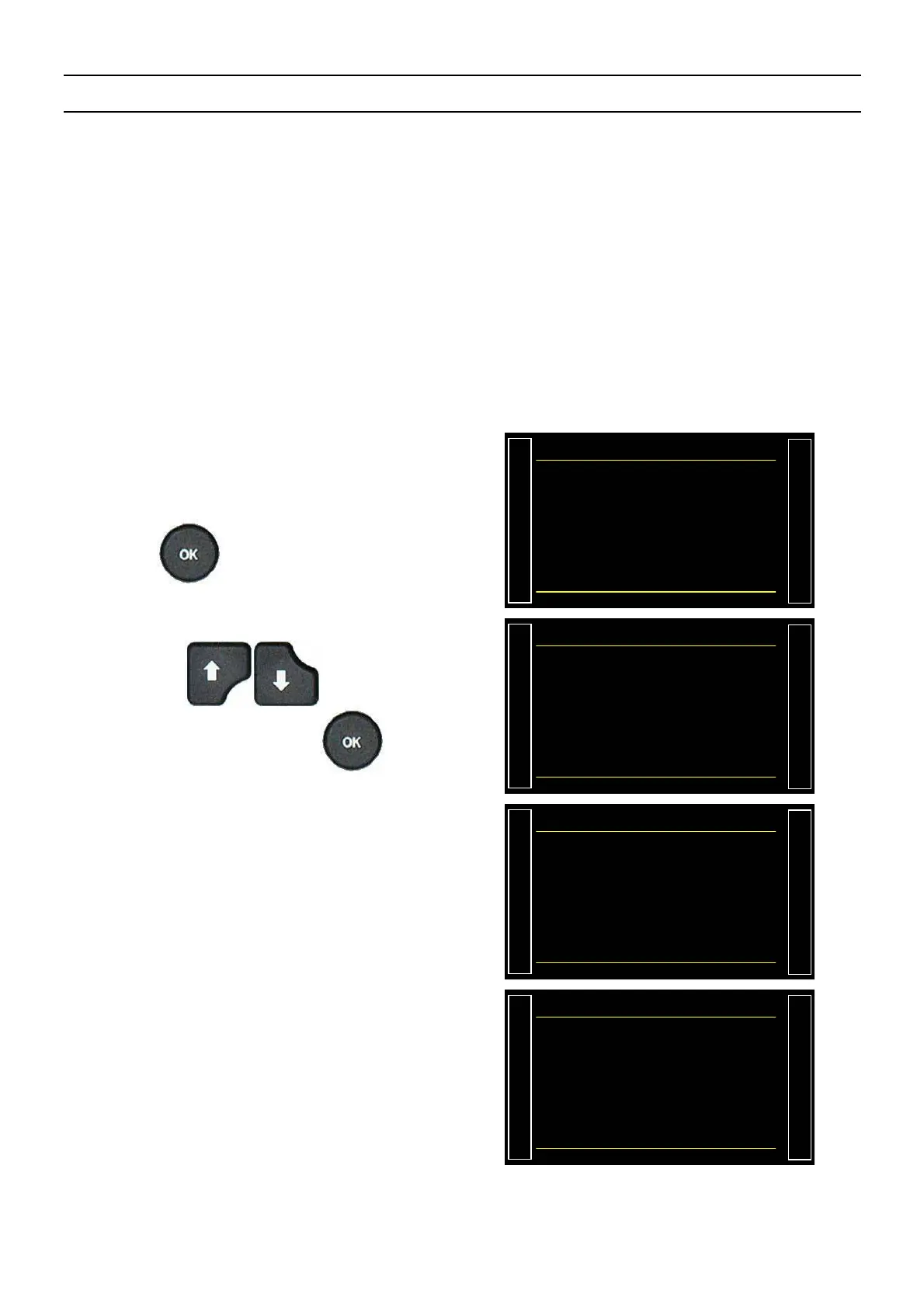

Press the
key, the cursor slide to the
right hand.activée.
2#4#/ 2T

(70%6+10
ŹREF. VOLUME : No
More functions…
By using the arrows, select
"Yes" and validate with the
key.
2#4#/ 2T(70%6+10
REF. VOLUME : Yes Ż
More functions…
Adjust the reference volume value.


(70%6

4'(81.7/
Ź Ref. VOL.: 15.00
This parameter is also available in the
program parameters under the name
"Ref. VOL.".
2#4#/2T
Pa DISPLAY : No
REJECT CALC : Pa
Volume UNIT : cm3
VOLUME : 14.91
Ź Ref. VOL. : 15.00
Test FAIL : 0.298
Ref. FAIL : 0.000
FUNCTION
