Sheet #682u – Accessories
Version 1.04a User guide ATEQ 6th series Page 1/1
ACCESSORIES
1. POWER SUPPLY
Three ways for powering the instrument, this is depending of its installation and following the
option at the order. There's two ways for powering with 24 V DC.

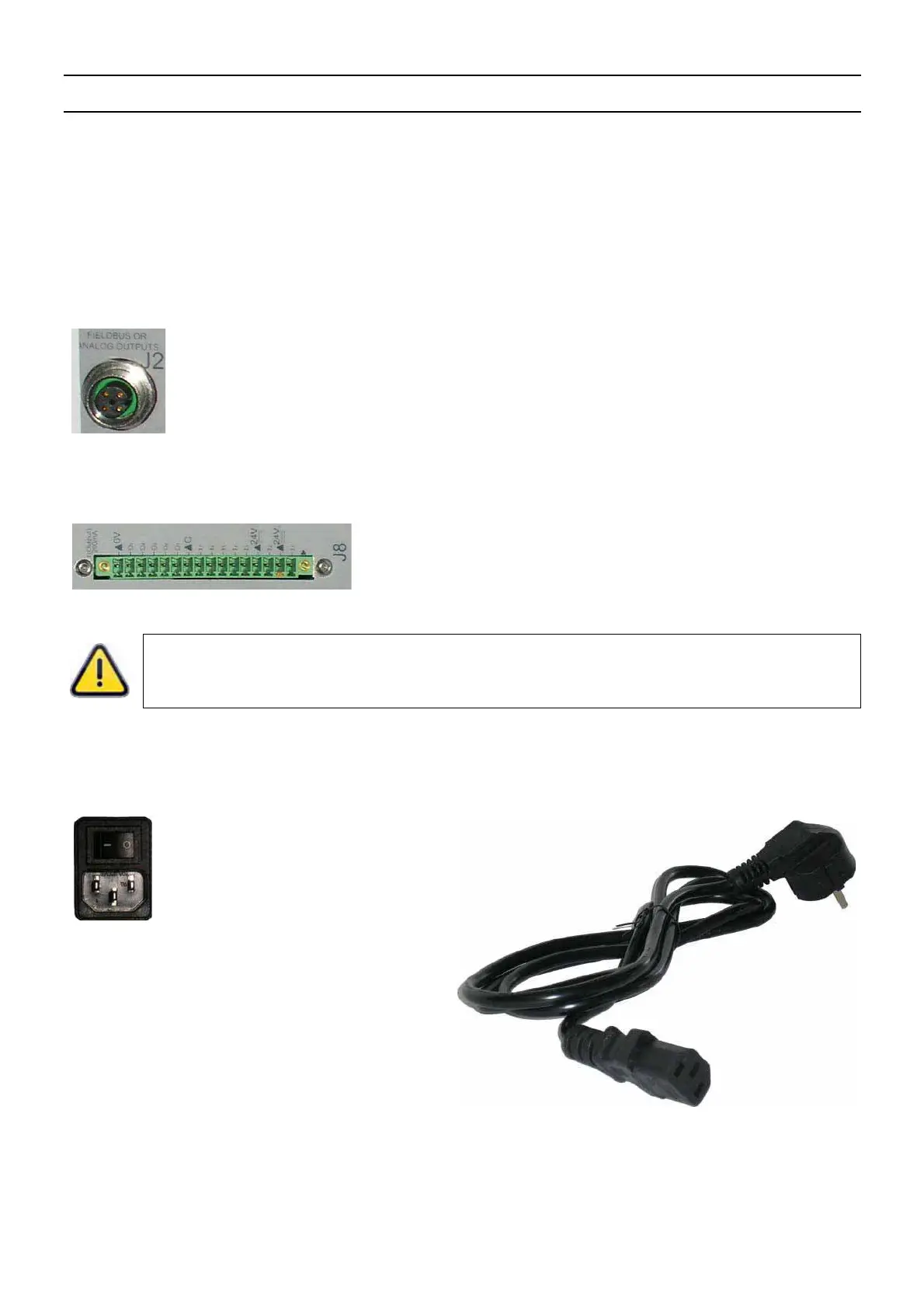

1.1. SUPPLY THE DEVICE WITH 24 V DC - 2A ON THE M12 CONNECTOR
Connect the power supply fitted with the device. This option is not possible if the
connector is used for the Fieldbus network. (Devicenet / Profinet).
¾ Pin 2: + 24 V DC.
¾ Pin 4: ground 0 V.
1.2. SUPPLY THE DEVICE WITH 24 V DC - 2A ON THE RELAY BOARD
Connect by using the following mean:
¾ 24 V DC on the pins 2 or 4.
¾ 0 V on the pin 16.
For North America, the standard way to power the instrument is to supply 24V
on the relay board connector.
1.3. SUPPLY WITH 100 / 240 V AC AND ON/OFF SWITCH
With 100 to 240 V DC - 50 W
network with built in power
supply. The instrument is used
for sampling or laboratory
setting: power the instrument
with a power cord (instrument
with built in power supply).
I : ON / O : OFF.
The wire is fitted with the device.
