ATEQ PRIMUS F Series - Automatic Connectors Function

Sheet #605u – Automatic connectors function
Version 1.04a User guide ATEQ 6th series Page 1/1

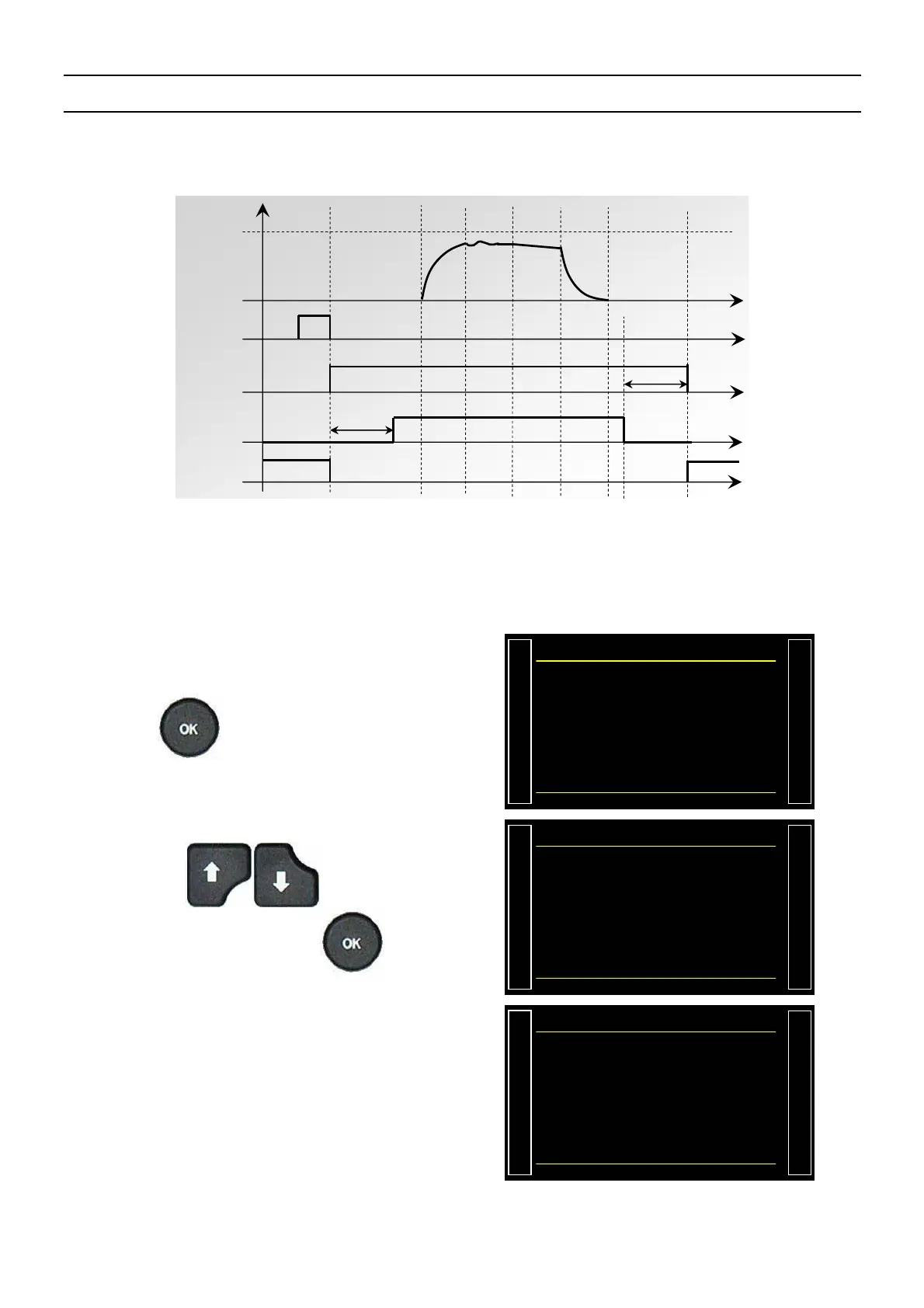

AUTOMATIC CONNECTORS FUNCTION
The automatic connector is a pneumatic control enabling the pilot of an external logic (valve,
pneumatic device…). This control is activated at the start of the cycle and is released at the end
of the cycle.
START
W F S T D
A
utomatic
Connector A
Time B
Time B
A
utomatic
Connector B
End of cycle
Active
Inactive
Active
Inactive
If several programs are sequenced, the automatic connectors are activated according to the
times set as parameters in the first program and are deactivated according to the times set as
parameters in the last program in the sequence.
Once an automatic connector has been activated, it will remain active for all cycles between the
first and last program in the sequence.
Activate the function or check if it checked.
Press the
key, the cursor slide to the
right hand.
2#4#/2T

(70%6+10
Ź AUTO CONNECT : No
More functions…
By using the arrows, select
"Yes" and validate with the key.
2#4#/2T

(70%6+10
AUTO CONNECT : Yes Ż
More functions…
Enter the values for the associated
parameters: "COUPLING A" and
"COUPLING B".


(70%6

#761%100'%
Ź COUPL. A : 0.0 s
COUPL. B : 0.0 s
