Sheet # 693u –Pneumatics connectors
Version 1.04a User guide ATEQ 6th series Page 1/2

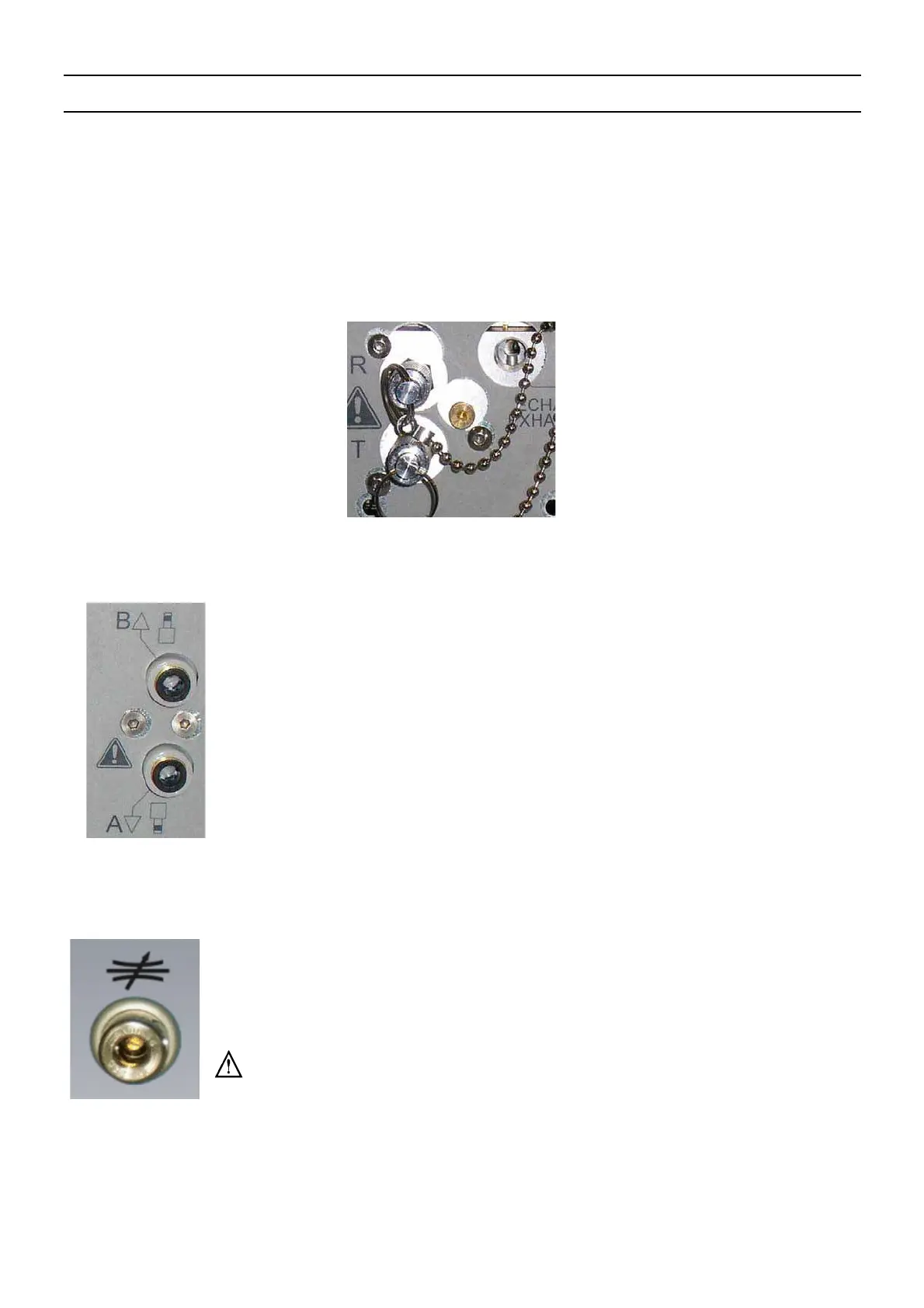

PNEUMATICS CONNECTORS
The pneumatics connectors are located on the rear side.
1. PNEUMATICS TEST OUTPUTS
These outputs enable parts to be connected (test, reference). The pressurization output is used
for the addition of ATEQ accessories (Y valve).
Inputs / Outputs on the rear side of the F620:
Reference Output R >
< Exhaust Output
< Pressurization Output
Test Output T >
2. AUTOMATIC CONNECTOR A AND B (OPTION)
To drive pneumatics caps.
3. QUICK CONNECTORS (OPTION)
One quick connector may be mounted on the front panel of the
instrument.
This connector is to check the calibration. It's used to check the test
circuit and enables, by use of a calibrated leak, calculation of the
equivalent pressure drop.
As this connector is part of the measurement circuit, all its
connections must be air tight.
