ATEQ PRIMUS F Series User Manual

Sheet # 692/1u – Electric connectors (F610)
Version 1.04a User guide ATEQ 6th series Page 3/7

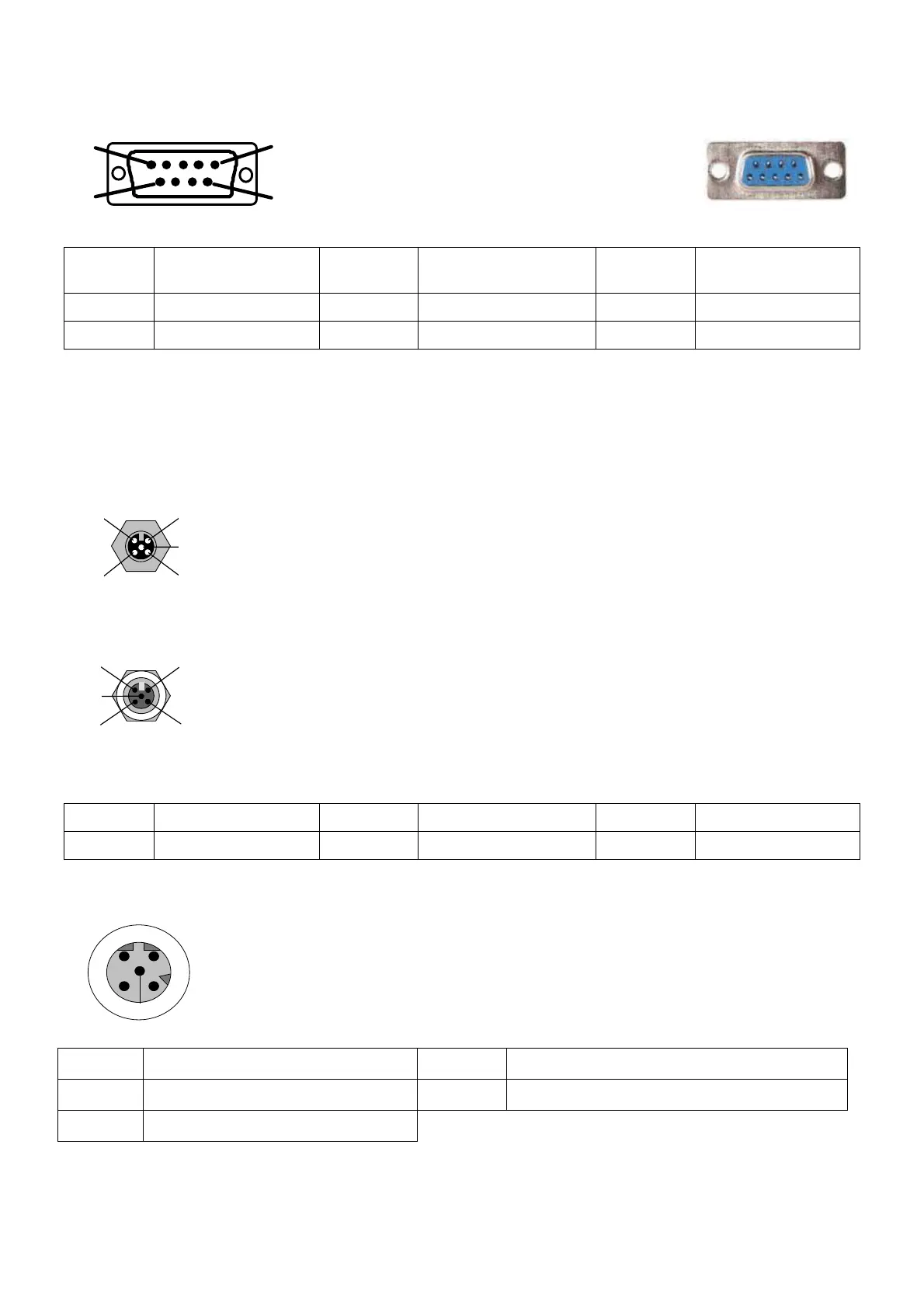

3.2.2. Connector in Profibus mode
1
5
9
6
Profibus: SubD 9 points female connector.
Pin 1 PE (ground) Pin 4
CNTR – A (repeater
control signal)
Pin 7
Not used
Pin 2 Not used Pin 5 DGND (logic ground) Pin 8 Data Line B
Pin 3 Data Line A Pin 6 VP (supply) Pin 9 Not used
3.3. DEVICENET,PROFINET OR ETHERNET CONNECTORS (OPTION)
3.3.1. Devicenet Input (option)
2 1
4
3
5
To connect to others ATEQ devices (M12 male connector).
3.3.2. J2 Devicenet output (option)
2
1
4
3
5
To connect to others ATEQ devices (M12 female connector).
3.3.3. Wiring Devicenet
Pin 1 Drain Pin 3 V- Pin 5 CAN_L
Pin 2 V+ Pin 4 CAN_H
3.3.4. Input and output Profinet
4
3
1
2
5
Ethernet / M12 pin assignement.
M12 female, D coded.
Pin 1 Ethernet Tx + (Transmit Data +) Pin 3 Ethernet Tx - (Transmit Data -)
Pin 2 Ethernet Rx + (Receive Data +) Pin 4 Ethernet Rx - (Receive Data -)
Pin 5
Not used
