Sheet # 676f – Front panel and interfaces
Version 1.04a User guide ATEQ 6th series Page 3/3
5. QUICK DISCONNECT (OPTION)

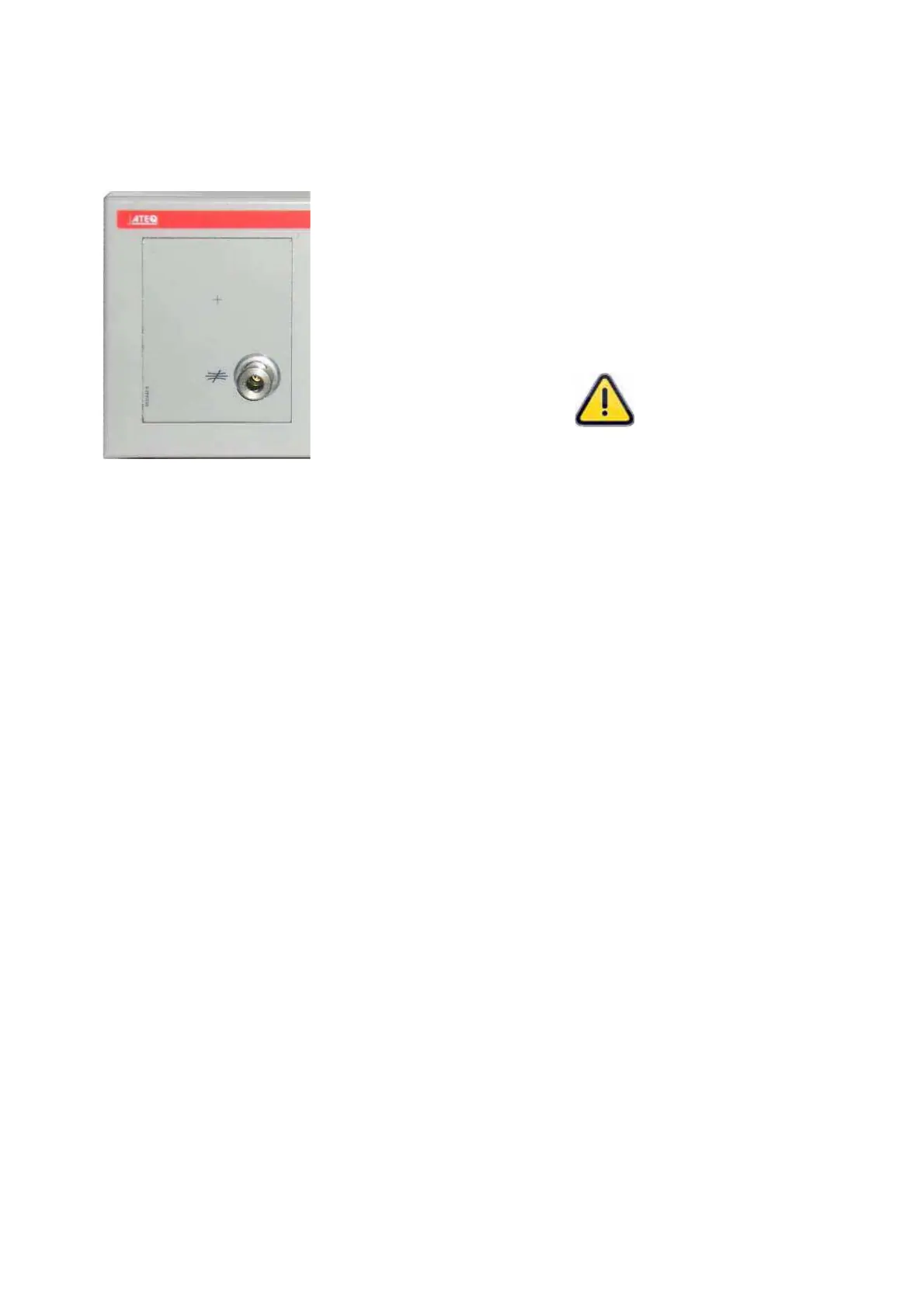

An optional Staublï quick disconnect is installed on the front
panel of the instrument.
As the quick disconnect is part of the measurement circuit,
it can be used with a calibrated orifice to simulate a leak in
the part, calibrate the instrument with different leak test
units and check the calibration of the instrument.
The second function is to check the value of the test
pressure shown by the instrument with a pressure gauge or
the ATEQ Leak/Flow Calibrator (CDF).
As this connector is part of the measurement circuit, all
its connections must be air tight.
