Sheet #652u – RS232
Version 1.00a User guide ATEQ 6th series Page 1/8
RS232
The "RS232" configures the RS232 link parameters. The RS232 can be connected to a printer
or a computer for data collection.

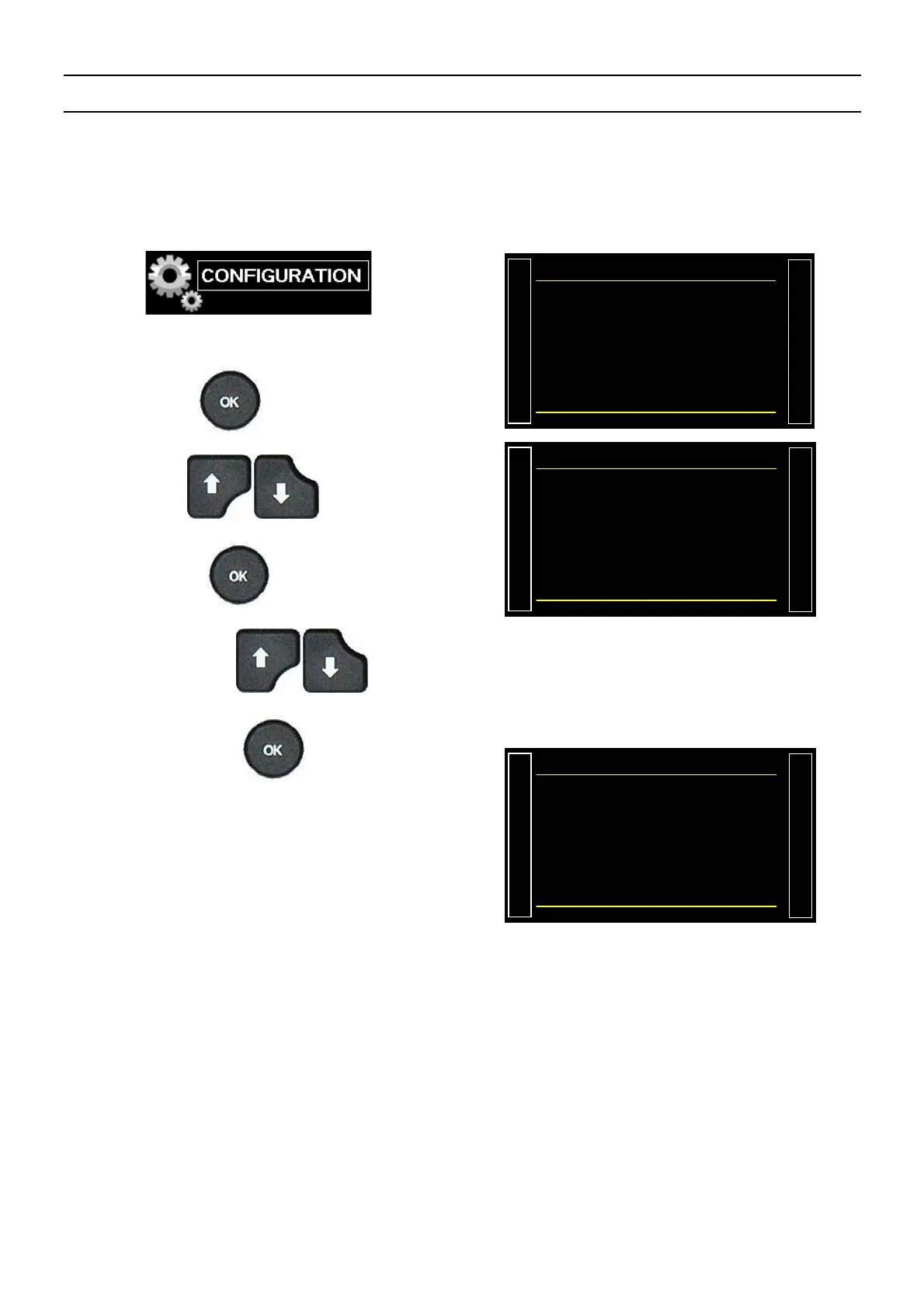

1. PROCEDURE
From the "CONFIGURATION" menu, select
the "AUTOMATISM" menu and then press the
button
/#+0%10(+)74#6+10
LANGUAGE : English
PNEUMATIC
Ź AUTOMATISM
SECURITY
MISCELLANEOUS
By using the arrows, select
the "RS232" menu and validate with the
key.
#+0%10(+#761/#6+5
USB : PRINTER
Ź RS232 : PRINTER
Date & Time
INPUTS CONFIG.
Then by ising the arrows
select the "PRINTER" menu, and then validate
with the
key.
Supervision : the device switches
automatically in this mode when it is under
external program control, example : Winateq.
Printer: (factory default) standard RS232
protocol to print (or send the frame) the
program parameters as well as test results.
When the option is activated, the RS232
broadcast the test results after each cycle.
Modbus: Configure the Modbus link (option) if
installed. The frames parameters, RS
parameters (speed, serial port) have to be set.
/#+0%10(+#761/45
Ź SUPERVISION
PRINTER
MODBUS
To Next Page
