Sheet #687u – Displaying results in flow unit
Version 1.04a User guide ATEQ 6th series Page 1/3
DISPLAYING RESULTS IN FLOW UNIT
The sensor that measures the leak is making a pressure drop measurement. To convert the
pressure measurement in flow unit, the instrument needs to be given the volume of the test
circuit.

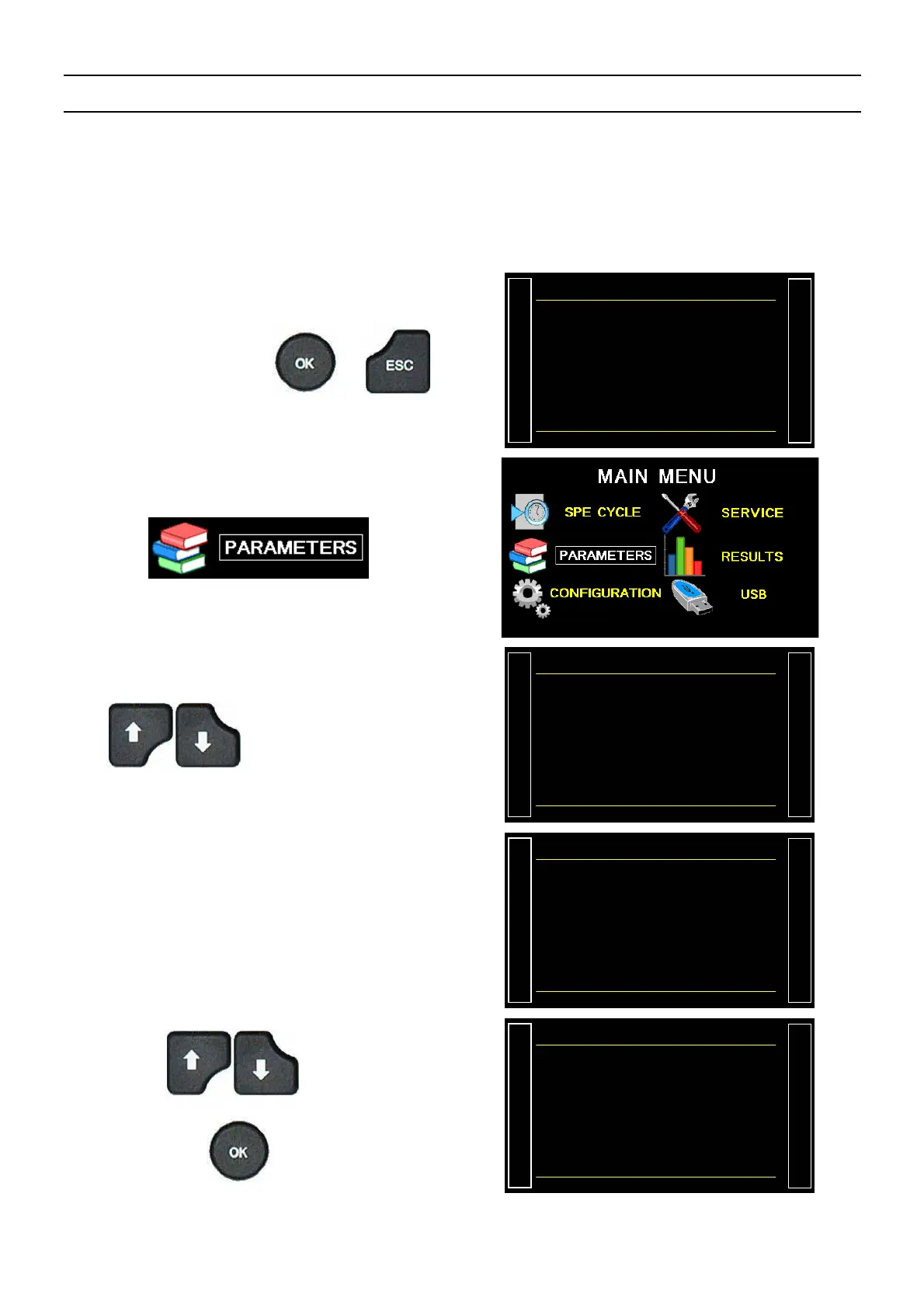

1. PROCEDURE
To access to the parameters menu, from the
cycle menu, press the
or
keys.
Pr 001
LEAK TEST
Then select the
menu
Select a program by using the
keys. Here program
number 1. The parameters are displayed.
2#4#/'6'45
Ź Copy-Paste
Pr:01 LEAK TEST
Pr:02 -----------------
Pr:03 -----------------
Pr:04 -----------------
Pr:05 -----------------
Pr:06 -----------------
Pr:07 -----------------
Adjust or check the parameters.
2#4#/2T
TYPE : LEAK TEST
COUPL A : 0.0 s
FILL TIME : 1.0 s
STAB TIME : 4.0 s
TEST TIME : 2.0 s
DUMP TIME : 0.8 s
Press. UNIT: mbar
Ź Max FILL : 750.0
With the keys, go to the
"Leak Unit" parameter and validate with the
key.
2#4#/2T
STAB TIME : 4.0 s
TEST TIME : 2.0 s
DUMP TIME : 0.8 s
Press. UNIT: mbar
Max FILL : 750.0
Min FILL : 450.0
Set FILL : 600.0
Ź LeakUnit : Pa
To Next Page
