ATEQ PRIMUS F Series User Manual

Sheet #606u – Calibration check function
Version 1.04a User guide ATEQ 6th series Page 2/3
2. SPECIAL CYCLE

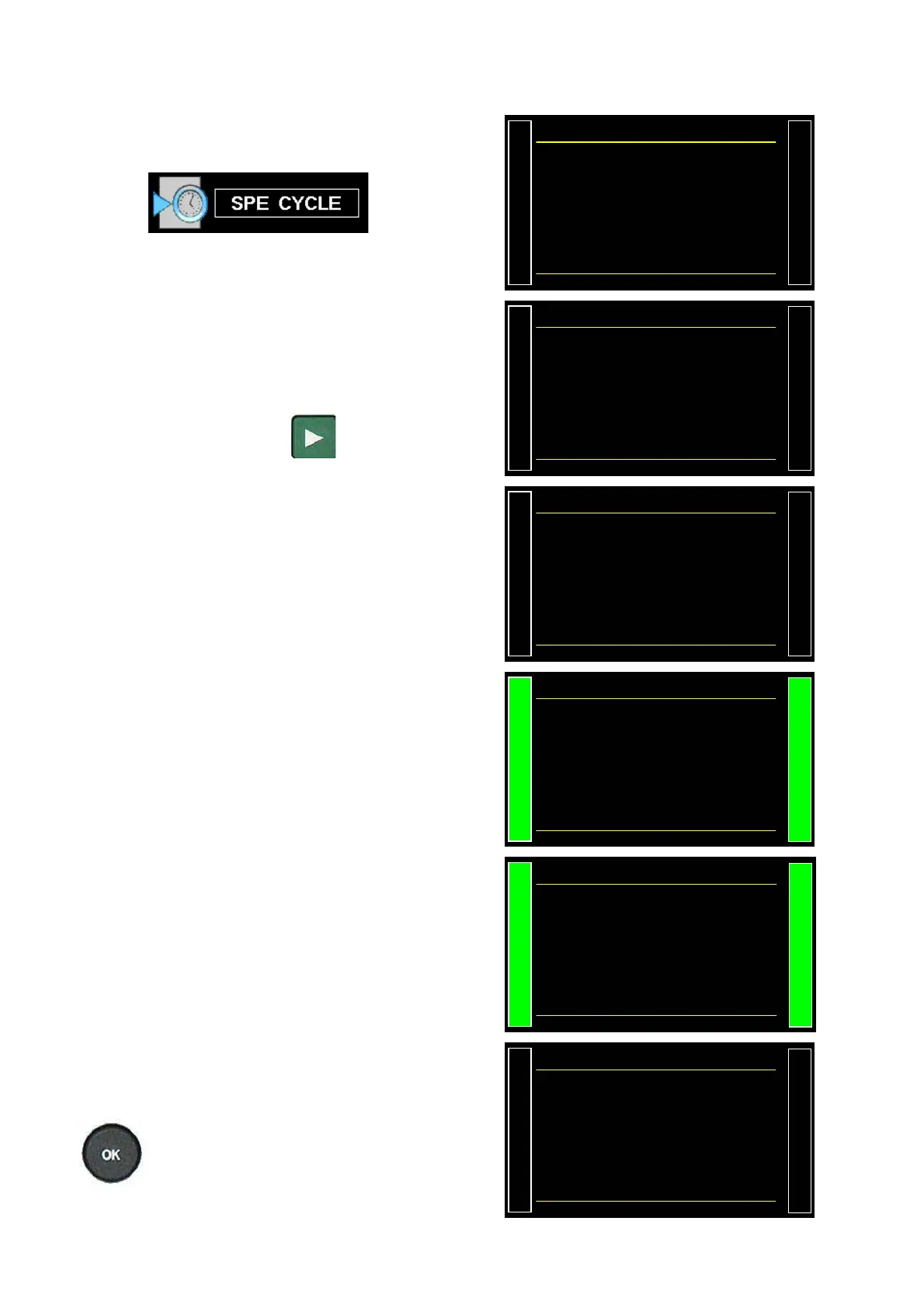

From the main menu, enter the special cycle
menu.
In the special cycle menu, select
"Check Test Result".
52'%;%.'
none
Regul. adjust
Infinite fill
Piezo auto zero
Ź Check Test Result
Remind: it's important to have a pass part
plugged.
The cycle screen is displayed confirming the
special cycle selection. Press the
"START CYCLE"
key.
52'%;%.'
CheckTest
Pr 001
LEAK TEST
The learning special cycle carry out the
following steps:
FILL / STABILIZATION / TEST et
CHECK TEST

600.0
mbar
CHECK TEST
050
Pa
22
Pr1
Pa
1.4 s
At the end of the special cycle, the result must
be pass (OK).

600.0
mbar
OK
50
Pa
22
Pr1
Pa
READY
Example with flow unit and Pascal display.

600.0
mbar
OK
0.300
cm3/mn
0.200 cm3/mn
20 Pa
Pr1 READY
It's possible to check the recorded parameters
by the special cycle by pressing the
.key just after the special cycle end.
T(70%6%*'%-6'5
Ź Measure : 90.0
Max value : 100.0
% Drift : 20
CheckTime : 5.0 s
