Sheet #610u – End of cycle
Version 1.04a User guide ATEQ 6th series Page 2/7
1.1. "AUTOMATIC RESET" CYCLE END
If the part is OK, the Pass part relay will be activated as soon as the test ends and remain so
until the start of the following cycle. Following the dump time, the end of cycle relay is activated.
If the part is fail, the Fail part relay is activated as soon as the test is completed. The instrument
automatically dumps and sends an end of cycle signal. A new cycle can then be started.

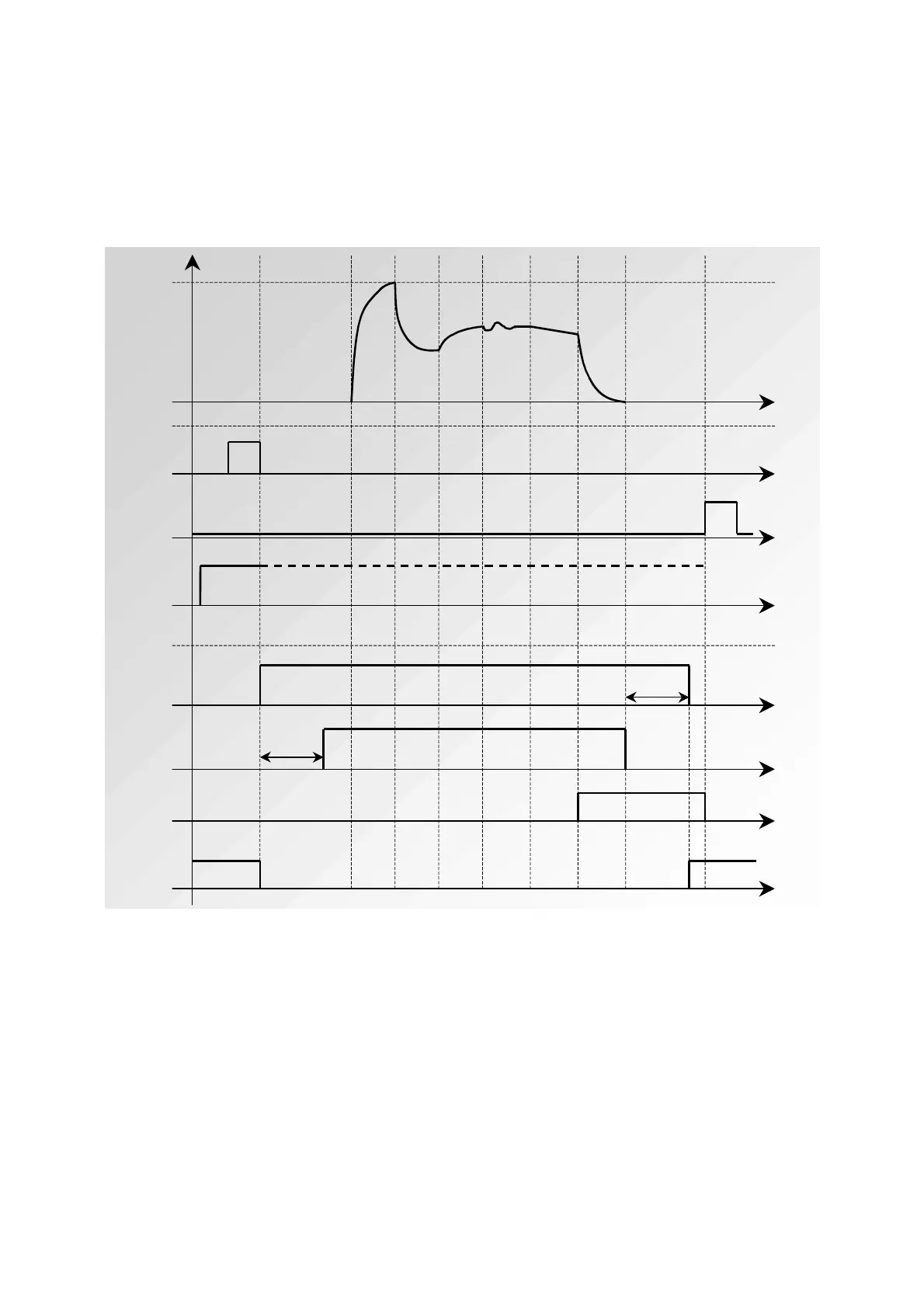

PRESSURE
START
Reset
AP-FP-DFSTD
t
t
t
t
t
t
t
Program
Number
Automatic
Connector A
t
Pass part or
Fail part
B time
B time
Automatic
connector B
End of cycle
Test cycle
Orders actions
t mini
t mini
t mini
Active
Inactive
Active
Inactive
The active program is the one selected before starting up. It remains active even if the program
inputs on the connector are no longer activated. This selection can only be modified during the
inter cycle period.
To return to program 1, when a cycle is not in progress, press any program selection inputs.
