Sheet # 692/2u – Electric connectors (F620)
Version 1.04a User guide ATEQ 6th series Page 2/8

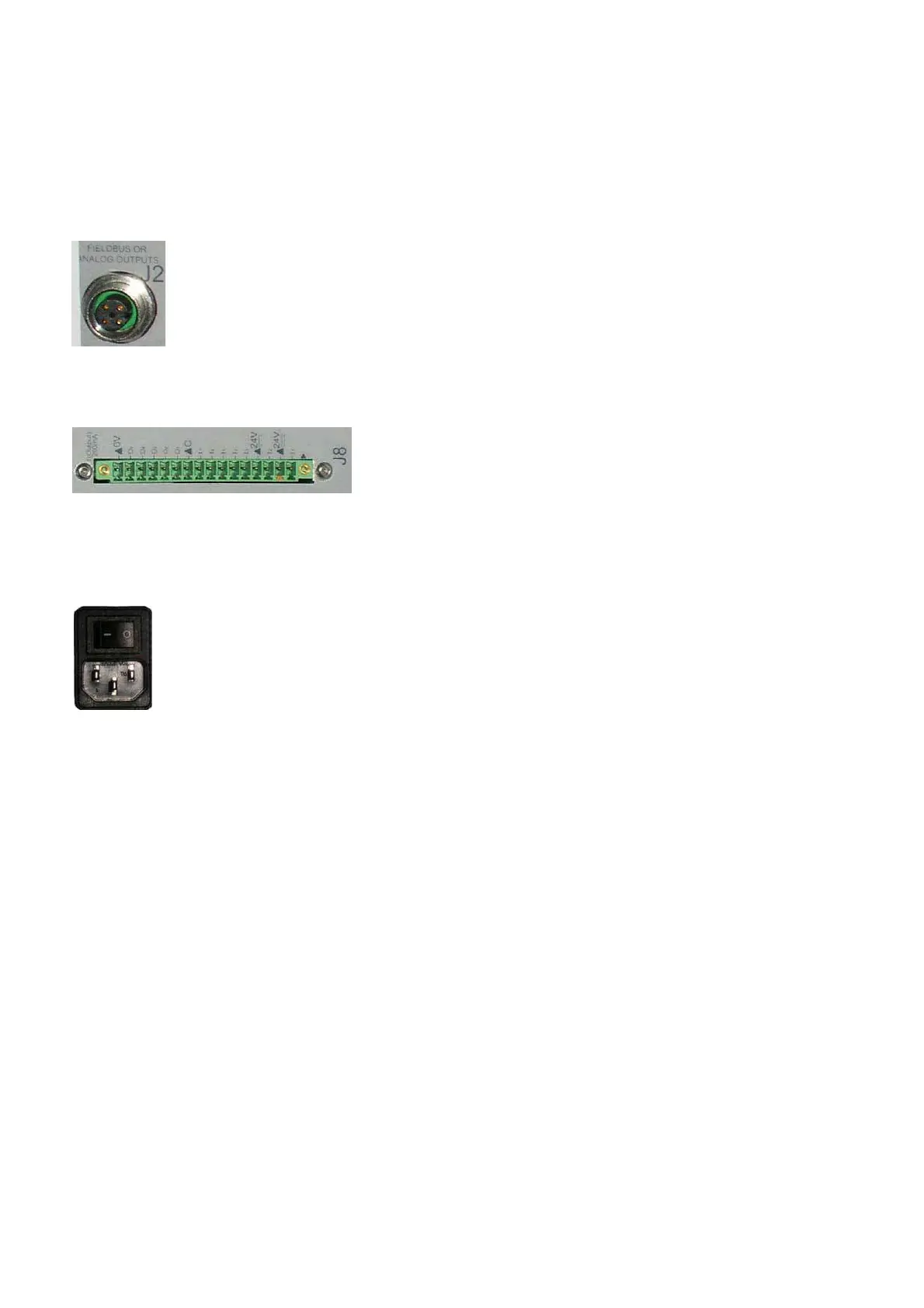

2.1. SUPPLY THE DEVICE WITH 24 V DC
Three means are available to supply the device following its configuration.
2.1.1. Supply the device with 24 V DC - 2A on the M12 connector
Connect the power supply fitted with the device. This option is not possible if the
connector is used for the Fieldbus network.
2.1.2. Supply the device with 24 V DC - 2A on the relay board
Connect by using the following mean:
¾ 24 V DC on the pins 2 or 4.
¾ 0 V on the pin 16.
See the paragraph 2.3 "Connector I/O all or nothing".
2.1.3. Power supply with 100 / 240 V AC and On/Off switch (option)
Supply the ATEQ F620 with the built in power supply, with a voltage between 100
and 240 V AC.
I: ON / O: OFF.
