ATEQ PRIMUS F Series User Manual

Sheet # 692/7u – Electric connectors (F670)
Version 1.04a User guide ATEQ 6th series Page 5/7

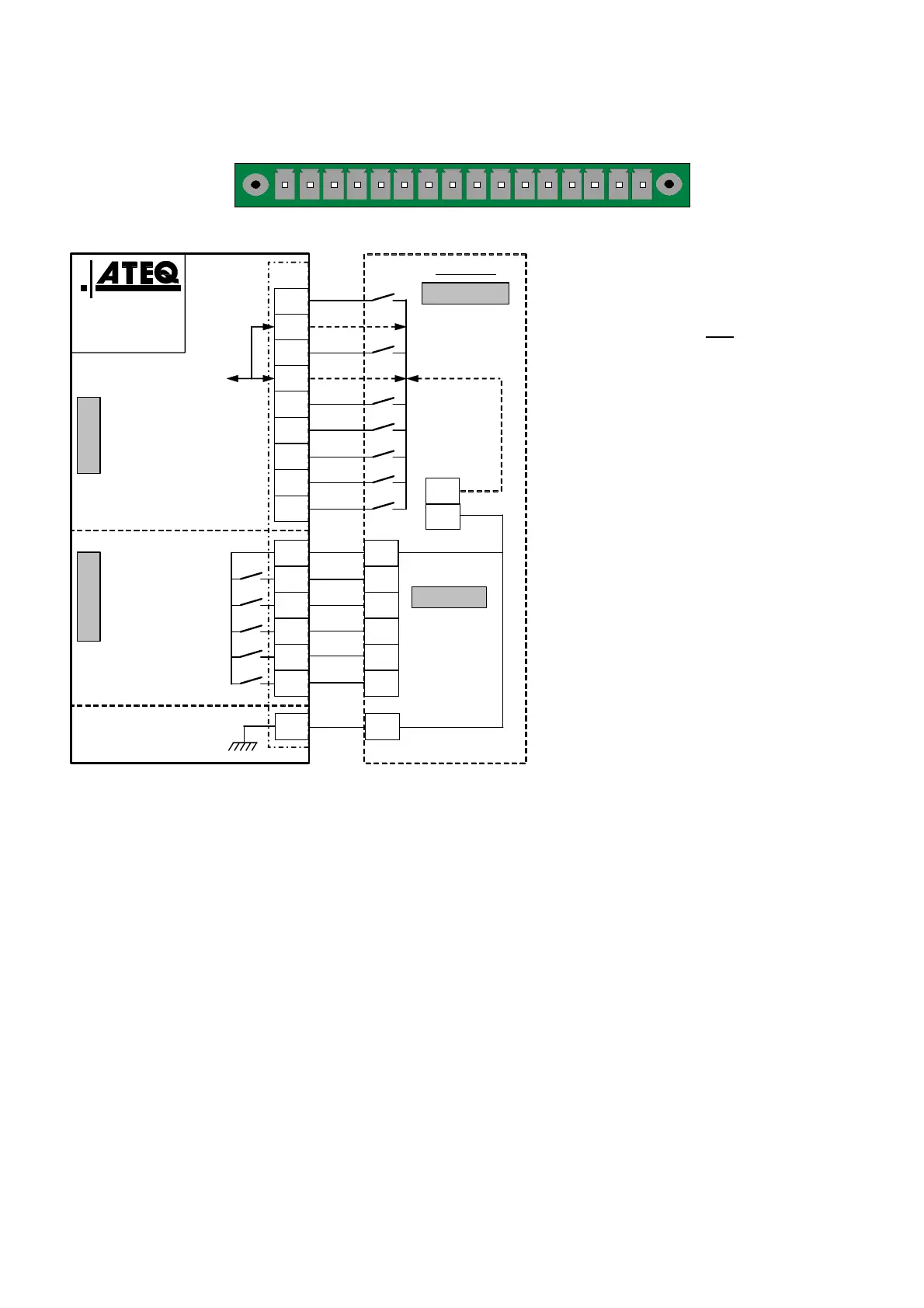

2.6.1. J3 connector (I/O Inputs/Outputs) graphical representation
1 2 3 4 5 6 7 8 9 10111213141516
2.6.1. 1) PLC in NPN mode connection
I
1
(Reset)
Customer
Input boards
16/32 programs
I
2
(Start)
I
3
(Pr 1 + 1)
I
4
(Pr 2 + 1)
Good part
Common
Test fail part
Reference fail part
Alarm
End of cycle
24 V DC
24 V DC
ATEQ or customer
I
6
(Pr 8 + 1)
I
5
(Pr 4 + 1)
I
7
(Programmable input)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NPN MODE
Ground
+ 24 V DC
J3
INPUTS OUTPUTS
OUTPUTS
+
-
INPUTS
Customer
0 V
(0,3 A max)
Note: The 24V power supply must
be provided by the internal power
supply of the ATEQ instrument
(0,3A maximum) OR
through an
external power supply provided by
the customer.
In the case of customer external
supply, the ATEQ instrument can
be supply by the 2 and 4 pins on
the J3 connector too.
