Sheet # 698f – Burst Test
Version 1.04a User guide ATEQ 6th series Page 1/4
BURST TEST
1. BURST TEST (OPTION)
The burst test allows following up the pressure which the part will burst.
To see the burst pressure, a pressure rise is generated with steps, once the pressure is
dropping quickly, this pressure is recorded and the device will check if it is between the
programmed thresholds.
The burst test runs currently only with volumes with a few tens cm
3
.

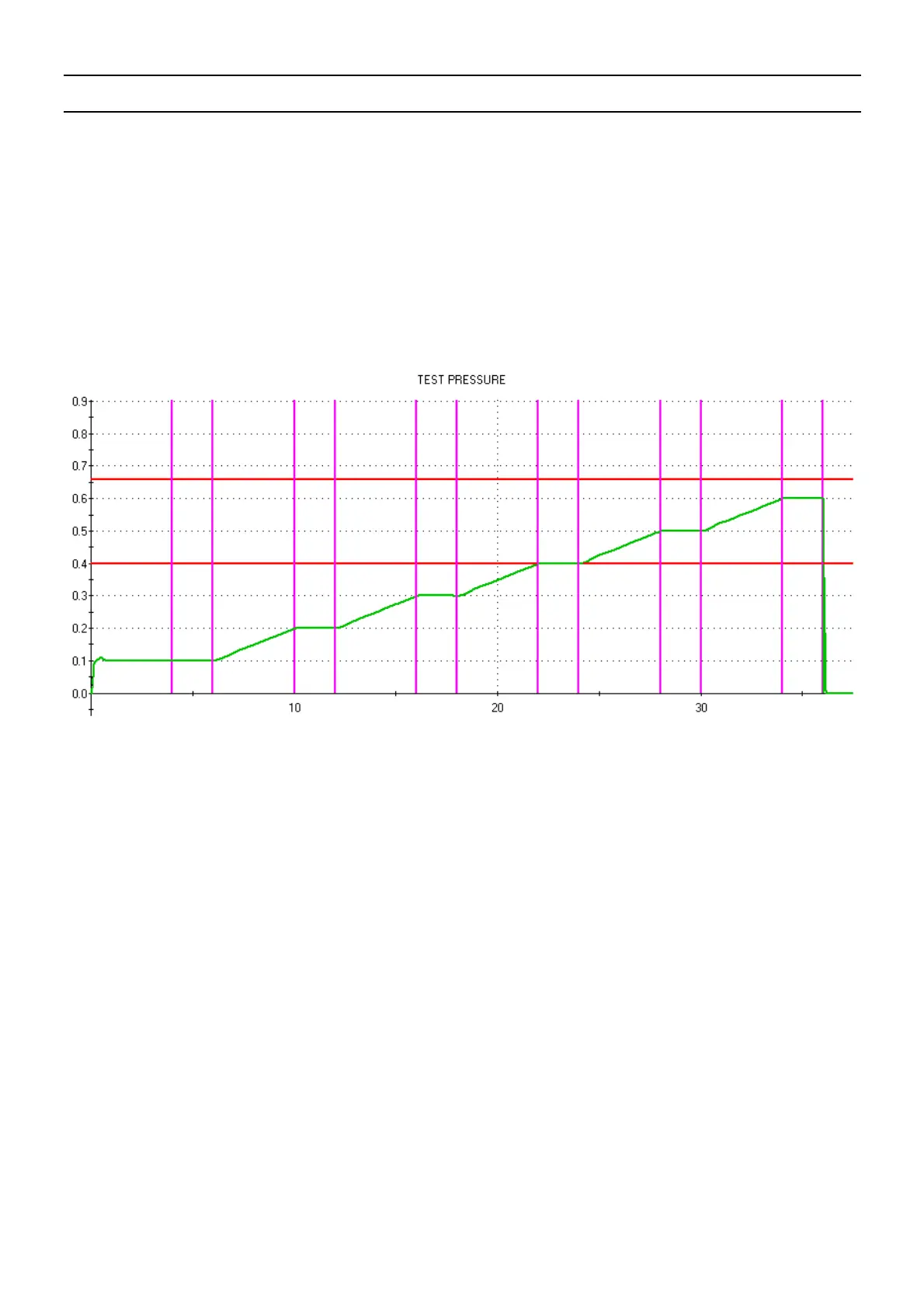

Example:
The above burst test is configured with:
¾ Ramp with 6 steps.
¾ Rise time: 4 seconds.
¾ Step Time: 2 seconds.
