Chapter 4: AC Drive Parameters

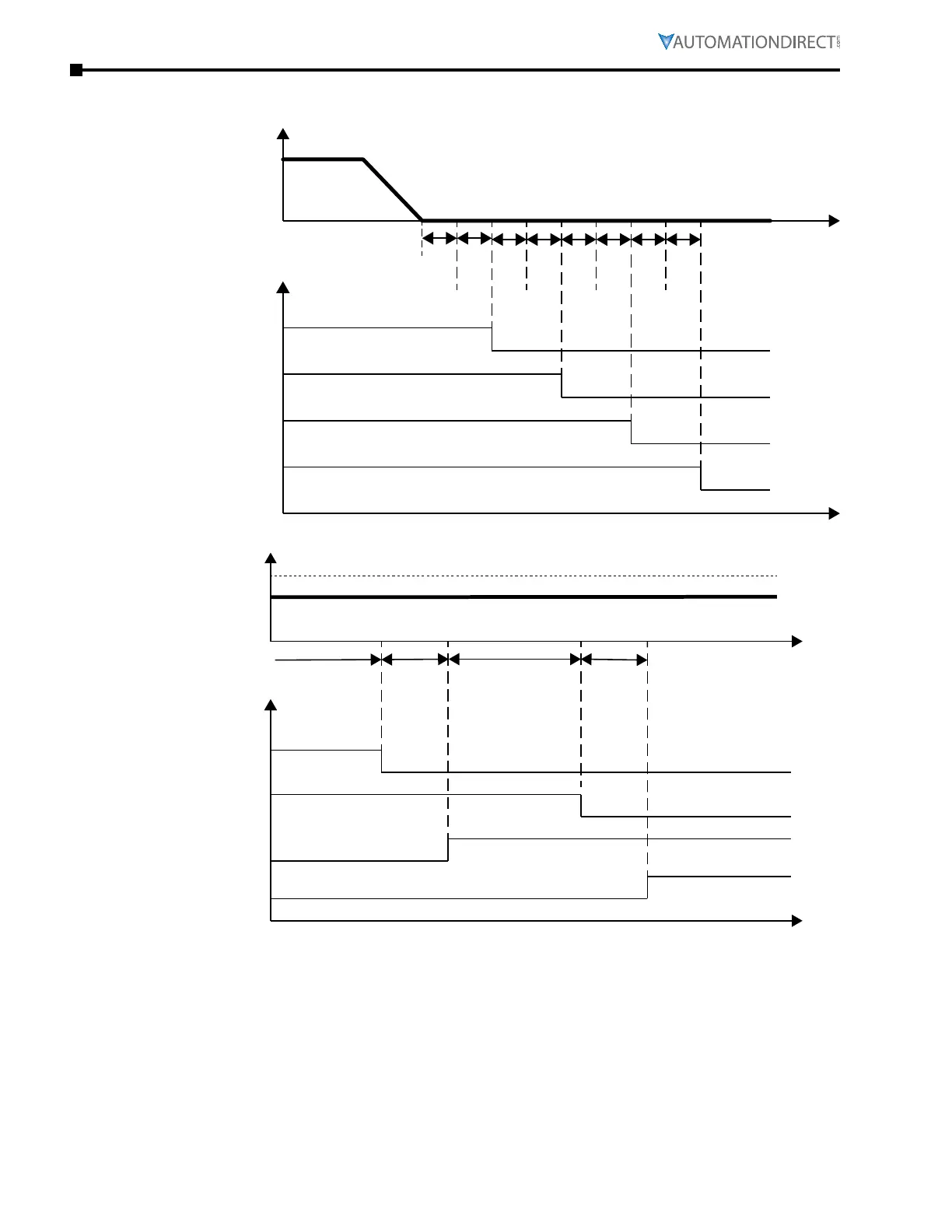

(tiMing chart P10.00 = 5: tiMe circulation + quantity control (continued))
decreasing deMand
P10-05 P10-04 P10-05 P10-04 P10-05 P10-04 P10-05 P10-04
MOTOR 1 ON AC LINE POWER
MOTOR 2 ON AC LINE POWER
MOTOR 3 ON AC LINE POWER
MOTOR 4 ON AC LINE POWER
P10-08
FREQ.
GS4-RELA
Y OUTPUT
R1O
R2O
RO10
RO11
Motor 0 on GS4 AC Drive Power
tiMe circulation + quantity control
MOTOR 1 ON
AC LINE POWER
MOTOR 2 ON
AC LINE POWER
MOTOR 3 ON
AC LINE POWER
MOTOR 4 ON
AC LINE POWER
P10-06
FREQ.
GS4 OUTPUT
RELAY
R1O
R2O
RO10
RO11
P10.03P10.02 P10.02 P10.03
