NEXRAD COMPOSITE REFLECTIVITY (USA AND CANADA)

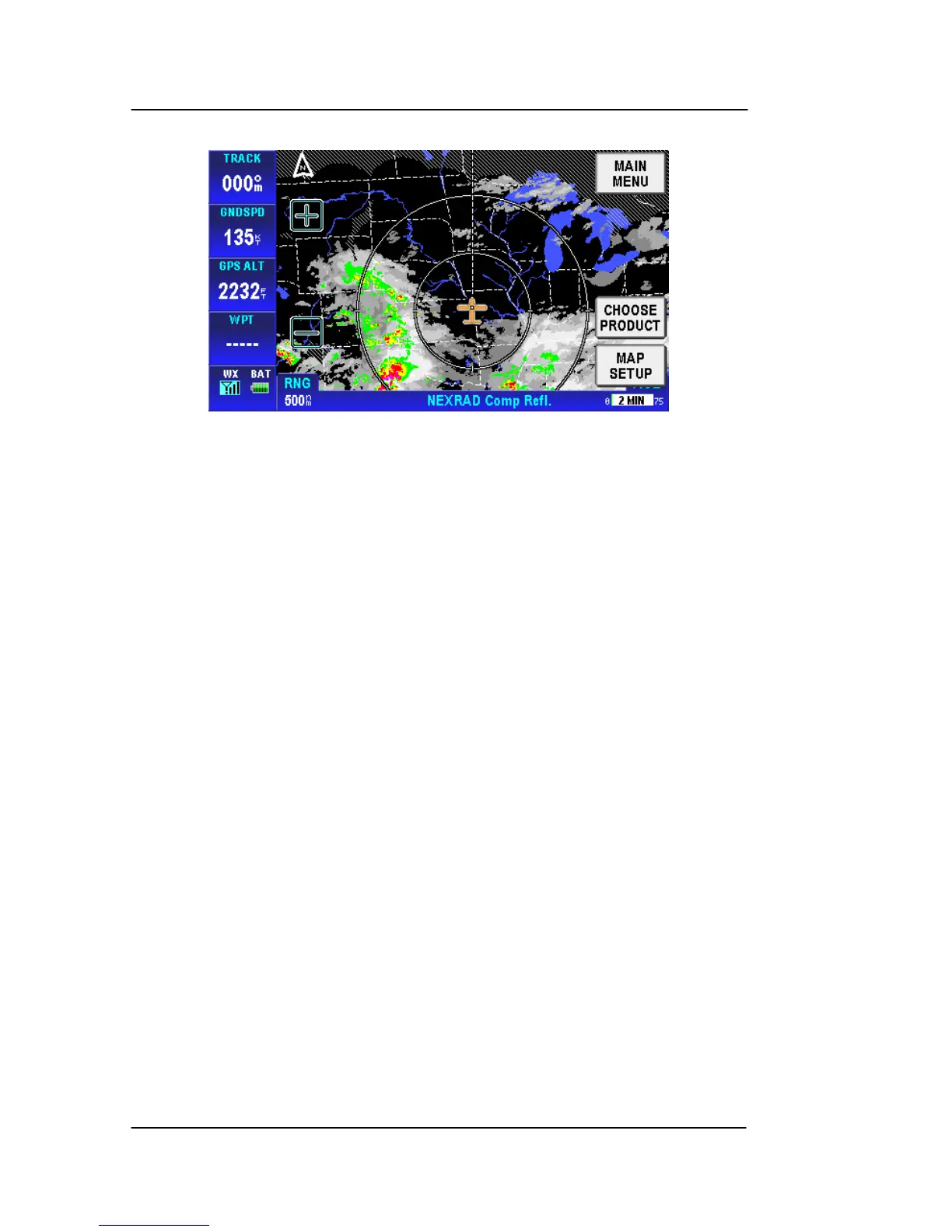

Figure 2-122: WX – NEXRAD with Cloud and Coverage Overlay
The NEXRAD Composite Reflectivity page can show different
products overlaid on the map if configured. The available overlays
are: Flight Plan, Traffic, Flight Log Trail, METAR, TFR, Lightning,
NEXRAD coverage, Cloud Top and Storm Cell.
All of these products may not be initially available when the XM
Weather receiver is first turned on. Assuming good signal strength a
complete set of XM weather data will be received every 12 minutes,
therefore, the initial data displayed will be dependent upon where in
that 12 minute cycle the data was received.
NEXRAD Legend
Tap on the Map to
show the LEGEND soft key. Tap the LEGEND
soft key to show the NEXRAD Legend window on the page.
