Honeywell Bendix/King AV8OR Handheld User’s Guide
D200803000008 Weather Function
Rev 5 Mar 2012 Page 2-97
© Honeywell International Inc. Do not copy without express permission of Honeywell
Tap on the LEGEND soft key to display the Graphical PIREP
Legend Window.

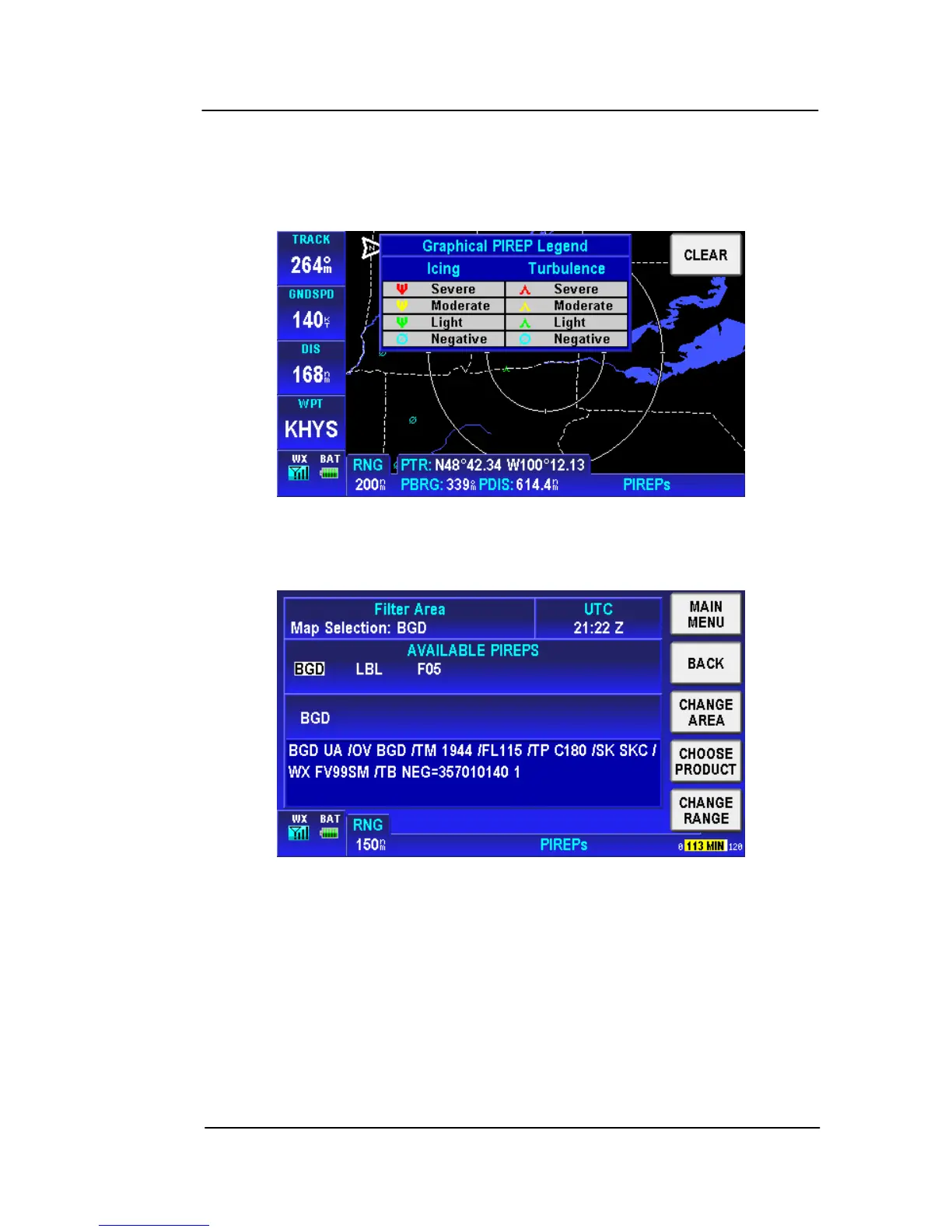

Figure 2-134: WX – Graphical PIREPs Legend
Tap on the MORE INFO soft key to display the text PIREP page.
Figure 2-135: WX – Text PIREPs
GRAPHICAL AIRMETS (USA ONLY)
Tap on the CHOOSE PRODUCT soft ke
y on the Weather Main page
and select Graphical AIRMETs from the SELECT WX PRODUCT
box.
The graphical AIRMET is derived from the location description (if
provided) in the textual AIRMET and displayed as a boundary box
